Controls & Control Boards

Manaras BOARD070ER Control board – Replacement control board (no monitoring)

Model BOARD070ER · Manaras

Electronic control board for Manaras operators.

• Replacement control board (no monitoring)

Manaras BOARD070MR Control board – Replacement control board (monitoring)

Model BOARD070MR · Manaras

Electronic control board for Manaras operators.

• Replacement control board (monitoring)

Manaras ECB BOARD070E Non-Monitored Electronic Control Board

Model BOARD070E · Manaras

Non-monitored version of the BOARD070 control board. It has the same logic features but no entrapment-device monitoring.

• No monitoring function
• Certified CSA C22.2-247.92; compliant to UL325 5th Ed. prior to the August 2010 revision
• 24 VDC relaying circuit, 40 VA Class II transformer; non-volatile memory
• Delay on reverse, max run timer, mid-stop, timer-to-close
• Replacement board: BOARD070ER

Manaras ECB BOARD070M Monitored Electronic Control Board

Model BOARD070M · Manaras

Standard Opera electronic control board in its monitored version. It supervises primary external entrapment devices for UL325 compliance and has a built-in radio receiver.

• Monitors primary external entrapment protection devices (photo eyes, edges); ships with monitored photo eyes
• Factory-installed rolling-code radio receiver
• 24 VDC relaying circuit, 40 VA Class II transformer; non-volatile memory
• 1.5 s delay on reverse; programmable max run timer, mid-stop and timer-to-close
• Advance close system, reverse-wiring detection, door-lock sensor
• Operating modes C2, B2, D1, E2, T or TS
• 2 A fused 24 VAC/24 VDC accessory output
• MIC001 Wi-Fi kit is supplied with a BOARD070M

Manaras BOARD065 Control board – Replacement universal board kit BOARD060 & prev

Model BOARD065 · Manaras

Electronic control board for Manaras operators.

• Replacement universal board kit BOARD060 & prev

Manaras BOARD066R Control board – Replacement universal power board BOARD070 & prev

Model BOARD066R · Manaras

Electronic control board for Manaras operators.

• Replacement universal power board BOARD070 & prev

Manaras BOARD070MRSH12R Control board – Replacement control board RSH/RMSJ/RTBH 12V

Model BOARD070MRSH12R · Manaras

Electronic control board for Manaras operators.

• Replacement control board RSH/RMSJ/RTBH 12V

Manaras BOARD070MRSH24R Control board – Replacement control board RSH/RMSJ/RTBH 24V

Model BOARD070MRSH24R · Manaras

Electronic control board for Manaras operators.

• Replacement control board RSH/RMSJ/RTBH 24V

Manaras BOARD070MRVH12R Control board – Replacement control board RVH 12V

Model BOARD070MRVH12R · Manaras

Electronic control board for Manaras operators.

• Replacement control board RVH 12V

Manaras BOARD070MRVH24R Control board – Replacement control board RVH 24V

Model BOARD070MRVH24R · Manaras

Electronic control board for Manaras operators.

• Replacement control board RVH 24V

Manaras BOARD075E Control board – Replacement board kit (no monitoring)

Model BOARD075E · Manaras

Electronic control board for Manaras operators.

• Replacement board kit (no monitoring)

Manaras BOARD075M Control board – Replacement board kit (monitoring)

Model BOARD075M · Manaras

Electronic control board for Manaras operators.

• Replacement board kit (monitoring)

Manaras PULLCORD001 Pull switch – Pull-switch control

Model PULLCORD001 · Manaras

Ceiling pull-cord switch for operating the door from a vehicle or the floor.

• Pull-switch control, exterior, cast iron encl, SPDT preconfigured to use N.O. contact
• Surface mount
• Pull switch control
• Exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure
• 1 SPST momentary NO contact
• Dimensions: 4'' W x 3.88'' H x 3.75'' D

Manaras PULLCORD002 Pull switch – Pull-switch control

Model PULLCORD002 · Manaras

Ceiling pull-cord switch for operating the door from a vehicle or the floor.

• Pull-switch control, exterior, cast iron encl, DPDT preconfigured to use N.O. contacts
• Surface mount
• Pull switch control
• Exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure
• 2 SPST momentary NO contacts
• Dimensions: 4'' W x 3.88'' H x 3.75'' D

Manaras PULLCORD003 Pull switch – Pull-switch control

Model PULLCORD003 · Manaras

Ceiling pull-cord switch for operating the door from a vehicle or the floor.

• Pull-switch control, swivel-type, exterior, cast iron encl, SPDT preconfigured to use N.O. contact
• Universal surface mount
• Pull switch control, swivel-type
• Exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure
• 1 SPST momentary NO and NC contact
• Dimensions: 4.25'' W x 6'' H x 4.5'' D

Manaras PULLCORD007 Pull switch – Pull-switch control

Model PULLCORD007 · Manaras

Ceiling pull-cord switch for operating the door from a vehicle or the floor.

• Pull-switch control, swivel-type, exterior, heated, SPST contact, universal mount
• Universal surface mount
• Pull switch control, swivel type, heated
• Exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure
• 1 SPST momentary NO and NC contact
• Heating Element: 24 V AC 15 W

Manaras STATION001 Push-button control station – Surface-mount, one button

Model STATION001 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one button, Nema 1 enclosure, 1 N.O. contact
• Surface mount
• 1-button: Open or open / close command
• 1 NO contact
• Nema 1 enclosure
• Interior use
• Materials: Steel
• Dimensions: 2.38'' W x 2.78'' H x 1.81''

Manaras STATION010 Push-button control station – Surface-mount, two button

Model STATION010 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, two button, Nema 1 enclosure, 2 N.O. contacts
• Surface mount
• 2-button: Open only and close only command
• 2 NO contacts
• Nema 1 enclosure
• Interior use
• Materials: Steel
• Dimensions: 2.38'' W x 4.06'' H x 1.81'' D

Manaras STATION020 Push-button control station – Surface-mount, three button

Model STATION020 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button, Nema 1 enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Nema 1 enclosure
• Interior use
• Materials: Steel
• Dimensions: 2.38'' W x 5'' H x 1.81'' D

Manaras STATION049 Push-button control station – Surface-mount, three button

Model STATION049 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button, CSA certified/UL listed classified hazardous locations (2), 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Class I, Div. 1 and 2, Groups C, D Class I, Zones 1 and 2, Groups IIB, IIA Class II, Div. 1 and 2, Groups E, F, G Class III, Nema 7 (C, D) / 9 (E, F, G) for classified hazardous locations
• CSA certified / UL listed
• Materials: Aluminum die-cast
• Operation Temperature: -50°C to 40°C (-58°F to 104°F)

Manaras STATION050 Push-button control station – Surface-mount, three button with key lock-out

Model STATION050 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button with key lock-out, CSA certified/UL listed classified hazardous locations (2), 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command, key lock-out
• 2 NO and 1 NC (stop) contacts, 1 NO and 1 NC contacts (key)
• Class I, Div. 1 and 2, Groups C, D Class I, Zones 1 and 2, Groups IIB, IIA Class II, Div. 1 and 2, Groups E, F, G Class III, Nema 7 (C, D) / 9 (E, F, G) for classified hazardous locations
• CSA certified / UL listed
• Materials: Aluminum die-cast
• Operation Temperature: -50°C to 40°C (-58°F to 104°F)

Manaras STATION056 Push-button control station – Surface-mount, three button

Model STATION056 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button, Nema 3R, 4,12 enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Nema 3R, 4, 12 enclosure
• Interior / exterior use
• Materials: Aluminum die-cast
• Dimensions: 4.2" W x 4.4'' H x 3.25'' D

Manaras STATION057 Push-button control station – Surface-mount, three button with key lock-out

Model STATION057 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button with key lock-out, Nema 3R, 4,13 enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command, key lock-out
• 2 NO and 1 NC (stop) contacts, NC contact for the key (in series with the NC contact for stop)
• Nema 3R, 4, 12 enclosure
• Interior / exterior use
• Materials: Aluminum die-cast
• Dimensions: 4.2'' W x 4.4'' H x 3.25'' D (without key)

Manaras STATION070 Push-button control station – Surface-mount, one mushroom head (green)

Model STATION070 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one mushroom head (green), Nema 4/12 & Nema 4X enclosure, spring return, 1 N.O. contact
• Surface mount
• 1-button: Open only or open / close command, mushroom head (green, 40mm) with spring return
• 1 NO contact
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Manaras STATION078 Push-button control station – Surface-mount, three button

Model STATION078 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button, Nema 4/12 & Nema 4X enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Dimensions: 2.68'' W x 5.35'' H x 2.44'' D

Manaras STATION079 Push-button control station – Surface-mount, three button with key lock-out

Model STATION079 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button with key lock-out, Nema 4/12 & Nema 4X enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command, key lock-out
• 2 NO and 1 NC (stop) contacts, 1 NO contact (key)
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Manaras STATION080 Push-button control station – Surface-mount, three button with key lock-out and pilot light

Model STATION080 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button with key lock-out and pilot light, Nema 4/12 & Nema 4X enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command, key lock-out and red pilot light
• 2 NO and 1 NC (stop) contacts, 1 NO contact (key)
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Manaras STATION081 Push-button control station – Surface-mount, one button

Model STATION081 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one button, Nema 4/12 & Nema 4X enclosure, 1 N.O. contact
• Surface mount
• 1-button: Open or open / close command
• 1 NO contact
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate D ■ Dimensions: 2.68'' W x 2.68'' H x 2.44'' D
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Manaras STATION082 Push-button control station – Surface-mount, two button

Model STATION082 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, two button, Nema 4/12 & Nema 4X enclosure, 2 N.O. contacts
• Surface mount
• 2-button: Open only and close only command
• 2 NO contacts
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Dimensions: 2.68'' W x 4.17'' H x 2.44'' D

Manaras STATION085A Push-button control station – Surface-mount, one mushroom head (red) emergency-stop

Model STATION085A · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one mushroom head (red) emergency-stop, twist and lock, Nema 4/12 & Nema 4X enclosure,1 N.C. contact
• Surface mount
• 1-button: Emergency-stop, mushroom head (red, 40mm), push / twist to unlock
• 1 NC contact
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Manaras STATION086 Push-button control station – Flush-mount, three button

Model STATION086 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Flush-mount, three button, Nema 1 enclosure, back box with bracket, 2 N.O. contacts and 1 N.C. contact for stop
• Flush mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Nema 1 enclosure
• Interior use
• Materials: Steel (enclosure), aluminum (face plate)
• Dimensions (faceplate): 2.75'' W x 4.5'' H x 0.38'' D

Manaras STATION085B Push-button control station – Surface-mount, one mushroom head (red) emergency-stop

Model STATION085B · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one mushroom head (red) emergency-stop,push / pull, Nema 4/12 & Nema 4X enclosure,1 N.C. contact

Manaras KEY006 Replacement key – Replacement key for STATION079/080

Model KEY006 · Manaras

Replacement key for Manaras key switches and stations.

• Replacement key for STATION079/080, KEYSWITCH050, set of two
• Replacement keys (2x)
• Compatible with: STATION079, STATION080, KEYSWITCH050

Manaras KEYSWITCH006 Key switch – Replacement cylinder (for KEYSWITCH034)

Model KEYSWITCH006 · Manaras

Keyed switch for restricting door operation to key holders.

• Replacement cylinder (for KEYSWITCH034)
• Replacement cylinder
• Includes: Replacement cylinder, 2 keys
• Compatible with: KEYSWITCH034

Manaras KEYSWITCH010 Key switch – Single key, open / close

Model KEYSWITCH010 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, open / close, Nema 1 encl, interior, flush mount, center return, tamper-proof
• Flush mount
• Function: Open / close / stop with automatic return to stop position
• 2 SPDT NO and NC (open / close) contacts
• Tamper-proof
• Interior use
• Nema 1 enclosure
• Materials: Steel enclosure

Manaras KEYSWITCH015 Key switch – Single key, open / close

Model KEYSWITCH015 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, open / close, exterior, cast iron encl, surface mount, center return, tamper-proof
• Surface mount
• Function: Open / close / stop with automatic return to stop position
• 2 SPDT NO and NC (open / close) contacts
• Tamper-proof
• Interior / exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure and face plate

Manaras KEYSWITCH017 Key switch – Single key, 2-positions on / off

Model KEYSWITCH017 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, 2-positions on / off, exterior, cast iron encl, surface mount, center return, tamper-proof
• Surface mount
• Locking feature
• 1 SPDT NO and NC contact
• 2 stable positions
• Interior / exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure and face plate

Manaras KEYSWITCH019 Key switch – Single key, open / close with stop button

Model KEYSWITCH019 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, open / close with stop button, exterior, aluminum die-cast encl, surface mount
• Surface mount
• Function: Open / close / stop with automatic return to stop position + stop button
• 2 SPDT NO and NC (open / close) contacts, 1 NC contact (stop)
• Tamper-proof
• Interior / exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure and face plate

Manaras KEYSWITCH023 Key switch – Replacement switch

Model KEYSWITCH023 · Manaras

Keyed switch for restricting door operation to key holders.

• Replacement switch, SPST momentary N.O. contact, 6A at 125VAC, 3A at 250VAC (for KEYSWITCH034)
• Replacement switch
• 1 SPST momentary NO contact
• Compatible with: KEYSWITCH034

Manaras KEYSWITCH034 Key switch – Single key, open / close

Model KEYSWITCH034 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, open / close, N4 encl, 1 momentary N.O. contact, exterior, aluminum die-cast encl, wall, post, pipe or pedestal mount
• Wall, surface or pedestal mount
• Locking feature
• 1 SPDT NO contact
• Tamper-proof
• Interior / exterior use
• Materials: Aluminum die-cast
• Dimensions: 2.75'' W x 4.5'' H x 2'' D (without key)

Manaras KEYSWITCH041 Key switch – Replacement switch

Model KEYSWITCH041 · Manaras

Keyed switch for restricting door operation to key holders.

• Replacement switch, SPDT momentary N.C. contact (for KEYSWITCH034)
• Replacement switch
• 1 SPST momentary NC contact
• Compatible with: KEYSWITCH034

Manaras KEYSWITCH050 Key switch – Single key, 2 positions on / off

Model KEYSWITCH050 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, 2 positions on / off, N4/12-4X encl, 1 N.O. contact, surface mount
• Surface mount
• Locking feature
• 1 SPDT NO contact
• 2 stable positions
• Interior / exterior use
• Nema 4/12 and 4X enclosure
• Materials: Polycarbonate

Manaras KEYSWITCH051 Key switch – Single key, hazardous location enclosure

Model KEYSWITCH051 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, hazardous location enclosure, 1 N.O. contact and 1 N.C. contact, surface mount, key removable in both positions
• Surface mount
• Locking feature
• 1 NO and 1 NC contacts
• Class I, Div. 1 and 2, Groups C, D Class I, Zones 1 and 2, Groups IIB, IIA Class II, Div. 1 and 2, Groups E, F, G Class III, Nema 7 (C, D) / 9 (E, F, G) for classified hazardous locations
• CSA certified / UL listed
• Materials: Aluminum die-cast
• Operation Temperature: -50°C to 40°C (-58°F to 104°F)

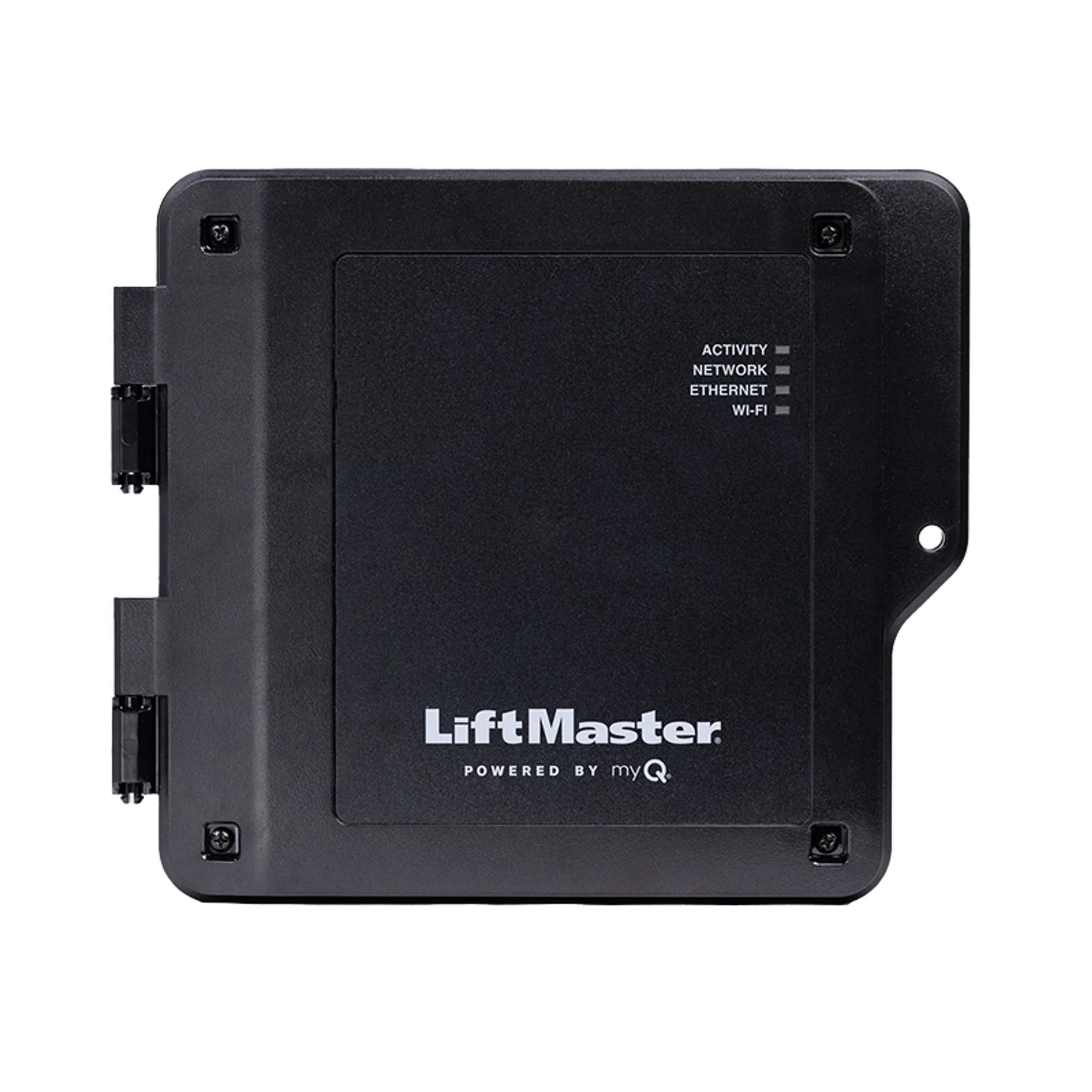

CAP4AP

Model CAP4AP · LiftMaster

Outdoor-rated, cloud-connected, Wi-Fi-enabled controller Configure either 2 Doors or 4 Access Points Outdoor rated enclosure with provision for a lock, no separate NEMA box required Real-time health indicators – LED stat

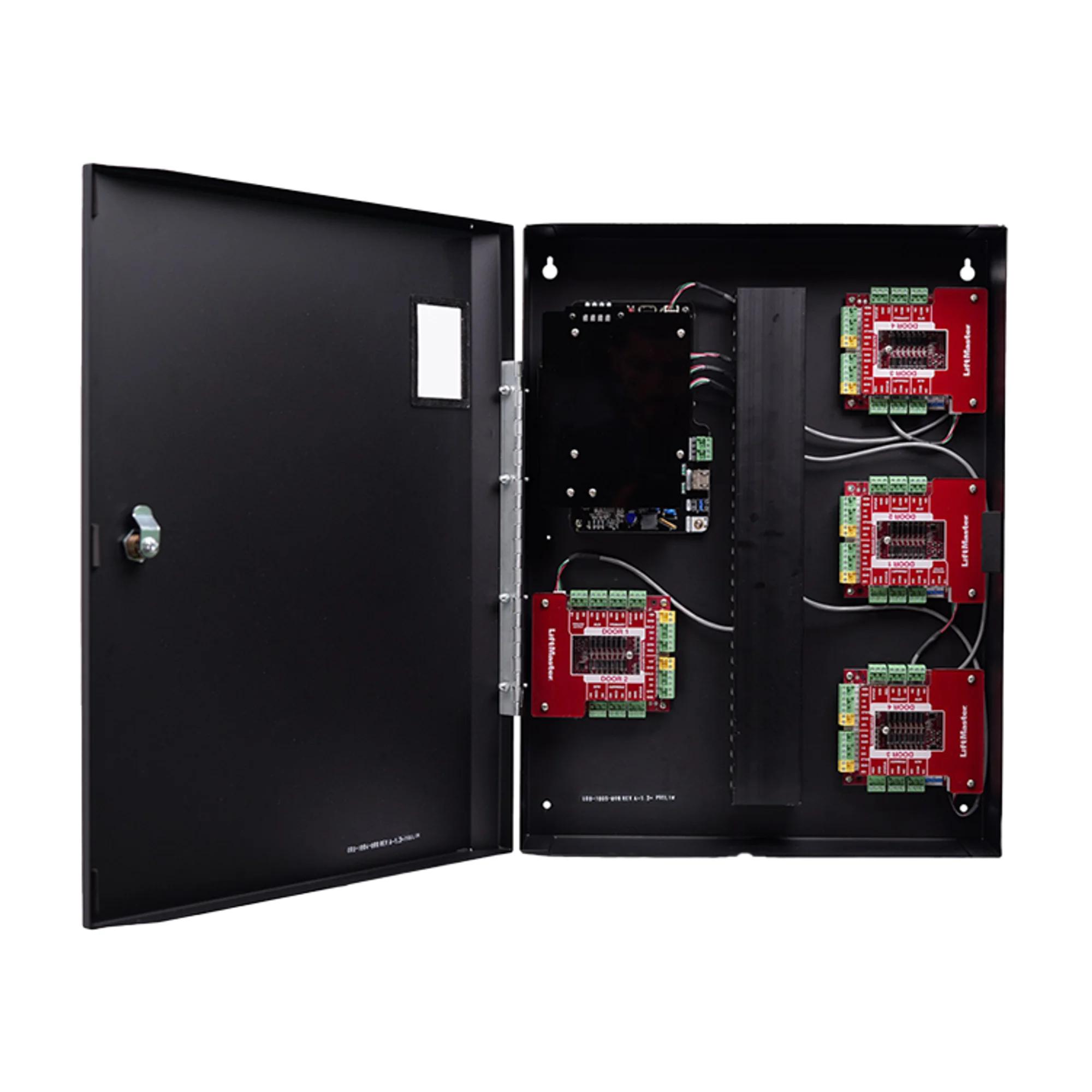

CAPXAP

Model CAPXAP · LiftMaster

Cloud-connected, Ethernet/Wi-Fi-enabled controller Configure either up to 8 Doors (Weigand) or 4 Doors (OSDP) or 16 Access Points Easily expand your system by daisy chaining control boards to support 16, 32, 48 or more r

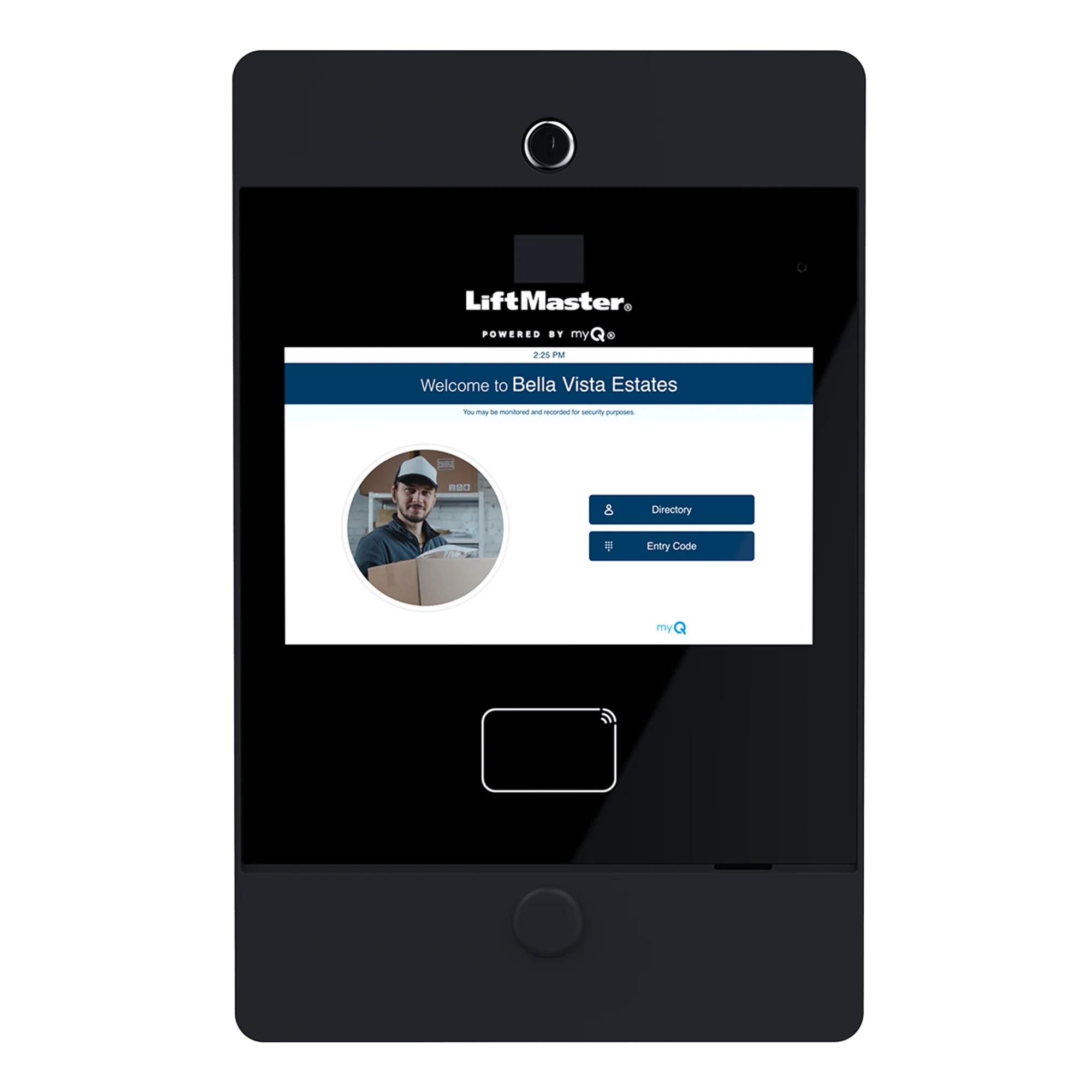

CAPXLV2 LiftMaster Smart Video Intercom - L

Model CAPXLV2MC · LiftMaster

Modern looking 10" Smart Video Intercom Designed for high-rise buildings and gated communities.

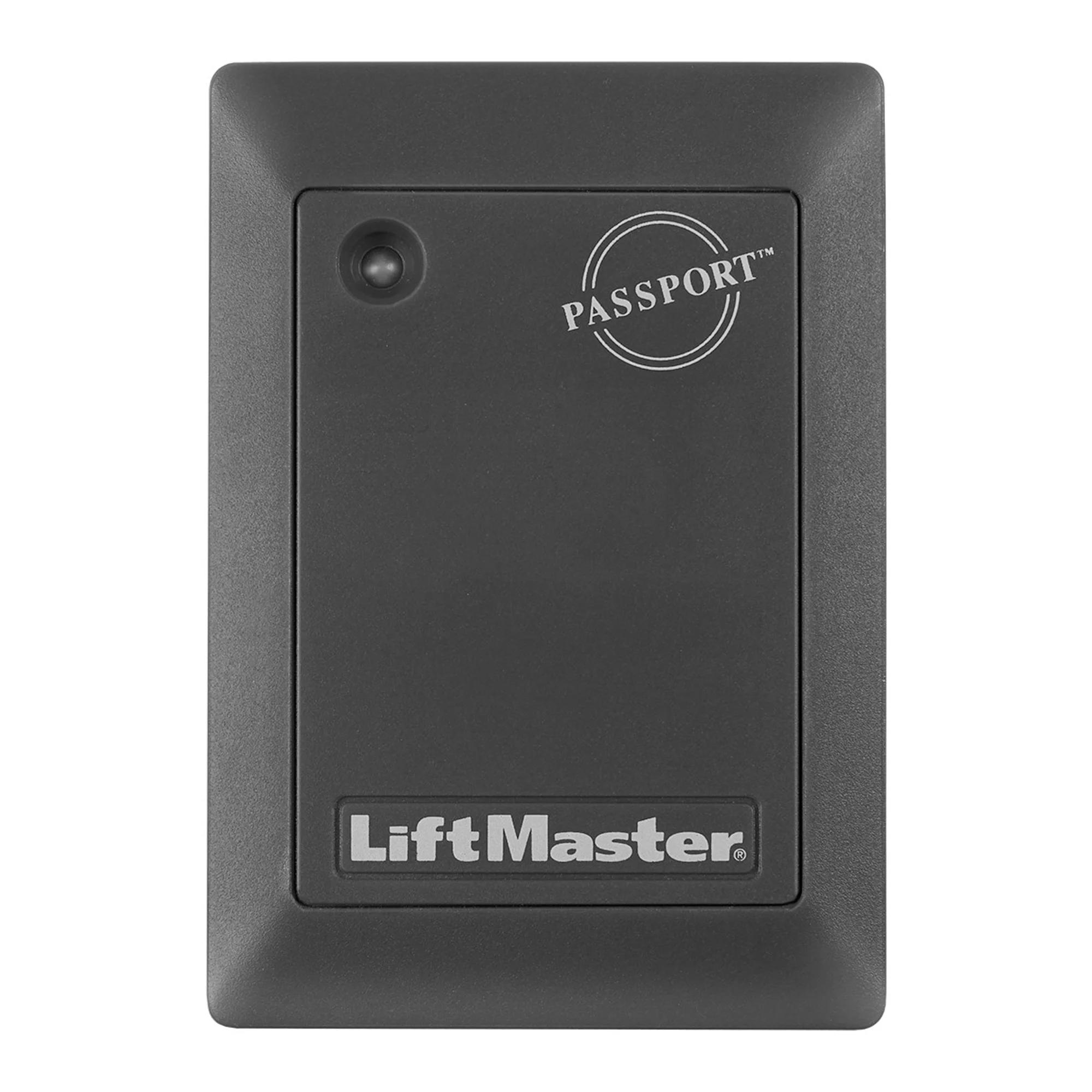

Passport Stand-Alone Proximity Reader

Model PPLX · LiftMaster

Entry level access control and security for small to medium businesses.

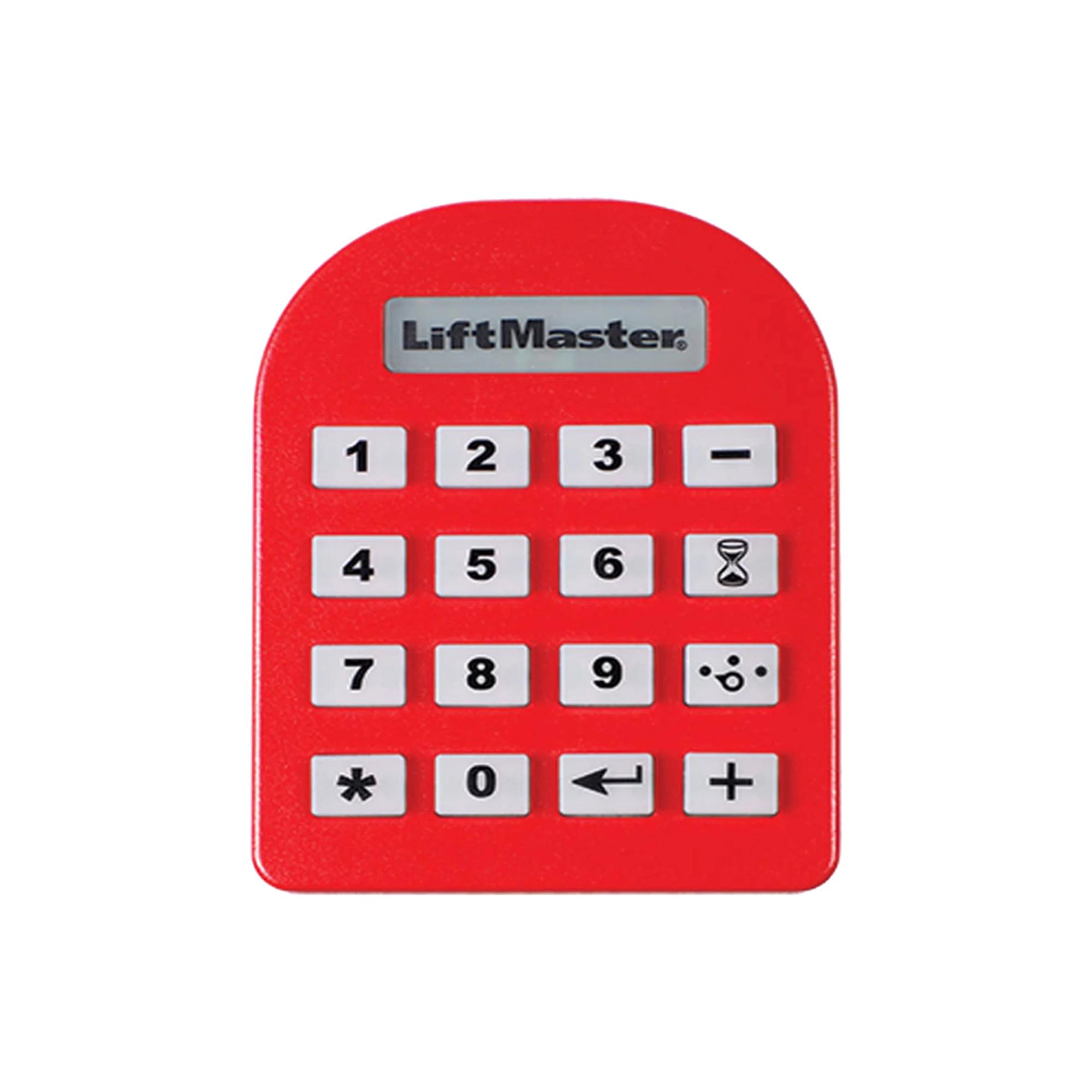

Passport™ Proximity Radio Programmer

Model PPRP · LiftMaster

Hand-held programmer to be used with the Passport™ Stand-Alone Proximity Card Reader (model PPLX).

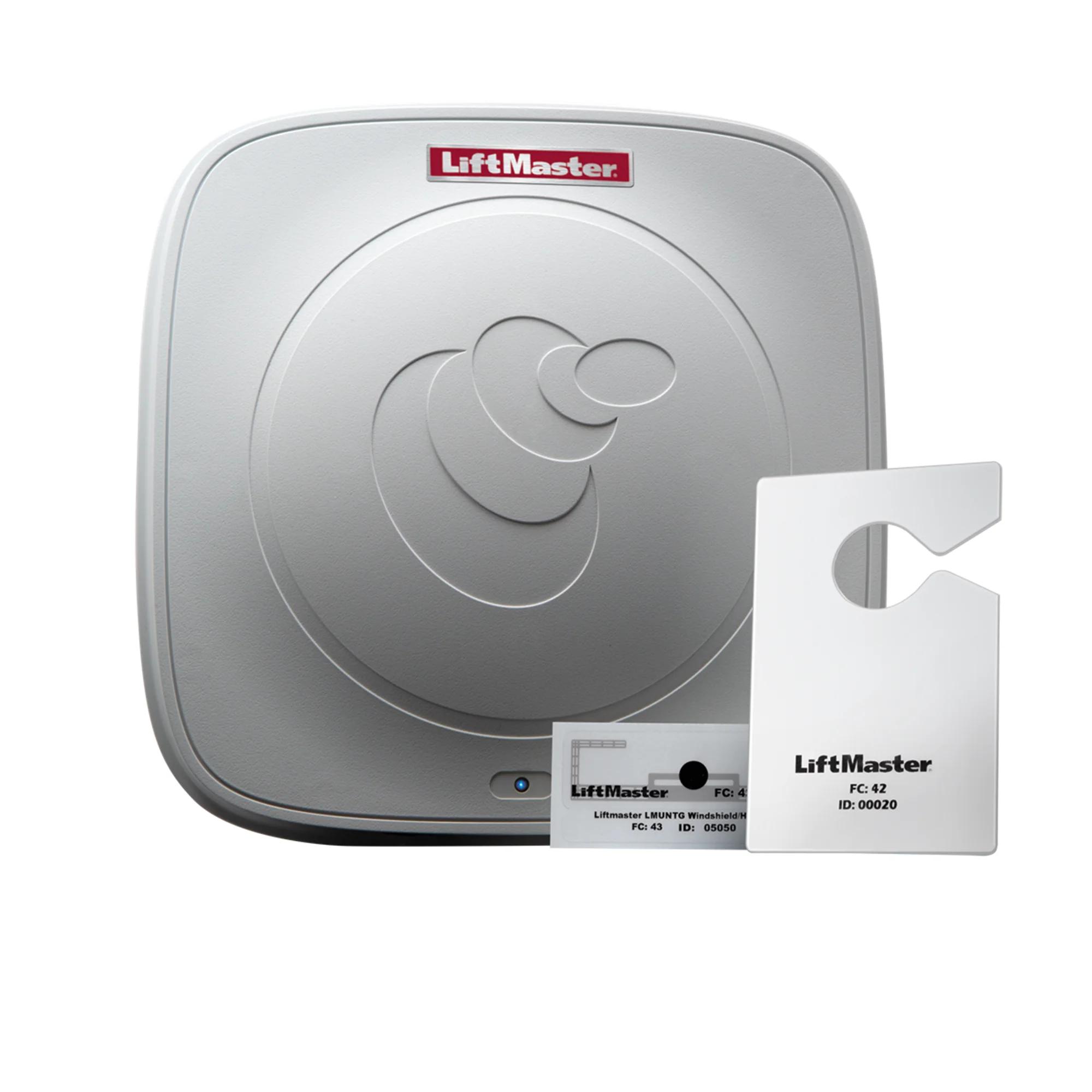

RFID Long-Range Reader

Model LMSC1000 · LiftMaster

All LiftMaster Proprietary RFID tags work exclusively with our RFID Reader.

• Dimensions: 10.25”W x 10.25”L x 1.25”D
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Wiegand Output Data Format: 26 Bit (D0, D1, GND)
• Compatible Code Format: 902-928 MHz
• Max Range: 20 - 30' (depending on tag placement)
• Power Supply: 120VAC, 60 Hz Supply
• Accessory Warranty: 1 year

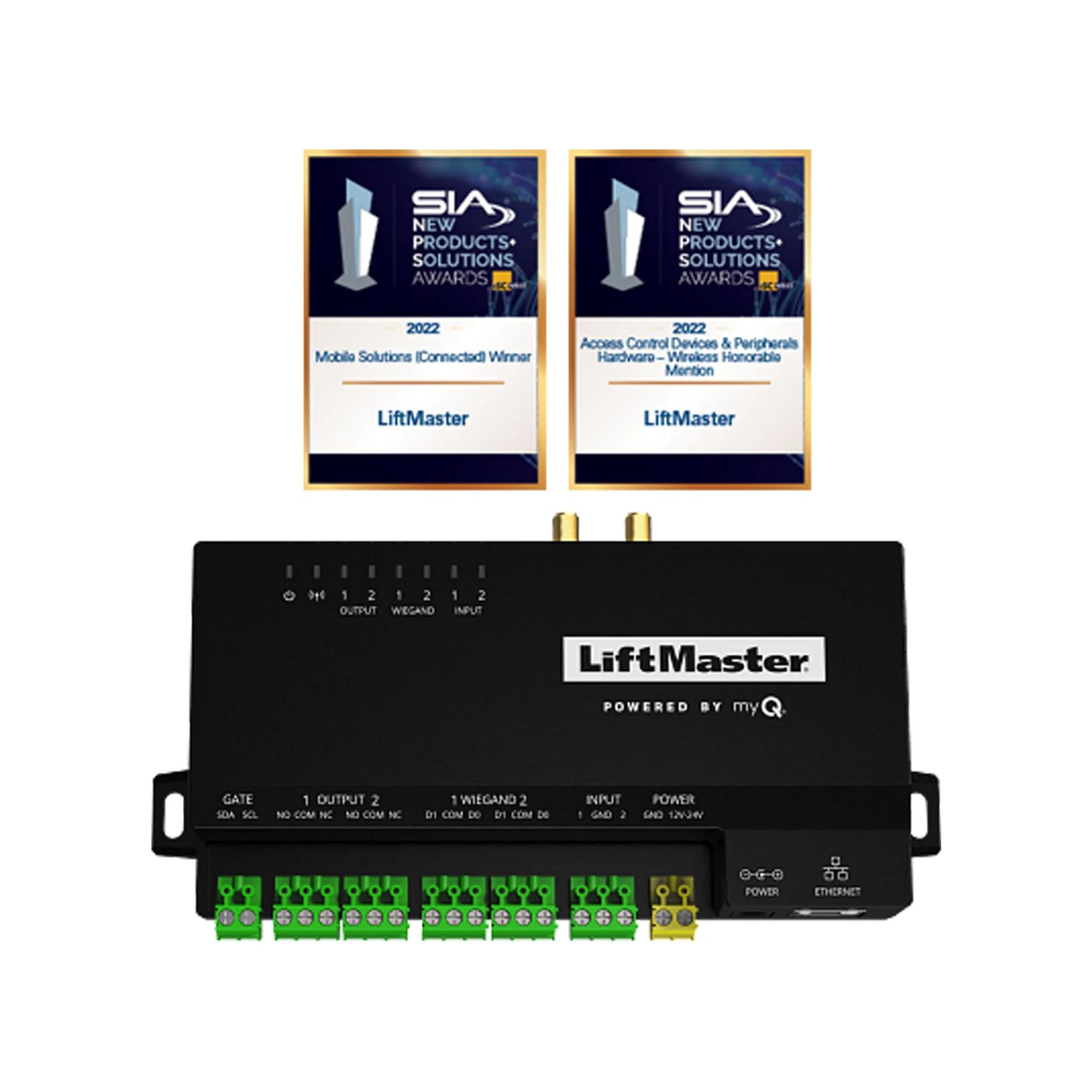

Smart Access Hub

Model CAPAC · LiftMaster

Provides communities an affordable cloud-based option to monitor and control access points without needing to upgrade the entire system.

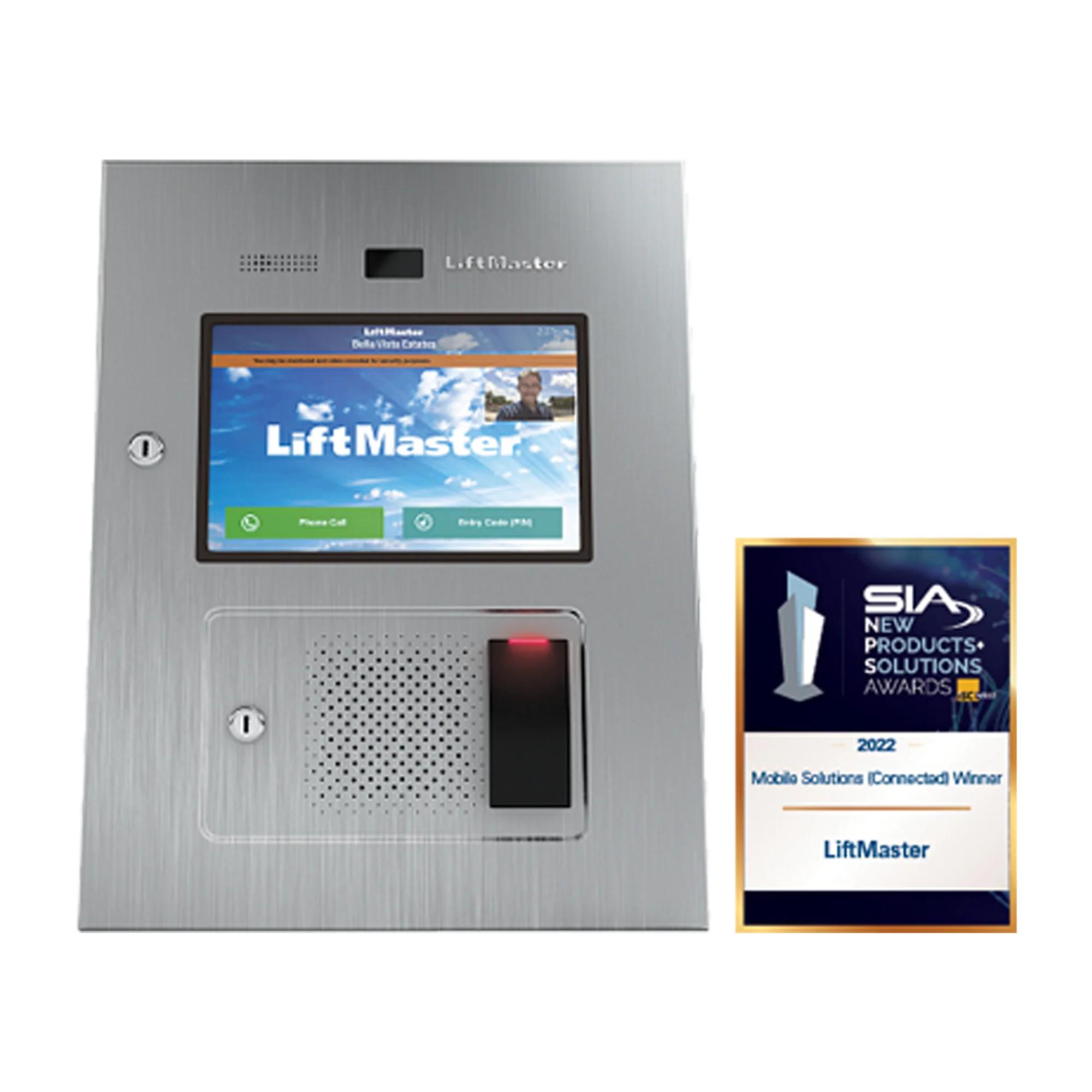

Smart Video Intercom – L

Model CAPXLVMC · LiftMaster

Make a great first impression with this scalable cloud-based smart access system..

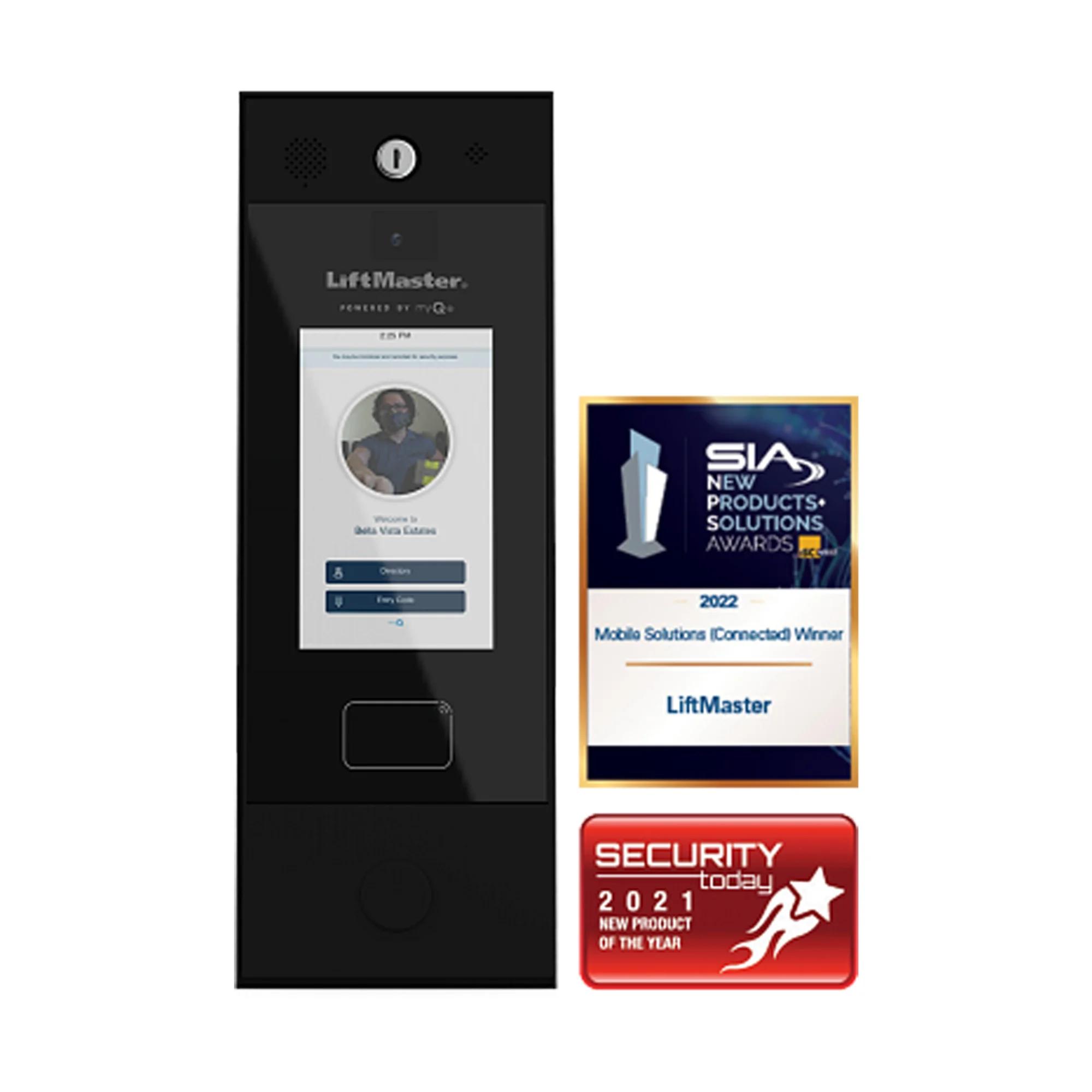

Smart Video Intercom – M

Model CAPXMMC · LiftMaster

Make a great first impression with this scalable cloud-based smart access system.

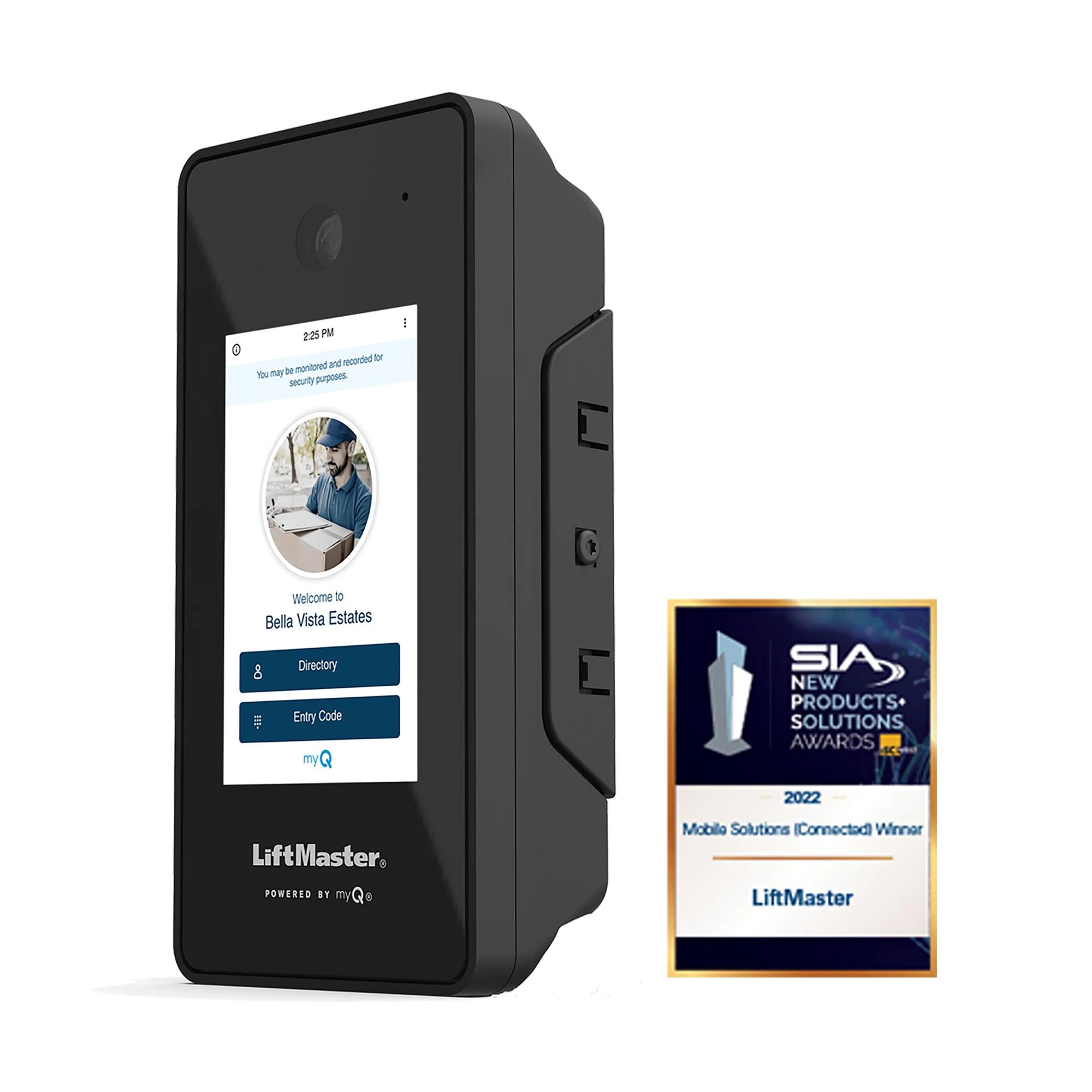

Smart Video Intercom – S

Model CAPXS · LiftMaster

Designed specifically for smaller multi-tenant buildings and single family homes with a gate.

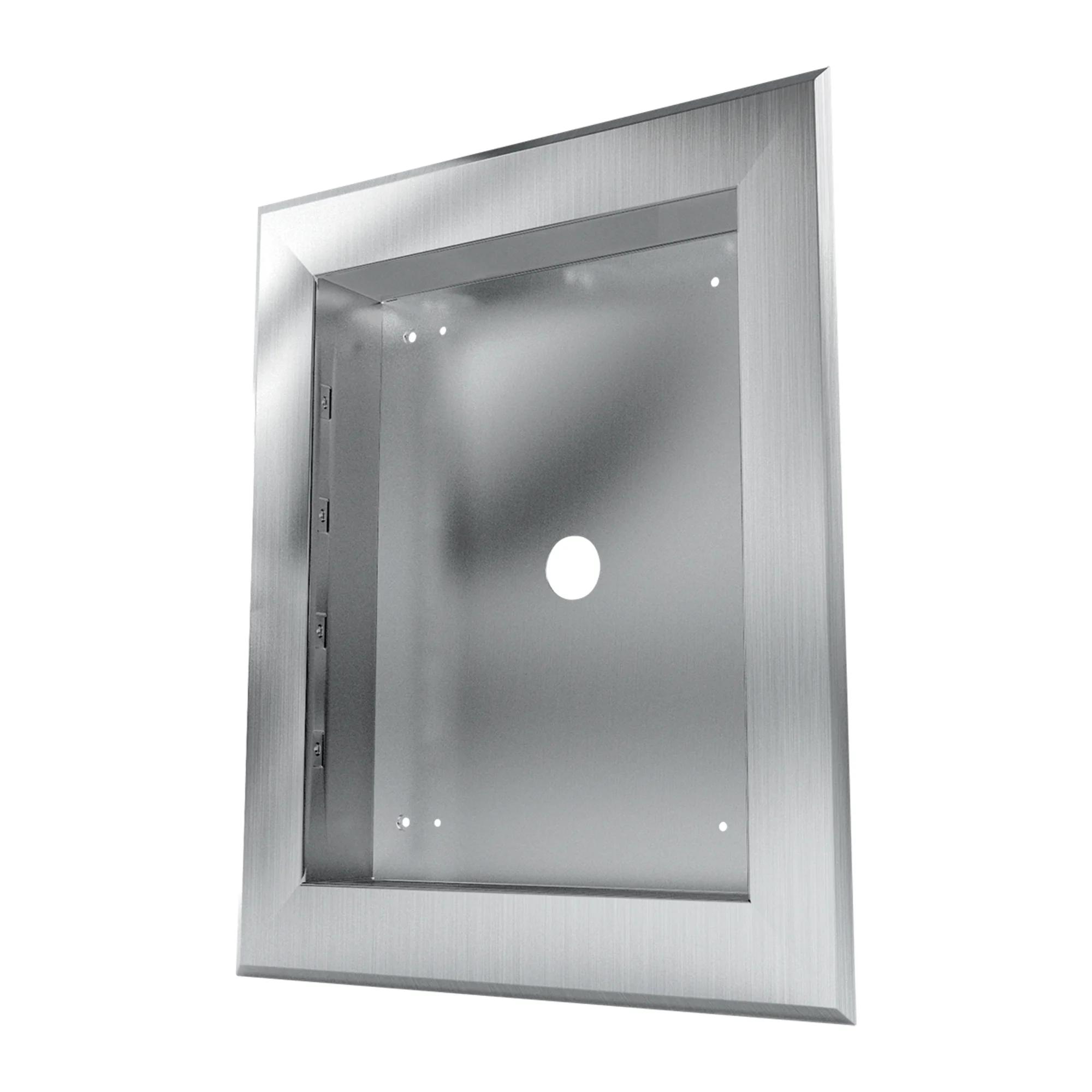

Trim Kit and Back Kit for CAPXL

Model CAPXLTK · LiftMaster

Ideal for flush mounting of a CAPXL system into a cutout of a wall or flat surface.

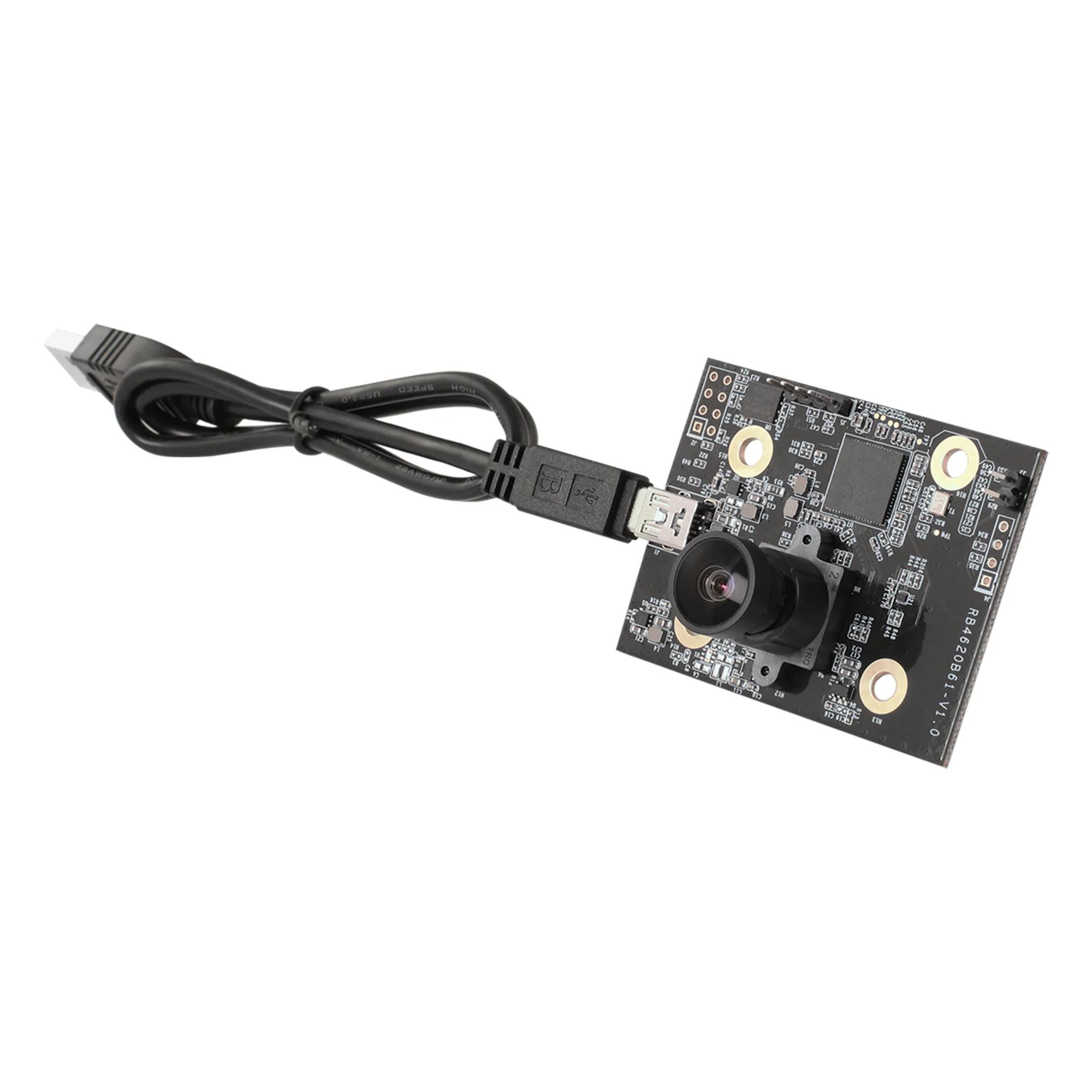

Video Camera Kit for CAPXL

Model CAPXLCAM · LiftMaster

Adds video functionality to your existing CAPXL system 1080p resolution with 135° view angle Easy to install USB Kit with cable and mounting bracket Video is stored locally and in the cloud

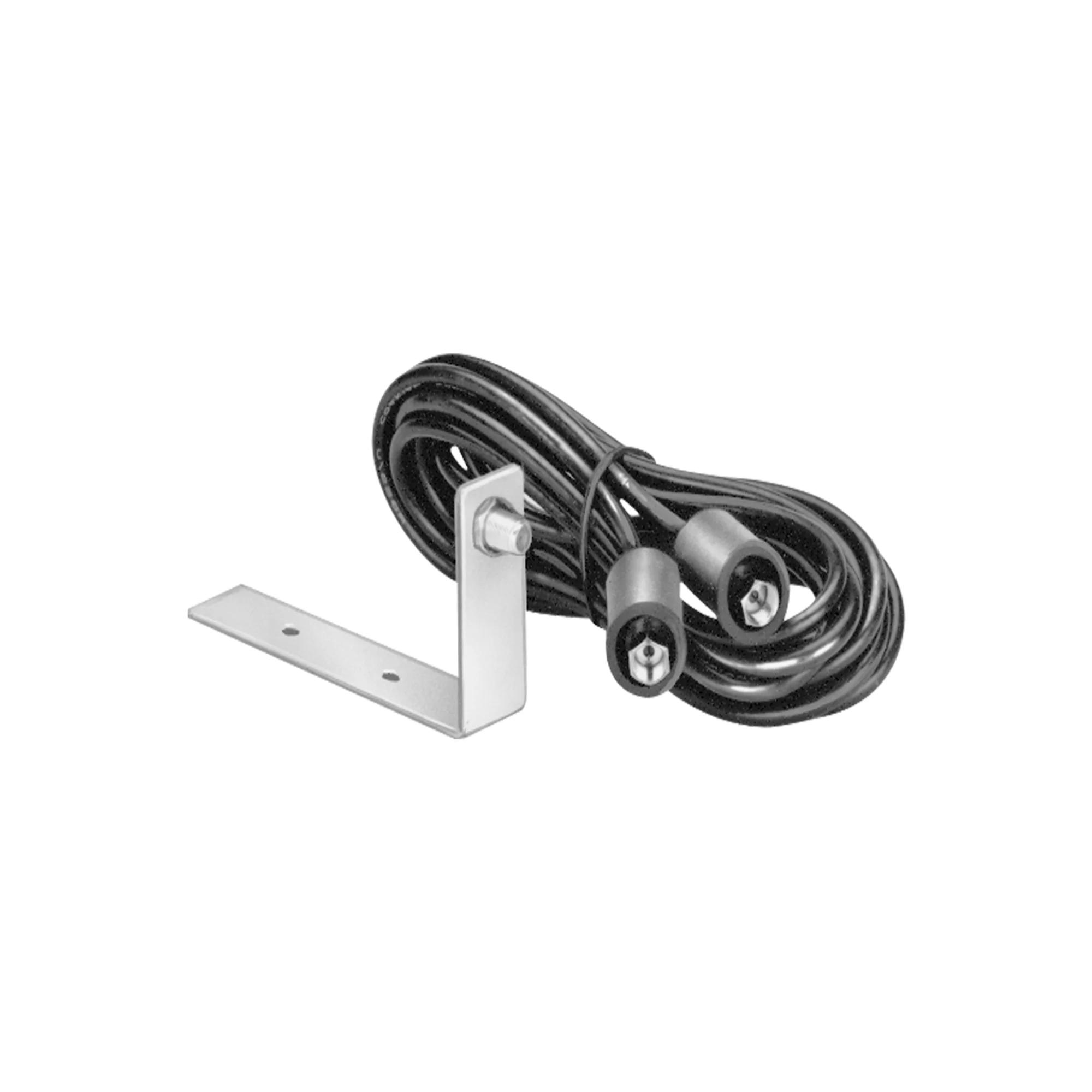

Wi-Fi® Antenna Extension Kit – 15’

Model WFAEXT · LiftMaster

For extended range and remote mounting for radios or Wi-Fi.

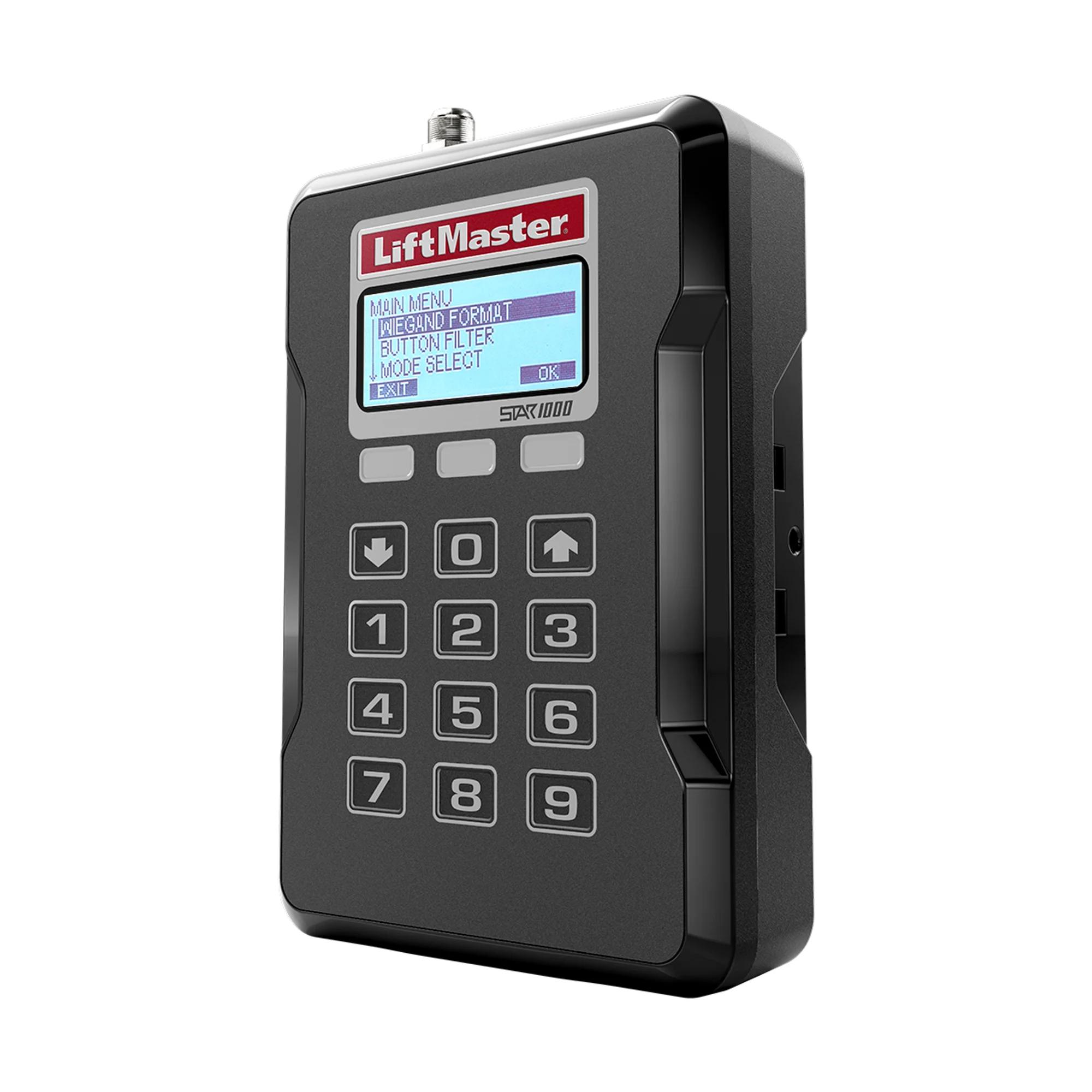

Commercial Receiver

Model STAR1000MC · LiftMaster

High-Capacity Gate and Commercial Door Operator Access Control.

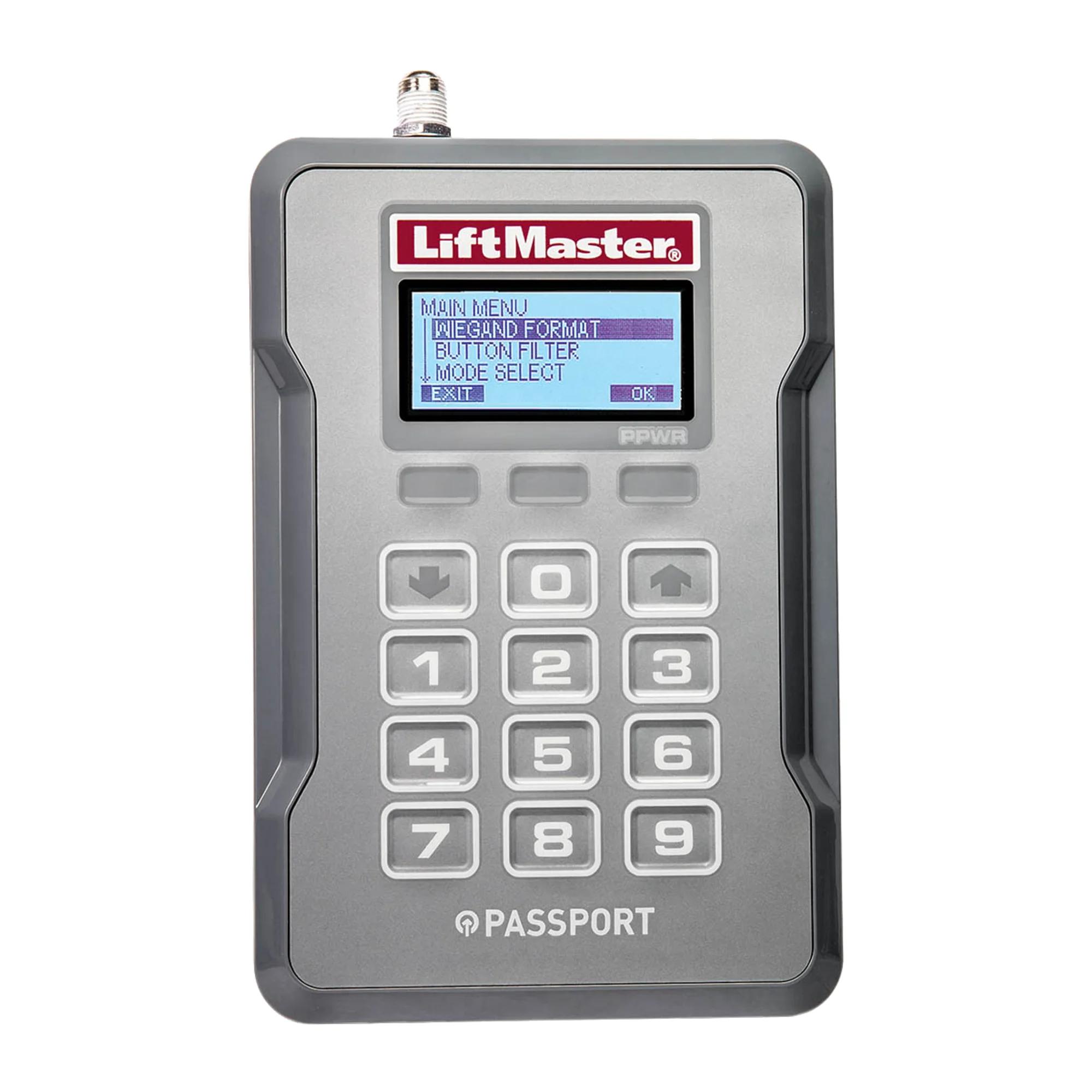

Credentialed Commercial Access Receiver

Model PPWRMC · LiftMaster

Credentialed Access Control For Gated Communities And Commercial Properties.

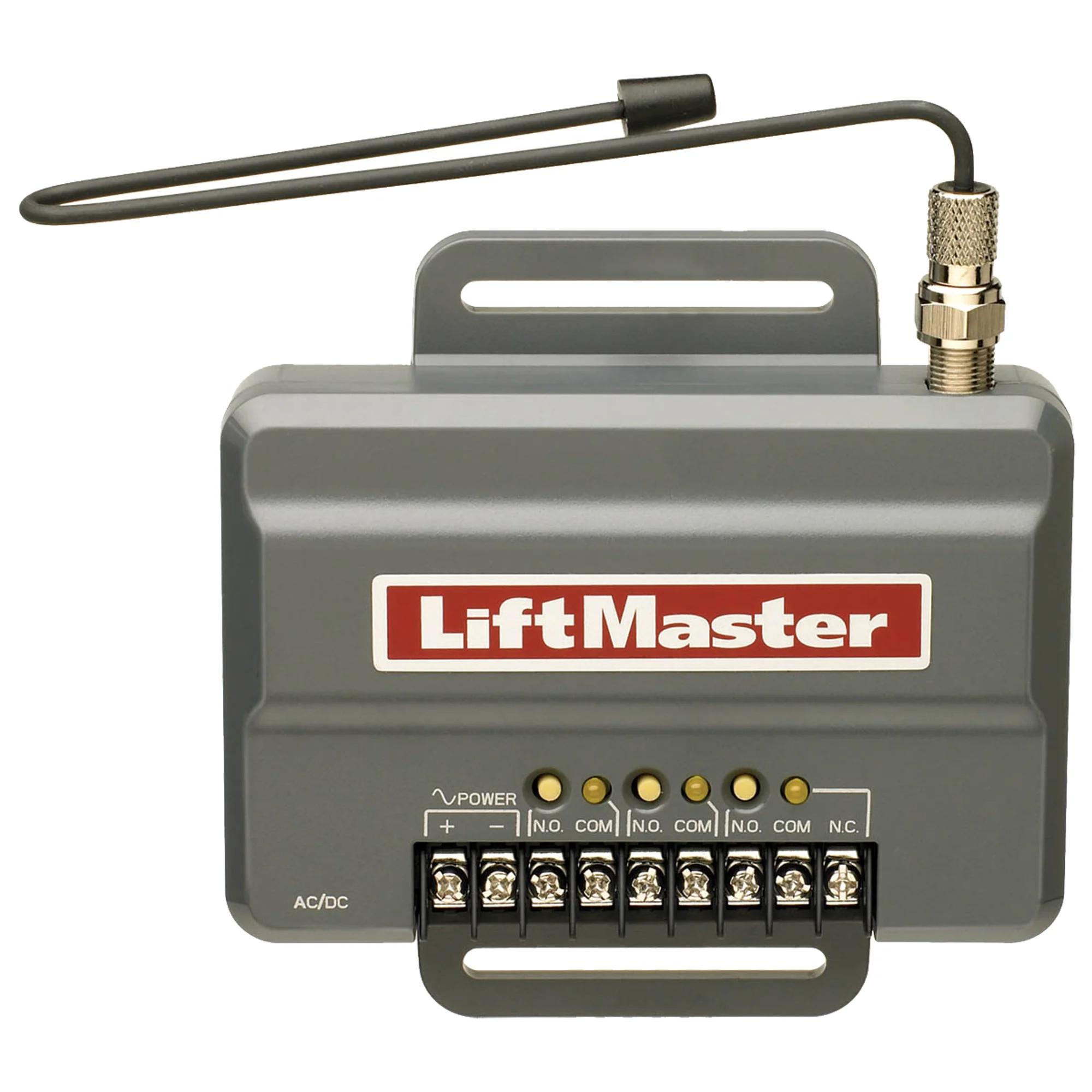

Universal Receiver, Security+ 2.0

Model 850LMMC · LiftMaster

Universal Receiver For Commercial Applications.

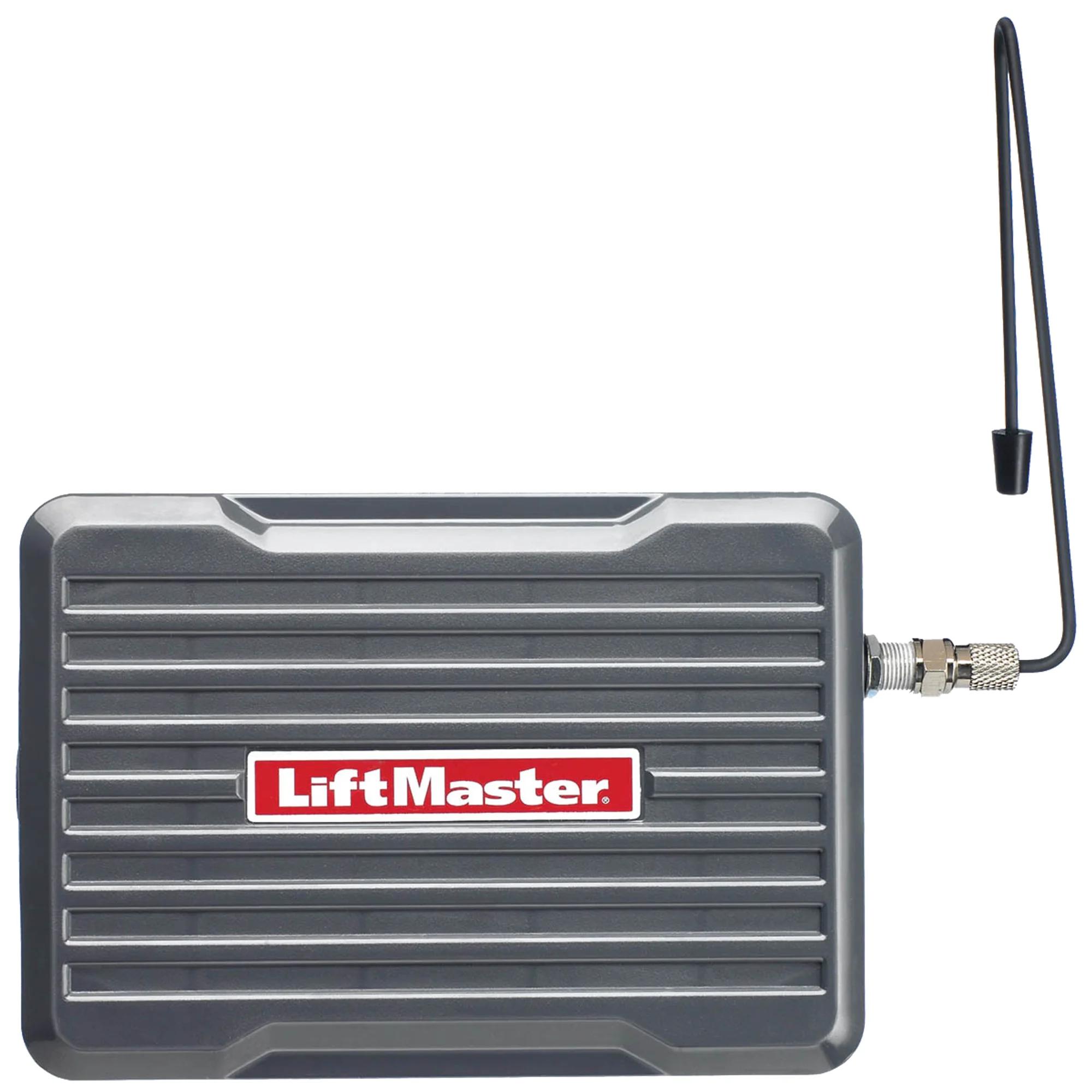

Universal Weather Resistant Receiver Security+ 2.0

Model 860LMMC · LiftMaster

Weather-Resistant Universal Reciever For Commercial Applications.

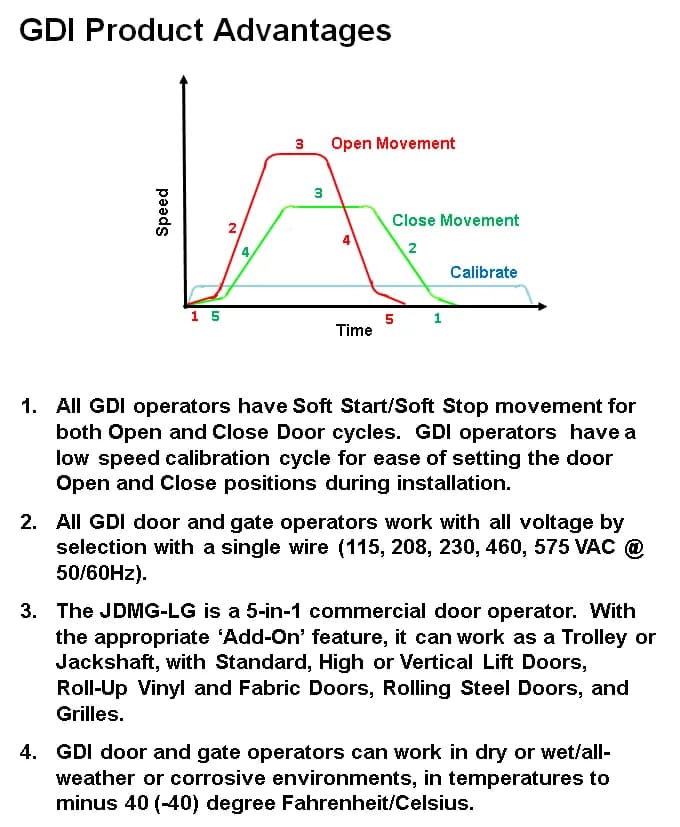

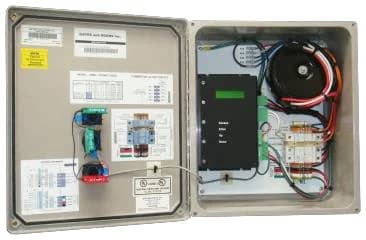

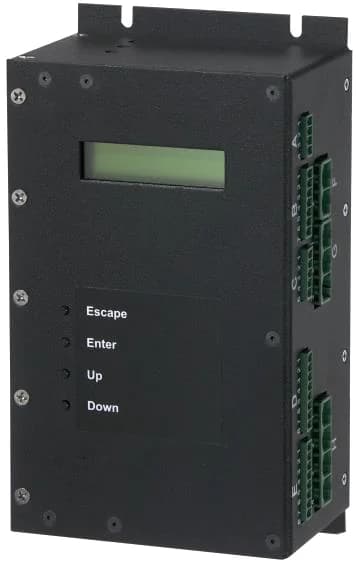

GDI GMC-9334 Adaptive Control System

Model GMC-9334 · GDI

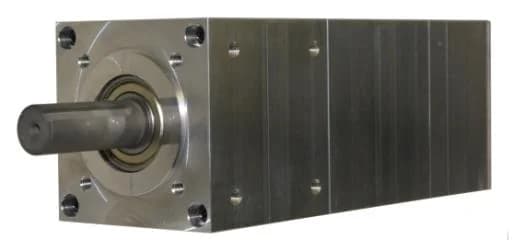

The adaptive controller GDI pairs with its GearMotors across the JDMG, JHMG, HAML, GLWD and SGWD families. Setup and diagnostics run through a keypad and LCD.

• Intelligent Diagnostic clear-text LCD; keypad menu (password access)
• 7 programmable inputs (loops, ultrasonic sensors, radio control, etc.); 2 programmable outputs
• AlgorithmDrive 4-quadrant closed-loop speed and position control
• Automatic or manual door/gate size calibration; no limit switches
• Adjustable obstruction sensing; cycle counter
• NetworkPower: up to 128 operators synchronized and monitored; Internet-ready
• RS-232/CAN interface; CAN/DeviceNet and SDS capability (options)
• Automatic switch-over to battery backup (optional)

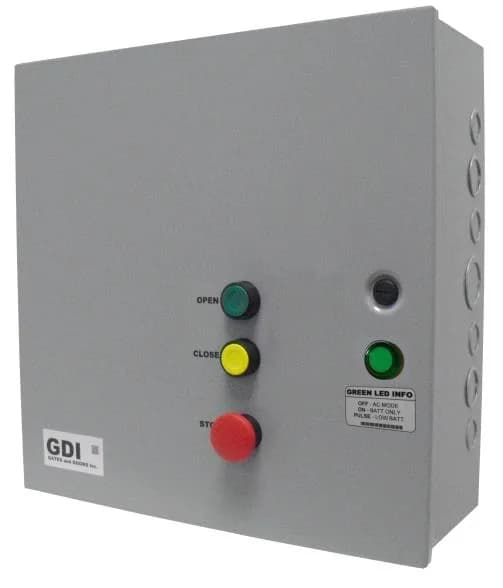

GDI NEMA 1 Operator Control Panel

Model NEMA 1 panel 16" x 16" x 6" · GDI

Standard steel control panel supplied with JDMG-LG and HAML operators, holding the controller with optional push buttons on the door.

• 16" x 16" x 6" steel case, NEMA 1
• Open, close and stop buttons and power indicator light (buttons optional per catalogue)
• HAML-RBH also offered in a 12" x 12" x 4" ultra-compact NEMA 1 enclosure

GDI NEMA 4/4X Operator Control Panel

Model NEMA 4/4X panel 16" x 14" x 8" · GDI

Composite wet-environment control panel, standard on the JHMG-VC and available on order for JDMG and HAML operators.

• NEMA 4/4X composite case, 16" H x 14" W x 8" D
• Open/close button and power indicator light (JHMG-VC)
• Order-only option on JDMG-LG and HAML; NEMA 4 versions use the "-A830-" part-number code

Manaras Nema 1 Separate Control Panel (MOD 022)

Model MOD 022 · Manaras

Wall-mounted Nema 1 panel that moves the operator's control circuit to a remote location, leaving only limits, brake actuator and a terminal strip at the operator.

• Steel enclosure 16" x 12" x 6", heat-fused polyester finish
• Hinged cover with one 1/4-turn latch; colour-coded wiring
• Available with electronic control board option
• For Opera-J/HJ/H/SH/GH, MGH, OTH, OTBH, MGT, OSL, MGSL
• Certifications: CSA C22.2/0, 0.4, 14, 94 and UL 50, 508, 508A

Manaras Nema 4 Separate Control Panel (MOD 024)

Model MOD 024 · Manaras

Nema 4 remote control panel for wet or harsh locations. Options include rotary fused disconnect, cycle counter, window kit and face-mounted push-buttons.

• Steel enclosure 20" x 16" x 8", heat-fused polyester finish
• Hinged cover with two 1/4-turn latches
• Single- or 3-phase; electronic control board option
• For Opera-J/H/SH/GH, MGH, OTH, OTBH, MGT, OSL, MGSL
• Nema 4/12, 4X and 7/9 versions and custom CSA-marked panels (ECB, PLC, VFD) on request

Manaras MODKIT027B1 Auxiliary output module – Universal auxiliary output module

Model MODKIT027B1 · Manaras

Add-on output module that lets the control board drive lights or other devices.

• Universal auxiliary output module kit for electronically controlled operators
• Enables the connection of audible and visible warning devices
• 2 relay outputs
• Applications: Opera, Manaras, Silencio (MODKIT027B1) / Rapido ® (MODKIT027D1)
• Power Supply: 24 V DC
• Dimensions: 2'' L x 2'' H x 1'' D
• ROHS compliant
• Includes: Module, supports

Manaras MODKIT027D1 Auxiliary output module – Universal auxiliary output module

Model MODKIT027D1 · Manaras

Add-on output module that lets the control board drive lights or other devices.

• Universal auxiliary output module kit for electronically controlled operators
• Enables the connection of audible and visible warning devices
• 2 relay outputs
• Applications: Opera, Manaras, Silencio (MODKIT027B1) / Rapido ® (MODKIT027D1)
• Power Supply: 24 V DC
• Dimensions: 2'' L x 2'' H x 1'' D
• ROHS compliant
• Includes: Module, supports

Manaras MODKIT168A Auxiliary output module

Model MODKIT168A · Manaras

Add-on output module that lets the control board drive lights or other devices.

• Auxiliary output module, enables connection of 24VDC, LED light strips
• Auxiliary auxiliary output module kit for electronically controlled operators
• Enables the connection of 24 V DC LED light strips
• 2 relay outputs to separately manage 2 different ® colors
• Power Supply: 24 V DC
• Dimensions: 2'' W x 2'' H x 1'' D
• Dimensions (rectifier): 1.125" W x 1.125" H x 0.79" D
• ROHS compliant

Manaras MODKIT027 Auxiliary output module – Universal auxiliary output module B060

Model MODKIT027 · Manaras

Add-on output module that lets the control board drive lights or other devices.

• Universal auxiliary output module B060

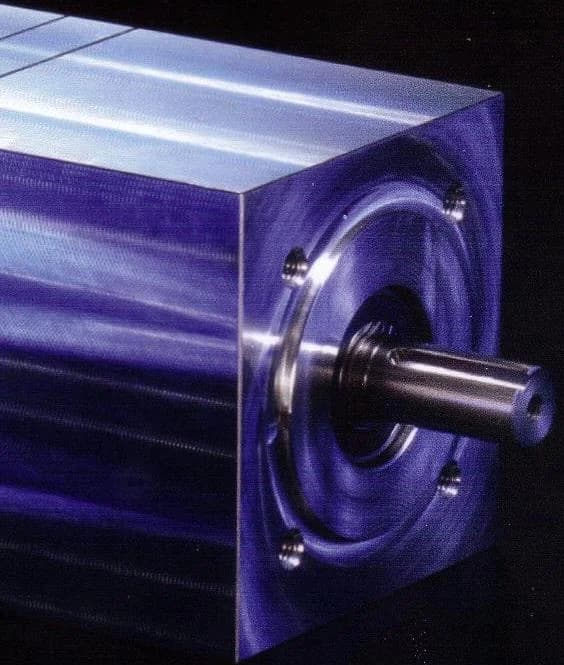

GDI GM-9441 GearMotor

Model GM-9441 · GDI

GDI's sealed brushless DC GearMotor that drives its door operators, offered in axial (JDMG/JHMG) and right-angle hollow-shaft (HAML) versions.

• Brushless DC servo motor with planetary gearing
• Double-shielded precision stainless-steel ball bearings; sealed, no maintenance
• Aluminum body for corrosive and toxic environments
• JHMG version: 1" keyed output shaft, 300-400 in-lb, 140-200 RPM, 18 lb
• HAML version: 1 1/4" hollow or solid keyed shaft, 400-1,500 in-lb, 35-130 RPM, 1/2, 1 and 2 HP configurations, 36 lb
• Environment -20 to +50 deg C
