GDI is a parts and accessories line rather than a door brand: gear kits, logic boards, light covers, wall controls and similar pieces that keep older openers running without replacing the whole unit. It's a small list, but these are the items we reach for most on a weekday opener repair in Vancouver or Burnaby.

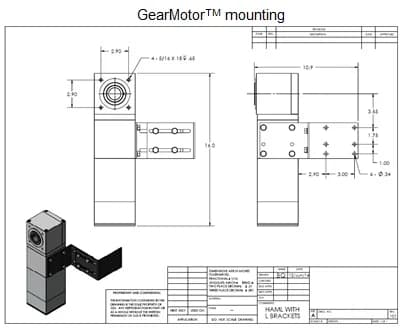

GDI HAML-RBH Direct Drive and Jackshaft Door Operator
Model HAML-RBH · GDI
Medium-speed member of the HAML right-angle family for direct-drive or jackshaft use on vertical (balanced or unbalanced) and horizontal commercial doors.
Application class: Medium speed; max. output speed 65 RPM
Brochure: right-angle hollow-shaft GearMotor 4.3" x 4.3" x 16", 36 lb; door speeds "up to 5 times that of other operators"
GDI JDMG-LG Jackshaft and Low-Headroom Trolley Door Operator
Model JDMG-LG · GDI
Medium-duty commercial/industrial jackshaft operator for balanced sectional and rolling steel doors; with GDI's trolley kit it also runs trolley doors. GDI calls it a five-in-one operator.
Up to 3,200 open/close cycles per day
Max. output speed 120 RPM
GearMotor 4.3" x 4.3" x 11", 18 lb
Balanced rolling steel doors up to 1,200 lb (brochure); catalogue chart: rolling steel 1,000 lb at 15 in/s, sectional/roll-up 2,500 lb at 15-25 in/s (estimates)
Door speed 7 to 22 in/s (catalogue)
1" D x 2.5" L hardened steel shaft with 1/4" keyway
GDI JDMG-LR Trolley Door Operator (JDMG with Trolley Add-on)
Model JDMG-LR · GDI
The JDMG GearMotor on GDI's pre-assembled trolley mount for standard-lift sectional doors where headroom is tight. GDI lists parking garages as the main application.
Requires less than 5" headroom (4 3/4" per brochure)
Weight 23 lb including trolley mount frame
Up to 3,200 cycles per day; door speed 7 to 22 in/s (catalogue)
Weight/speed chart: up to 1,000 lb curtain at 22 in/s (3" sprocket); 1,000-2,500 lb at 15 in/s (2" sprocket); sectional doors max. 10% out of balance (estimates)
Trolley "L" tracks are supplied by the customer; 20 ft #40 chain included in kit
Runs on 115, 208, 230, 460 or 575 VAC, single or three phase, 50/60 Hz (one operator for all voltages)
GM-9441 GearMotor with GMC-9334 adaptive control system; NEMA 1 16" x 16" x 6" panel shown
Heavy-duty, high-cycle JHMG operator for balanced sectional, rolling steel, grille and fabric roll-up doors. It runs at a lower maximum RPM than the JHMG-VC.
Rated to 10,000 open/close cycles per day
Max. output speed 130 RPM
Direct-drive speed chart (max. door open speed): 14 in/s at 2" sprocket up to 41 in/s at 6" (estimates)
GearMotor 4.3" x 4.3" x 11", 18 lb; 4.3" side-mount headroom
1" D x 2.5" L hardened steel shaft with 1/4" keyway
Runs on 115, 208, 230, 460 or 575 VAC, single or three phase, 50/60 Hz (one operator for all voltages)
NEMA 4/4X composite panel 16" x 14" x 8" standard on JHMG-VC brochure; NEMA 1 16" x 16" x 6" also offered
Battery backup 36 V, up to 200 cycles per charge; 40-day PositionTrak
Heavy-duty, high-cycle jackshaft/direct-drive operator for horizontal and vertical doors, including fully unbalanced ones. It is the faster of the two JHMG models.
Rated to 10,000 open/close cycles per day
Max. output speed 216 RPM
Brochure: horizontal doors, vertical doors (spring, counterweight or completely unbalanced) and rolling steel doors
Customization for OEM: wired I/O, auto-open on AC power loss, custom speed/torque, custom enclosure (order only)
Direct-drive speed chart (max. door open speed): 23 in/s at 2" sprocket up to 57 in/s at 5" (estimates)
GearMotor 4.3" x 4.3" x 11", 18 lb; 4.3" side-mount headroom
1" D x 2.5" L hardened steel shaft with 1/4" keyway
Runs on 115, 208, 230, 460 or 575 VAC, single or three phase, 50/60 Hz (one operator for all voltages)

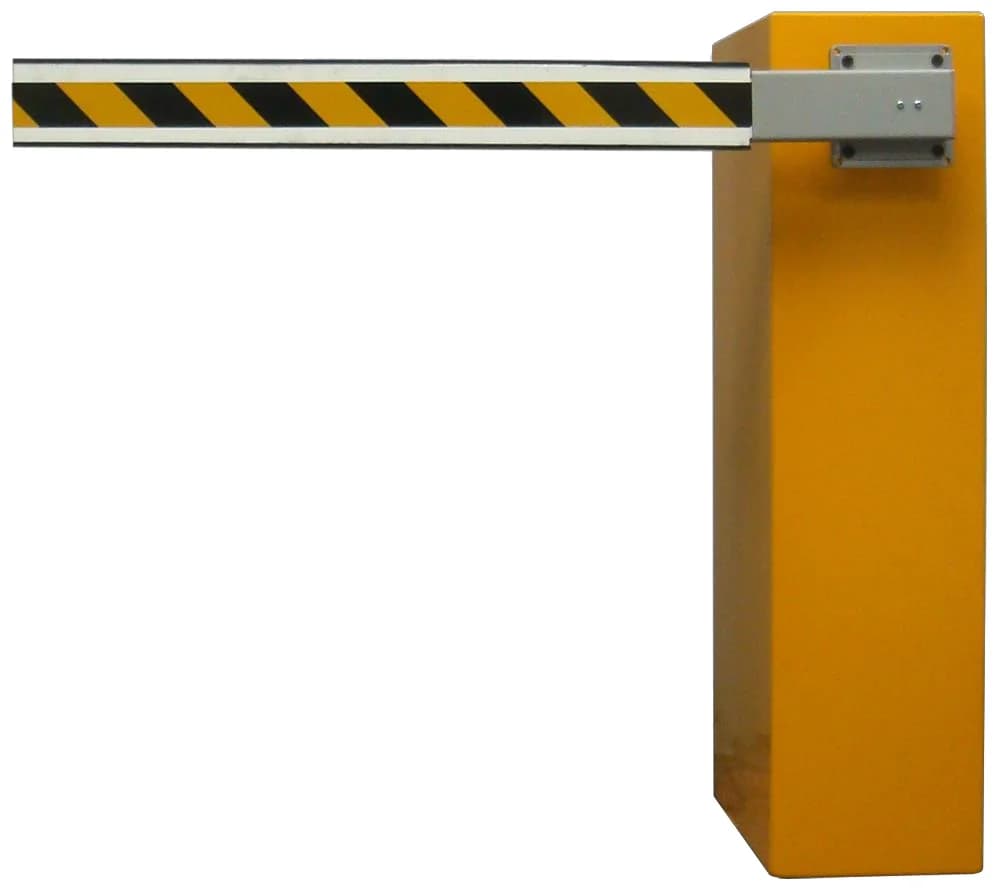

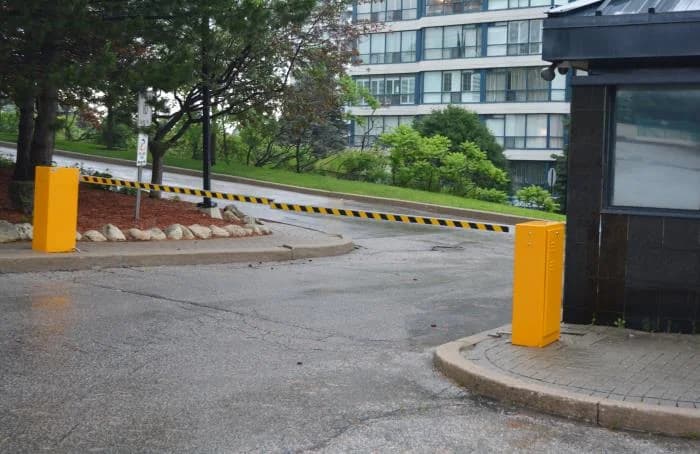

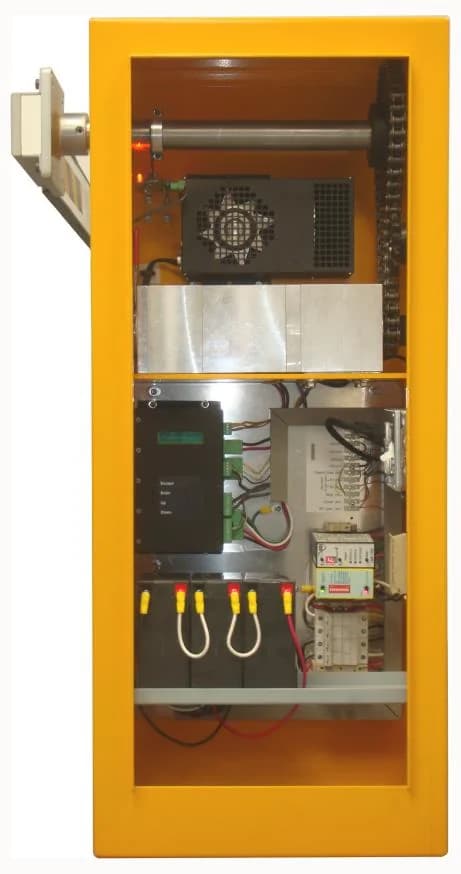

Traffic-control barrier arm operator from GDI's GLWD family for parking lots, underground parking and secured facilities. Two GDI documents give different timing and cycle figures for this model; both are listed.
Brochure V1.02: max. arm 20 ft, opens in 2.5-8 s, 5,000 cycles/day
Catalogue Ver. 1.10: max. arm 20 ft, opens in 1.5-6 s, 6,000 cycles/day
Articulated arm not available; arm purchased separately
Arm moves from horizontal to fully vertical in as little as 1.0 s
Runs on 115, 208, 230, 460 or 575 VAC, single or three phase, 50/60 Hz (one operator for all voltages)
Powder-coated 11-gauge steel case with lockable door; arm and case mounting on either side
Electro-mechanical holding brake, disengageable for manual operation; no springs for load balancing
Master/slave configuration; network up to 128 gates

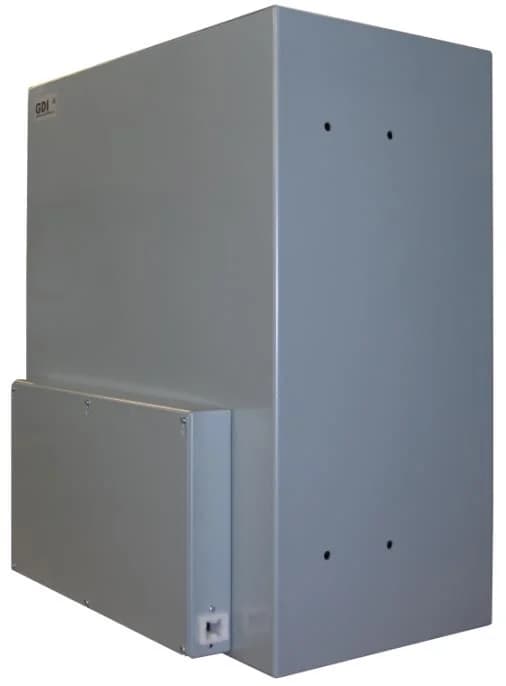

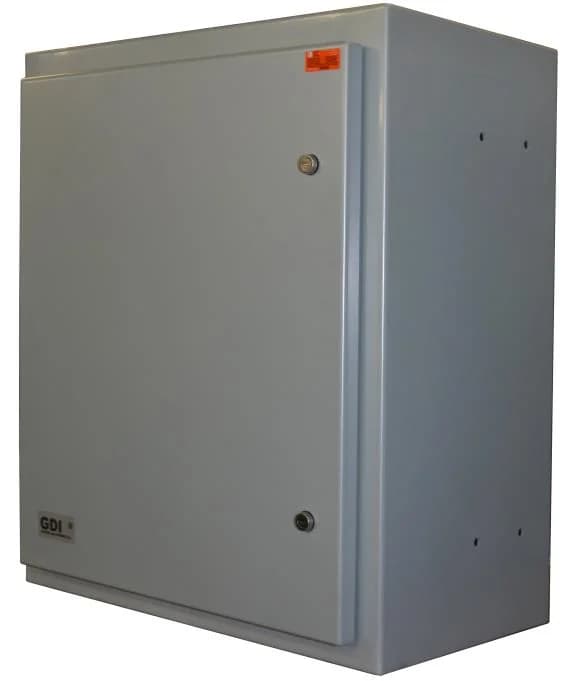

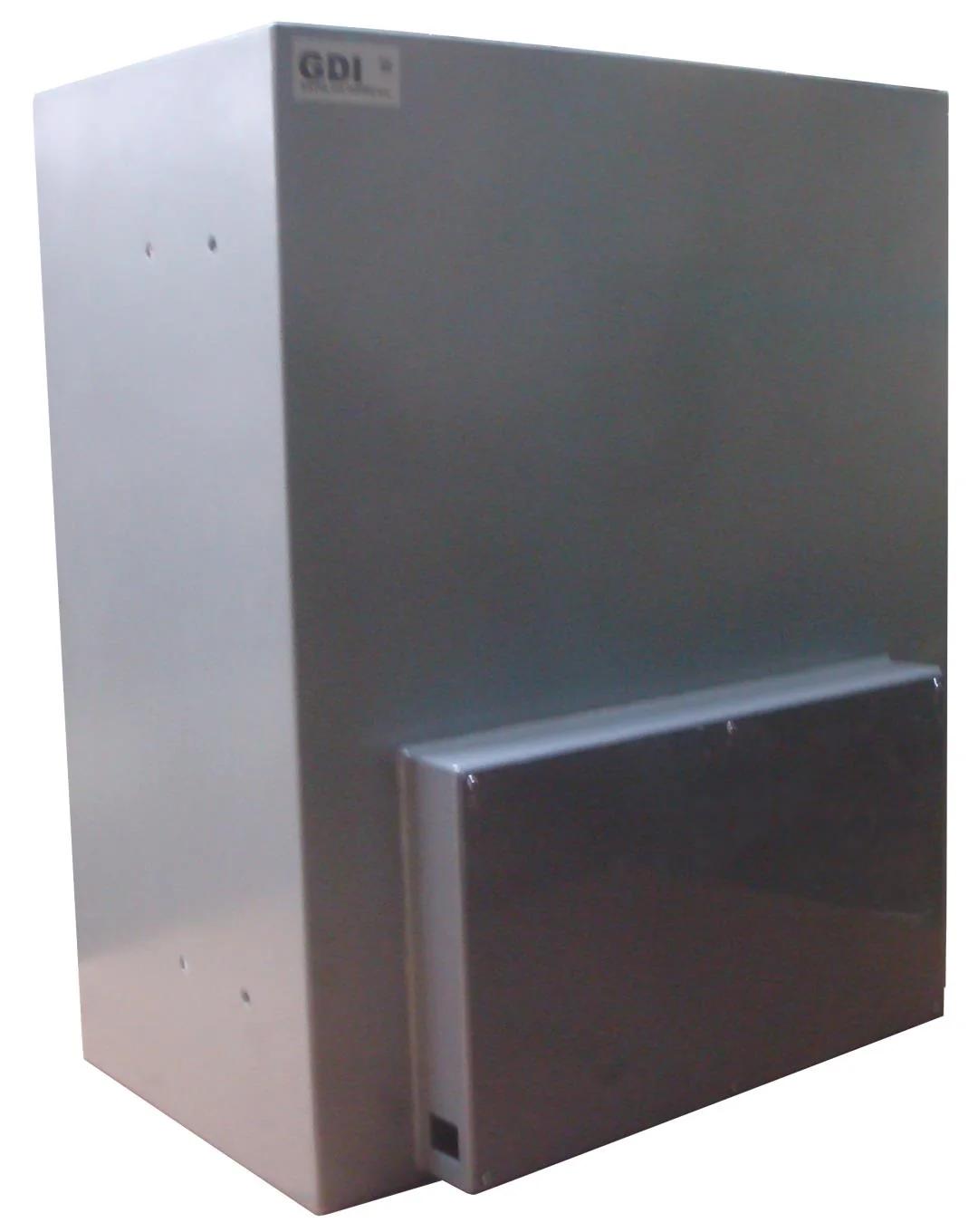

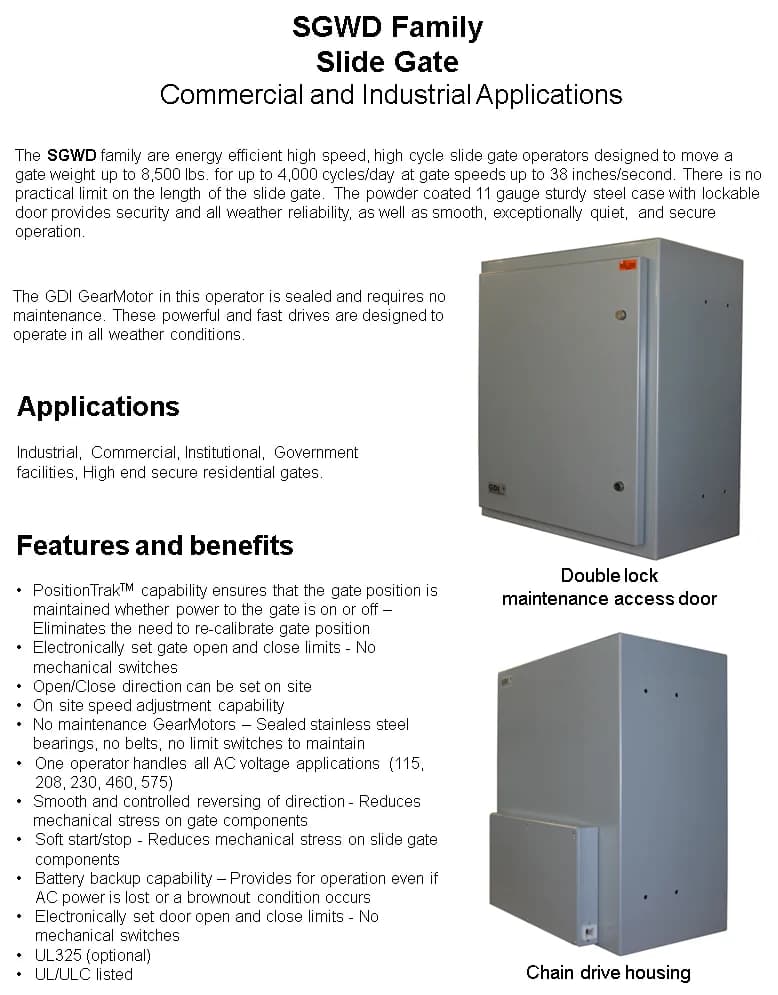

Commercial/industrial slide gate operator from GDI's SGWD family, built in a weatherproof steel cabinet with chain drive. GDI's two published spec tables give different speed and cycle figures for this model, so both are listed.
Commercial/industrial slide gate operator from GDI's SGWD family, built in a weatherproof steel cabinet with chain drive. GDI's two published spec tables give different speed and cycle figures for this model, so both are listed.
Commercial/industrial slide gate operator from GDI's SGWD family, built in a weatherproof steel cabinet with chain drive. GDI's two published spec tables give different speed and cycle figures for this model, so both are listed.
The adaptive controller GDI pairs with its GearMotors across the JDMG, JHMG, HAML, GLWD and SGWD families. Setup and diagnostics run through a keypad and LCD.
Intelligent Diagnostic clear-text LCD; keypad menu (password access)
