Manaras operators are on a large share of the apartment and strata parkade doors in the Lower Mainland, which is why we keep so many of their parts. The list runs from complete trolley and jackshaft operators to the brake solenoids, limit switches and control stations that fail on a twenty-year-old unit. If your parkade door has a Manaras plate on the motor, start here.

High-Speed Doors9 items

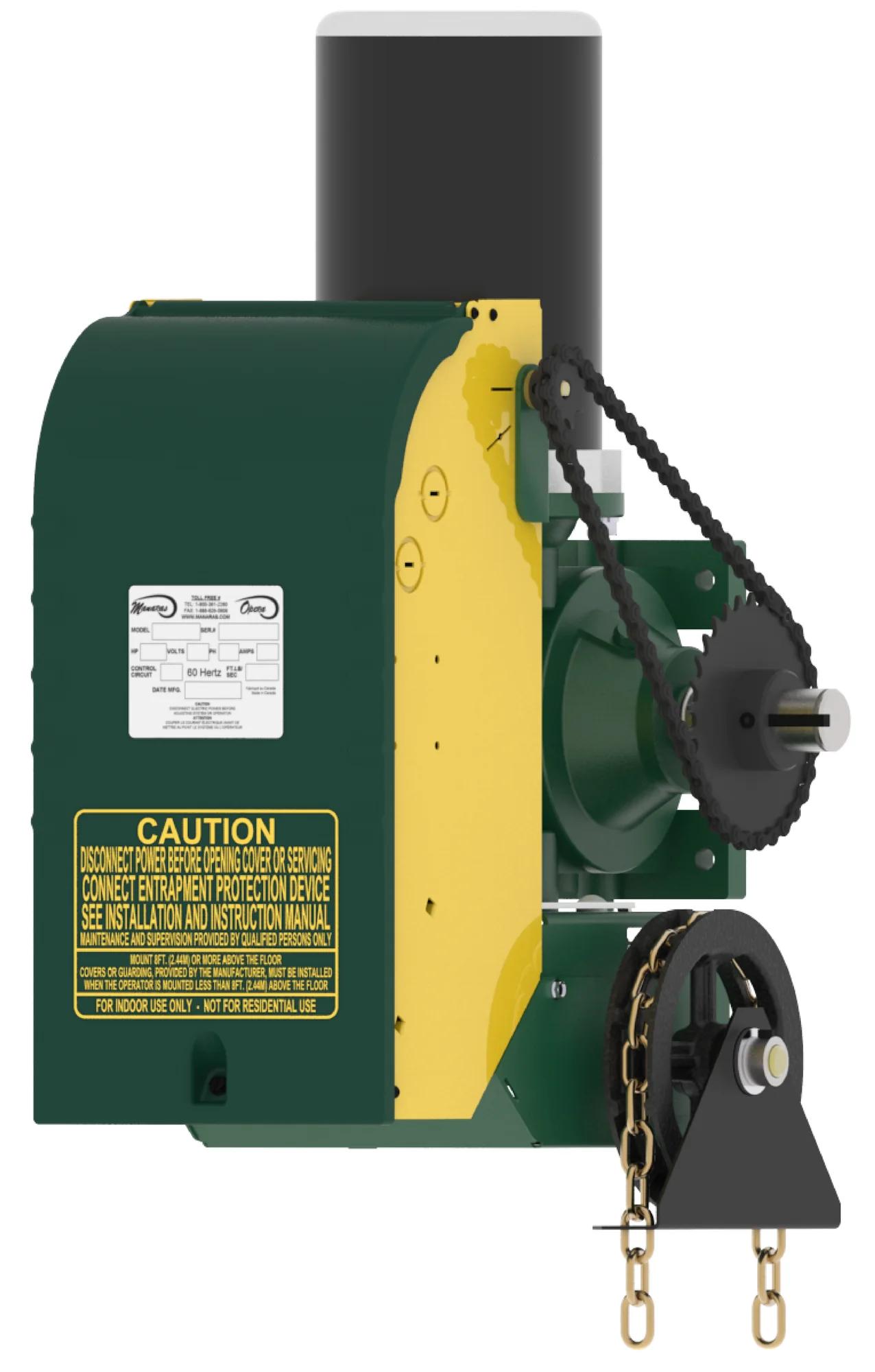

Manaras Rapido RGH High-Speed Industrial Gearhead Operator

Model RGH · Manaras

Rapido worm-gear operator for fast counterbalanced sectional doors, rolling doors and grilles.

• >150 cycles/day
• 1 HP continuous-duty switchless motor (only size offered)
• 20:1 worm gear: 86 rpm open / 57 rpm close; 44:1: 38 rpm open / 25 rpm close
• #50 roller chain; opening door speed 12-24"/s
• Drum-band solenoid brake; Hoist-a-Matic hoist (2026 Selection Guide)
• Wall or hood mount; 15" side room
• Approx. 122 lb

Ask about this door

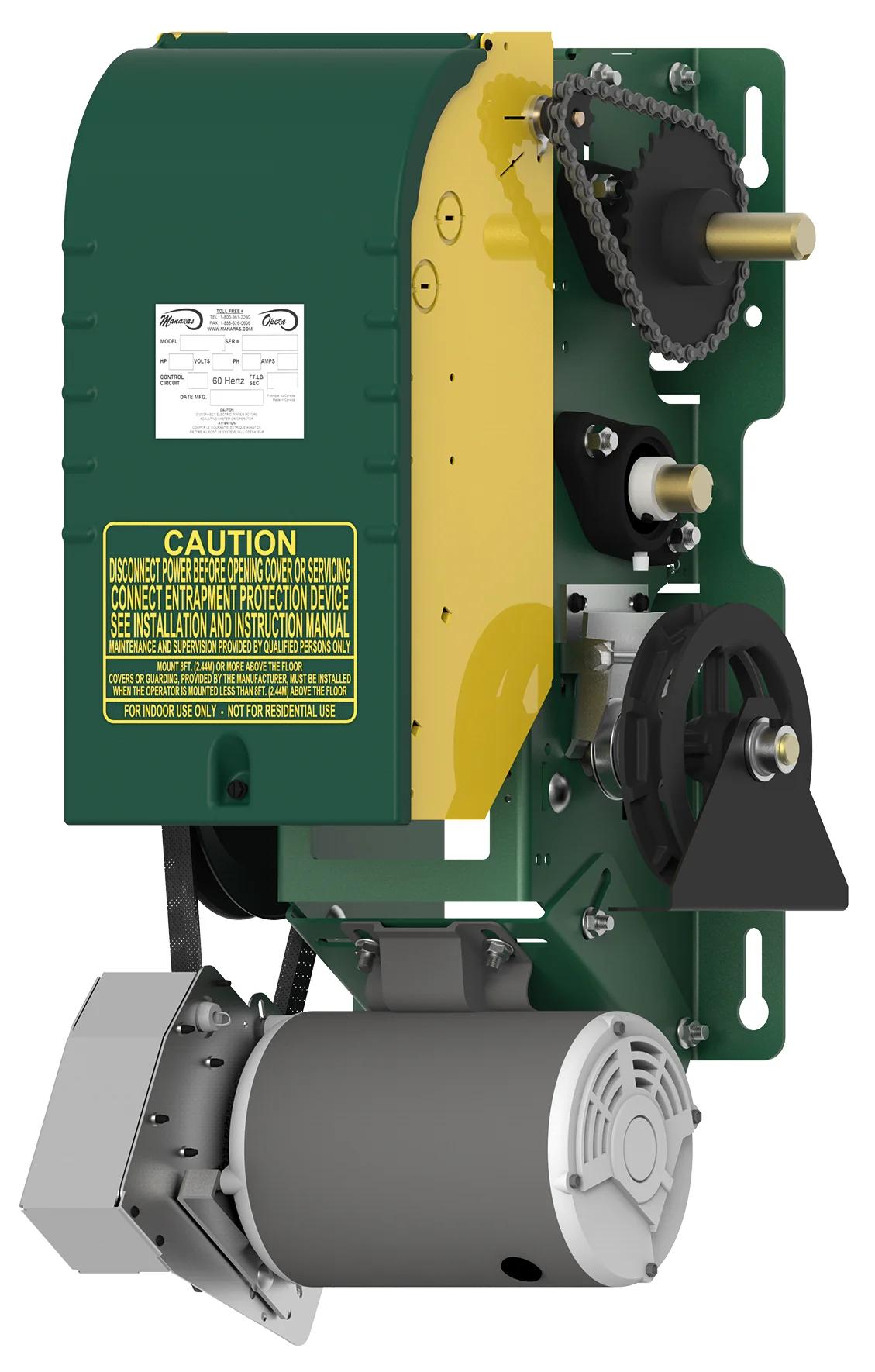

Manaras Rapido RMSJ High-Speed Ultra Heavy-Duty Jackshaft Operator

Model RMSJ · Manaras

Rapido version of the MSJ for large counterbalanced sectional doors that need fast, high-cycle operation.

• >150 cycles/day
• 1 HP continuous-duty switchless motor; VFD with soft start and stop
• Bx cogged V-belt, chain and sprocket; 97 rpm opening / 65 rpm closing
• #50 roller chain; door speed 12-24"/s opening
• High-cycle drum-band solenoid brake
• Cast-iron pillow blocks on input, intermediary and output shafts
• Chain hoist with floor-level disconnect; hoist handing specified at order
• Wall, hood or shelf mount; 16" side room

Ask about this door

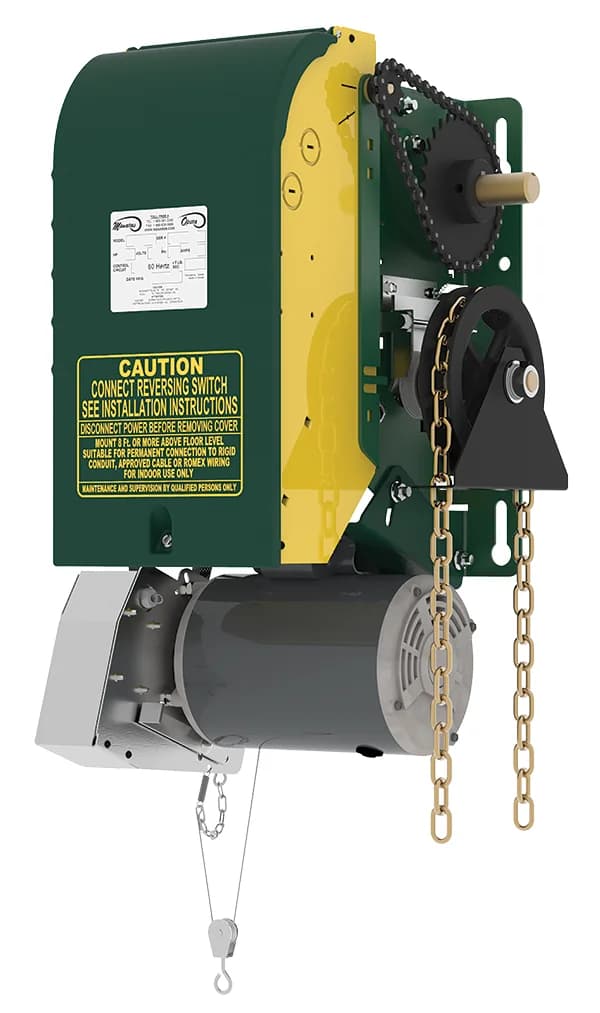

Manaras Rapido RSH High-Speed Industrial Jackshaft Operator

Model RSH · Manaras

Rapido V-belt jackshaft that runs counterbalanced sectional doors up to twice as fast as a standard jackshaft, with soft starts and stops.

• >150 cycles/day (2026 Selection Guide); product page says >100 cycles/day
• 1 HP continuous-duty switchless motor; on-board VFD control
• Max door weight 750 lb; sectional doors only
• 5L/B V-belt, chain and sprocket; 94 rpm output; door speed 12-24"/s opening
• High-cycle drum-band solenoid brake
• Cast-iron pillow blocks on input and output shafts
• Chain hoist with floor-level disconnect and electrical cut-out
• Wall or shelf mount; 16" side room

Ask about this door

Manaras Rapido RSL High-Speed Sliding Door Operator

Model RSL · Manaras

Rapido operator for fast single and bi-parting sliding doors, new in the 2026 Selection Guide.

• >150 cycles/day
• 1 HP continuous-duty switchless motor; on-board VFD control with soft start and stop
• 5L/Bx cogged V-belt, chain and sprocket reduction
• #41 roller chain, door speed 19"/s
• Drum-band solenoid brake
• Cast-iron pillow blocks on input and output shafts
• Includes tracks, sliding door hardware and hanging brackets

Ask about this door

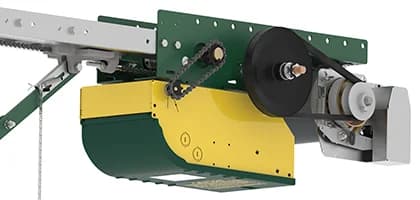

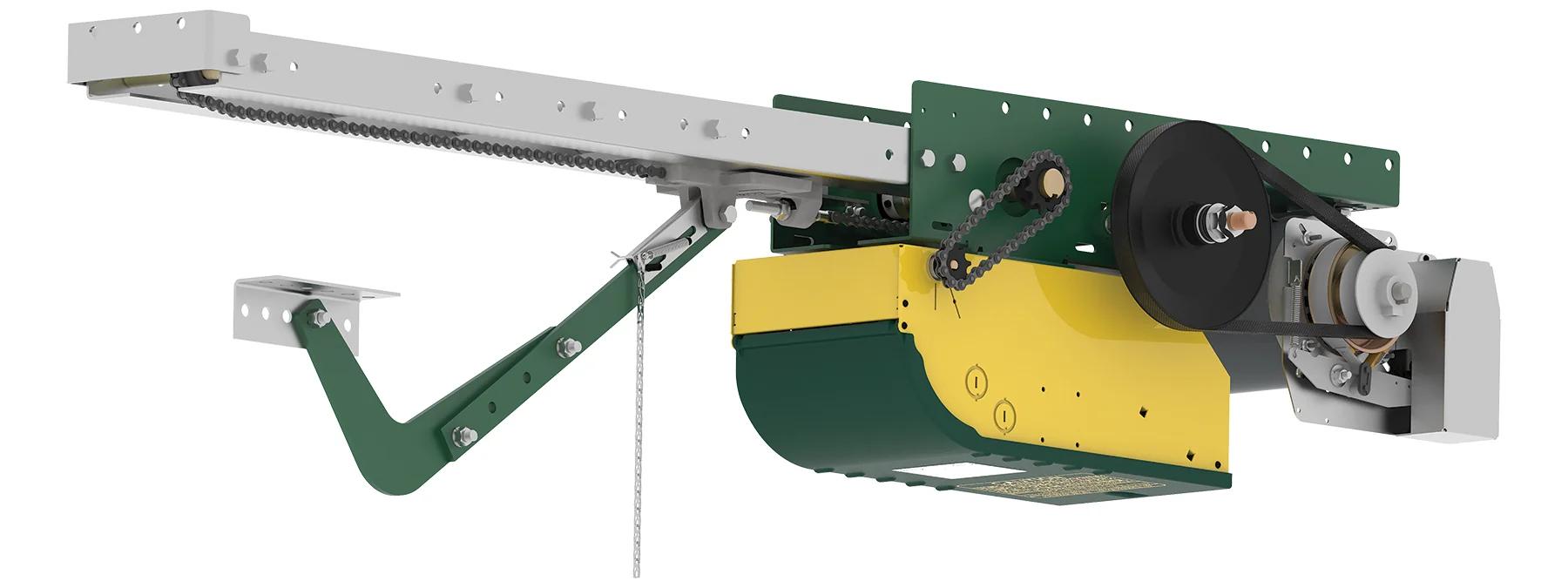

Manaras Rapido RTBH-1.19 High-Speed Trolley Operator (19"/s)

Model RTBH-1.19 · Manaras

Rapido trolley for counterbalanced standard-lift sectional doors, opening at 19 inches per second.

• >150 cycles/day (2026 Selection Guide); product page says >100 cycles/day
• 1 HP continuous-duty switchless motor; VFD soft start and stop
• Opening 19"/s, closing 12"/s
• Bx cogged V-belt plus #41 chain
• Drum-band solenoid brake
• Tracks for 12 ft doors standard, 30 ft max
• 8.69" headroom below tracks (Guide: 8.75")
• Approx. 73 lb plus tracks

Ask about this door

Manaras Rapido RTBH-1.23 High-Speed Trolley Operator (23"/s)

Model RTBH-1.23 · Manaras

Faster Rapido trolley variant for counterbalanced standard-lift sectional doors, opening at 23 inches per second.

• >150 cycles/day (2026 Selection Guide); product page says >100 cycles/day
• 1 HP continuous-duty switchless motor; VFD soft start and stop
• Opening 23"/s, closing 15"/s
• Bx cogged V-belt plus #41 chain
• Drum-band solenoid brake
• Tracks for 12 ft doors standard, 30 ft max
• 8.69" headroom below tracks (Guide: 8.75")
• Approx. 73 lb plus tracks

Ask about this door

Manaras Rapido RVH High-Speed Operator for Vinyl Rolling Doors

Model RVH · Manaras

Rapido jackshaft for fast vinyl rolling doors and roll-up bug screens, not sectional doors.

• Up to 500 cycles/day (product page); >150 cycles/day (2026 Selection Guide)
• 1 HP continuous-duty switchless motor; VFD soft start and stop
• Opening speed up to 30"/s
• 5L/B V-belt, chain and sprocket; 94 rpm output
• #41 or #50 roller chain
• Drum-band solenoid brake
• Chain hoist with floor-level engaging device and electrical cut-out
• Wall, hood or shelf mount; 16" side room

Ask about this door

Manaras Silencio RTBH-A.06 Quiet High-Cycle Apartment Trolley Operator

Model RTBH-A.06 · Manaras

Combines the Silencio low-noise trolley with Rapido-style soft starts and stops for very high-cycle apartment garage doors.

• >150 cycles/day (2026 Selection Guide); product page says >100 cycles/day
• 1 HP continuous-duty switchless motor, TEFC or TENV, resilient mount
• Opening 9"/s, closing 6"/s
• Ax cogged V-belt plus #41 chain
• Drum-band solenoid brake with low-vibration braking
• Anti-vibration mount; 3/4" sleeved track spacers
• 8.69" headroom below tracks
• Approx. 73 lb plus tracks

Ask about this door

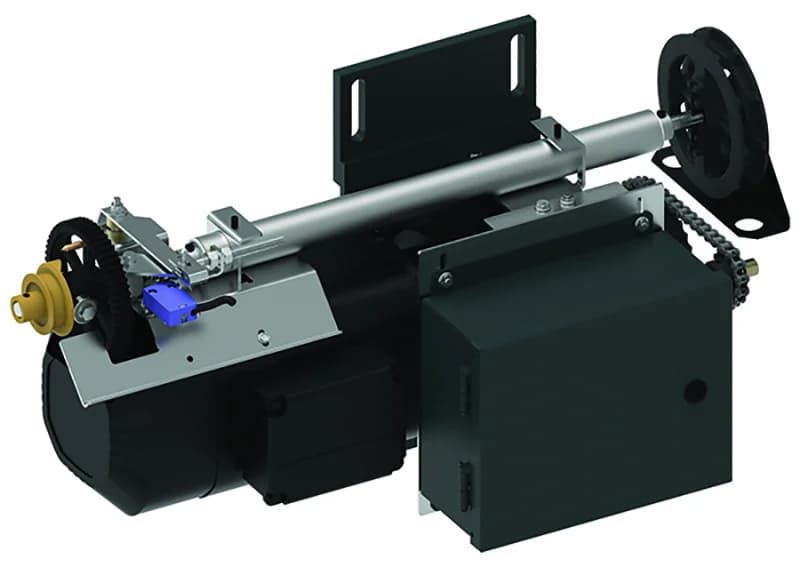

Manaras-Opera Allegro Ultra Heavy-Duty High-Cycle Chain Drive Operator

Model Allegro · Manaras

Very heavy-duty, high-speed operator with helical gear reduction, built for balanced or non-balanced rapid roll-up doors.

• 100 cycles/hr, 500 cycles/day
• Continuous-duty 3-phase totally enclosed brake motor: 1 to 5 HP (spec sheet), 1 to 7.5 HP (2026 Selection Guide)
• Helical gear reduction; higher speed possible with a VFD
• #50, #60, #80 or #100 roller chain
• DC electromagnetic disc brake with manual release
• Hoist-a-Matic self-engaging chain hoist with automatic cut-off
• Operator-mounted control or separate industrial panel

Ask about this door

Commercial Door Operators34 items

Manaras GH Heavy-Duty Gearhead Jackshaft Operator (legacy)

Model GH · Manaras

Discontinued — ask about the replacement

Legacy worm-gear jackshaft for high- and vertical-lift sectional doors and rolling doors. The 2007 Technical Data Book lists it as obsolete.

• 25 cycles/hr, >80 cycles/day
• Continuous-duty TEFC motors up to 2 HP
• Worm gear in oil bath; output shaft 38 rpm
• Solenoid brake; chain hoist with electrical cut-out
• 15" side room

Ask about this part

Manaras MGH Very Heavy-Duty Industrial Gearhead Operator

Model MGH · Manaras

Heavy worm-gear jackshaft for large industrial sectional doors and rolling doors and grilles. Manaras sources disagree on its duty rating, so confirm before specifying.

• Duty: 30 cycles/hr, >100 cycles/day (2026 Selection Guide); product page says 25 cycles/hr, >80 cycles/day
• Continuous-duty industrial motor up to 3 HP (2026 Selection Guide); page references 2 HP to 5 HP dimension drawings
• 60 Hz, single-phase capacitor-start or 3-phase; 50 Hz versions on request
• 40:1 worm gear in oil bath; output shaft 43 rpm
• Output shaft 1-1/4" up to 1-1/2 HP, 1-3/8" above
• #50 roller chain (50B12 up to 1-1/2 HP, 50B15 above); #60 optional
• Drum-band solenoid brake; brake motor and friction clutch optional
• Chain hoist with floor-level engaging device and electrical cut-out

Ask about this part

Manaras MGSL Heavy-Duty Industrial Gearhead Sliding Door Operator

Model MGSL · Manaras

Worm-gear operator for large single and bi-parting industrial sliding doors. Manaras sources disagree on its duty rating.

• Duty: 30 cycles/hr, >100 cycles/day (2026 Selection Guide); product page says 25 cycles/hr, >80 cycles/day
• Continuous-duty industrial motor up to 2 HP (2026 Selection Guide)
• Worm gear 40:1 for single leaf, 44:1 for bi-parting (Guide)
• #41 roller chain; door speed 9"/s (Guide)
• Drum-band solenoid brake; in-line friction clutch
• Max door width 40 ft single, 80 ft bi-parting
• Approx. 137 lb plus tracks

Ask about this part

Manaras MGT Heavy-Duty Industrial Gearhead Trolley Operator

Model MGT · Manaras

Worm-gear industrial trolley with a solenoid brake for industrial standard-lift sectional doors. Manaras sources disagree on its duty rating and gear ratio.

• Duty: 30 cycles/hr, >100 cycles/day (2026 Selection Guide); product page says 25 cycles/hr, >80 cycles/day
• Continuous-duty industrial motor up to 2 HP (2026 Selection Guide)
• Worm gear in oil bath: 20:1 (2026 Selection Guide), 40:1 (product page)
• Door speed 9"/s at 1/2-3/4 HP or 6"/s at 1-1-1/2 HP (Guide); page gives 10"/s and 6"/s
• #41 roller chain drive
• Drum-band solenoid brake; in-line friction clutch
• Tracks for 12 ft doors standard; limit system to 40 ft
• Approx. 126 lb plus tracks

Ask about this part

Manaras MLT Medium-Duty Trolley Operator

Model MLT · Manaras

Discontinued — ask about the replacement

Older medium-duty trolley for small standard-lift sectional doors. Its page is still online, but it is left out of Manaras's trolley listing and the 2026 Selection Guide.

• 14 cycles/hr, 50 cycles/day
• 1/2 HP, 115 V single-phase intermittent-duty motor (50 Hz available)
• 4L/A V-belt plus #410 chain; 112 rpm output, door speed 11"/s
• Tracks for 12 ft doors standard, 14 ft max
• 6.5" headroom below tracks
• Approx. 60 lb plus tracks

Ask about this part

Manaras MRGH Heavy-Duty Industrial Gearhead Operator

Model MRGH · Manaras

Three-phase worm-gear jackshaft for large sectional, multi-blade and industrial rolling doors and grilles.

• 30 cycles/hr, >100 cycles/day
• Continuous-duty industrial motor 1 to 5 HP, 3-phase only, TEFC or TENV
• 40:1 worm gear in oil bath; output shaft 43 rpm; 1-3/8" output shaft
• #50, #60 or #80 roller chain on final drive
• Drum-band solenoid brake; brake motor standard at 5 HP, optional below
• Pillow-block support on reducer output shaft (2 HP: one; 3 HP and up: two)
• Chain hoist with floor-level engaging device and electrical cut-out
• Wall or hood mount; 18" side room

Ask about this part

Manaras MSJ Ultra Heavy-Duty Industrial Jackshaft Operator with Solenoid Brake

Model MSJ · Manaras

Ultra heavy-duty V-belt jackshaft for large sectional doors and rolling doors and grilles in high-traffic industrial openings.

• >35 cycles/hr, >150 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide; product page gives no HP)
• 60 Hz, single-phase capacitor-start or 3-phase, open drip-proof; 50 Hz versions on request
• Bx cogged V-belt, chain and sprocket reduction; output shaft 46 rpm
• #50 roller chain, 50B12 sprocket
• High-cycle drum-band solenoid brake
• Cast-iron pillow-block bearings on input, intermediary and output shafts
• Emergency chain hoist with floor-level engaging device and electrical cut-out

Ask about this part

Manaras MSL Heavy-Duty Sliding Door Operator (legacy)

Model MSL · Manaras

Discontinued — ask about the replacement

Legacy sliding-door operator, documented only on an old manaras.com page.

• 25 cycles/hr, 80 cycles/day
• Continuous-duty motors up to 1 HP
• 5L V-belt, chain and sprocket reduction
• Solenoid brake; #41 drive chain
• Door speed 12"/s

Ask about this part

Manaras MTBH Heavy-Duty Trolley Operator with Solenoid Brake (legacy)

Model MTBH · Manaras

Discontinued — ask about the replacement

Legacy braked trolley for standard-lift sectional doors, documented only on an old manaras.com page.

• 25 cycles/hr, 80 cycles/day
• Continuous-duty industrial motors up to 1 HP (60 Hz)
• 5L/B V-belt, chain and sprocket reduction
• Solenoid brake
• Door speed 12"/s
• Tracks for doors up to 12 ft

Ask about this part

Manaras MTH Heavy-Duty Trolley Operator (legacy)

Model MTH · Manaras

Discontinued — ask about the replacement

Legacy heavy-duty trolley for standard-lift sectional doors, documented only on an older-format manaras.com page.

• 25 cycles/hr, 80 cycles/day
• Continuous-duty industrial motor (60 Hz); #410 chain on 1/2 HP, #41 chain on 3/4 HP
• 5L/B V-belt, chain and sprocket reduction
• Door speed 12"/s
• Tracks for doors up to 12 ft

Ask about this part

Manaras-Opera DH-Series High-Performance Direct-Drive Operator

Model DH-Series · Manaras

Direct-drive hollow-shaft operator for non-counterbalanced sectional or rolling doors, run from a separate control panel with a variable frequency drive.

• 50 cycles/hr, 300 cycles/day (2026 Selection Guide)
• Inverter-duty brake motor, 1 to 7.5 HP 3-phase, totally enclosed, IP-55
• Helical bevel gear reduction (synthetic oil)
• Electromagnetic disc brake integrated in motor, with manual release
• Hoist-a-Matic self-engaging chain hoist for emergency use
• Nema 4/12 limit enclosure; Accu-cam limits
• Approx. 120 lb (2 HP model)

Ask about this part

Manaras-Opera DS-Series High-Performance Direct-Drive Operator

Model DS-Series · Manaras

Highest-cycle member of the direct-drive family, for non-counterbalanced sectional or rolling doors with intensive use.

• 100 cycles/hr, 500 cycles/day
• Inverter-duty brake motor, 1 to 7.5 HP 3-phase, totally enclosed, IP-55 (2026 Selection Guide)
• Helical bevel gear reduction
• Electromagnetic disc brake integrated in motor, with manual release
• Hoist-a-Matic self-engaging chain hoist
• Nema 4/12 limit enclosure; Accu-cam limits; separate industrial control panel
• Approx. 120 lb (2 HP model)

Ask about this part

Manaras-Opera DT-Series High-Performance Direct-Drive Operator

Model DT-Series · Manaras

Direct-mount hollow-shaft operator for counterbalanced sectional doors where speed and service life matter. DTB adds a brake; DTC/DTBC add corrosion protection.

• 50 cycles/hr, 250 cycles/day
• Inverter-duty 1 HP 3-phase totally enclosed motor (IP-55)
• Worm gear reducer (synthetic oil) with built-in single-turn mechanical limits
• Manual operation by hand crank, floor-level disconnect or chain hoist with cut-off switch
• 24 VDC disc brake on DTB/DTBC versions

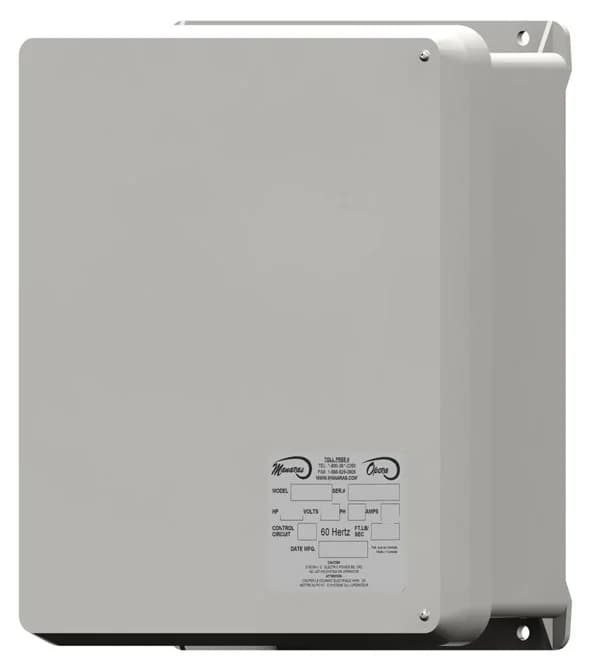

• Separate industrial control panel; torque arm bracket included
• Approx. 45 lb (operator only, 1 HP)

Ask about this part

Manaras-Opera OGH (Opera-GH) Heavy-Duty Industrial Gearhead Operator

Model OGH · Manaras

Worm-gear industrial jackshaft with the Hoist-a-Matic hoist, for industrial sectional doors and rolling doors and grilles.

• 25 cycles/hr, >80 cycles/day
• Continuous-duty motor up to 2 HP (2026 Selection Guide)
• 60 Hz, single-phase capacitor-start or 3-phase; 50 Hz versions on request
• 45:1 worm gear in oil bath; output shaft 38 rpm
• Output shaft 1" up to 1 HP, 1-1/4" above 1 HP
• #50 roller chain, 50B12 sprocket
• Drum-band solenoid brake; friction clutch optional
• Hoist-a-Matic self-engaging hoist with electrical interlock

Ask about this part

Manaras-Opera OHJ (Opera-HJ) Heavy-Duty Jackshaft Operator with Hoist and Floor-Level Disconnect

Model OHJ · Manaras

Heavy-duty jackshaft built mainly for store-front grilles that need a manual egress release. It combines the Hoist-a-Matic hoist with a floor-level disconnect.

• 25 cycles/hr, 100 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide; product page gives no HP)
• 60 Hz, single-phase capacitor-start or 3-phase, open drip-proof
• 5L/B V-belt, chain and sprocket reduction; output shaft 41 rpm
• #50 roller chain, 50B12 sprocket
• Mechanical brake; mechanical door-lock sensor (2026 Selection Guide)
• Hoist-a-Matic hoist plus manual egress release, both interlocked
• Compatible with EGRESSKIT001 emergency egress device

Ask about this part

Manaras-Opera OMBT Medium-Duty Trolley Operator with Solenoid Brake

Model OMBT · Manaras

Braked version of the OMT medium-duty trolley for smaller standard-lift sectional doors, new in the 2026 Selection Guide.

• 14 cycles/hr, 50 cycles/day
• 1/2 HP intermittent-duty motor
• 4L/A V-belt, chain and sprocket reduction
• #48 (#410) roller chain drive, door speed 11"/s
• Drum-band solenoid brake
• 6.125" headroom below tracks
• Friction clutch; Accu-cam limits; quick-release disconnect arm
• Includes 12-gauge trolley tracks

Ask about this part

Manaras-Opera OMH (Opera-MH) Medium-Duty Jackshaft Operator with Hoist-a-Matic

Model OMH · Manaras

Medium-duty Opera jackshaft with the self-engaging Hoist-a-Matic chain hoist for manual operation. Suits sectional doors, small rolling doors and grilles, and rolling sheet doors.

• Medium duty: 14 cycles/hr, 50 cycles/day
• 1/2 HP, 120 V single-phase intermittent-duty motor with instant reverse (50 Hz available)
• 5L/B V-belt, chain and sprocket reduction; output shaft 36 rpm
• #41 roller chain, 41B12 sprocket
• Mechanical brake; adjustable friction clutch; Accu-cam limits
• Hoist-a-Matic self-engaging chain hoist with electrical interlock; hoist handing specified at order
• Maximum door height 14 ft
• Wall, hood or shelf mount; 15" side room

Ask about this part

Manaras-Opera OMJ (Opera-MJ) Medium-Duty Jackshaft Operator

Model OMJ · Manaras

Entry-level Opera jackshaft for standard, high- and vertical-lift sectional doors and smaller rolling doors and grilles. Manual operation is through a floor-level disconnect.

• Medium duty: 14 cycles/hr, 50 cycles/day
• 1/2 HP, 120 V single-phase intermittent-duty motor with instant reverse (50 Hz available)
• 5L/B V-belt, chain and sprocket reduction; output shaft 36 rpm
• #41 roller chain, 41B12 sprocket on operator drive shaft
• Mechanical brake; adjustable friction clutch; Accu-cam limits
• Floor-level disconnect for manual push-up
• Maximum door height 14 ft
• Wall, hood or shelf mount, either side of door; 15" side room

Ask about this part

Manaras-Opera OMT Medium-Duty Trolley Operator

Model OMT · Manaras

Medium-duty trolley for smaller, low-cycle standard-lift sectional doors, with a quick-release arm for manual push-up.

• 14 cycles/hr, 50 cycles/day
• 1/2 HP, 115 V single-phase intermittent-duty motor with instant reverse
• 4L/A V-belt plus #48 (#410) chain reduction; 112 rpm output, door speed 11"/s
• #48 (#410) roller chain drive; 12-gauge dual galvanized tracks for 12 ft doors (14 ft max)
• Friction clutch; Accu-cam limits
• 6.125" headroom below tracks; indoor use only
• Approx. 60 lb plus tracks

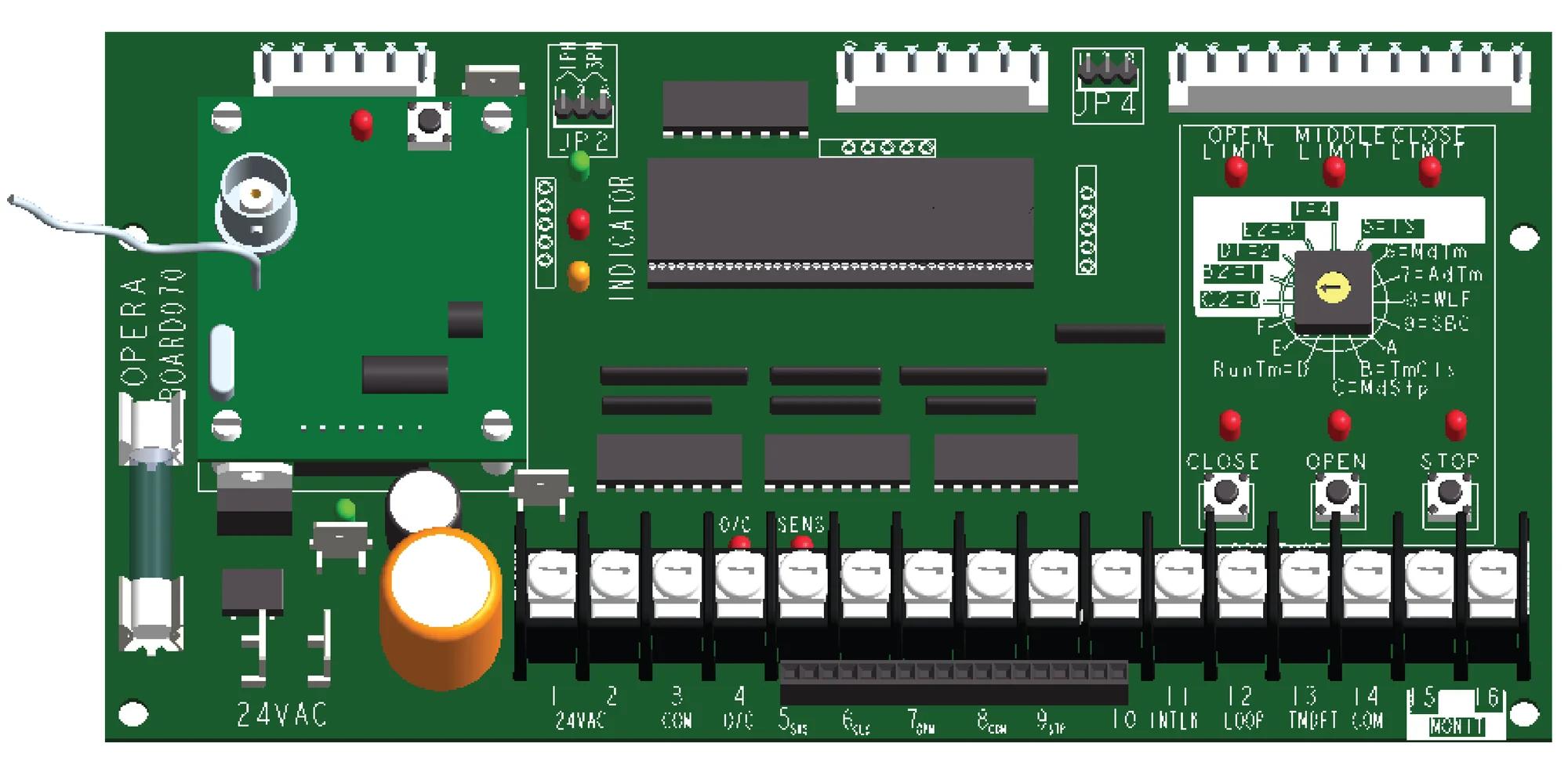

• Electronic control board BOARD070, monitored (M) or non-monitored (E) version

Ask about this part

Manaras-Opera OPH (Opera-H) Heavy-Duty Commercial Jackshaft Operator with Hoist-a-Matic

Model OPH · Manaras

Heavy-duty commercial jackshaft fitted with the Hoist-a-Matic self-engaging chain hoist, for sectional doors and rolling doors and grilles.

• 25 cycles/hr, 100 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide; product page gives no HP)
• 60 Hz, single-phase capacitor-start or 3-phase, open drip-proof; 50 Hz versions on request
• 5L/B V-belt, chain and sprocket reduction; output shaft 41 rpm
• #50 roller chain, 50B12 sprocket
• Mechanical brake; adjustable friction clutch; Accu-cam limits
• Hoist-a-Matic self-engaging hoist with electrical interlock
• Wall, hood or shelf mount; 15" side room

Ask about this part

Manaras-Opera OPJ (Opera-J) Heavy-Duty Commercial Jackshaft Operator

Model OPJ · Manaras

Heavy-duty commercial jackshaft for standard, high- and vertical-lift sectional doors and rolling doors and grilles, with a floor-level disconnect for manual push-up.

• 25 cycles/hr, 100 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide; product page gives no HP)
• 60 Hz, single-phase capacitor-start or 3-phase, open drip-proof; 50 Hz 220 V 1-ph / 380 V 3-ph on request
• 5L/B V-belt, chain and sprocket reduction; output shaft 41 rpm
• #50 roller chain, 50B12 sprocket
• Mechanical brake; adjustable friction clutch; Accu-cam limits
• Floor-level disconnect with electrical interlock
• Compatible with EGRESSKIT001 emergency egress device

Ask about this part

Manaras-Opera OSH (Opera-SH) Heavy-Duty Industrial Jackshaft Operator with Solenoid Brake

Model OSH · Manaras

Industrial V-belt jackshaft that Manaras positions between its standard jackshafts and gearheads. It adds a drum-band solenoid brake and cast-iron pillow-block bearings.

• 25 cycles/hr, >100 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide; product page gives no HP)
• 60 Hz, single-phase capacitor-start or 3-phase, open drip-proof; 50 Hz versions on request
• 5L/B V-belt, chain and sprocket reduction; output shaft 41 rpm
• #50 roller chain, 50B12 sprocket
• Drum-band solenoid brake
• Cast-iron flanged pillow-block bearings on input and output shafts
• Emergency chain hoist with floor-level engaging device and electrical cut-out

Ask about this part

Manaras-Opera OSL Heavy-Duty Commercial Sliding Door Operator

Model OSL · Manaras

Heavy-duty operator for single and bi-parting industrial sliding doors, with a solenoid brake and quick-release arm.

• 25 cycles/hr, 80 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide)
• 60 Hz single-phase capacitor-start or 3-phase
• 5L/B V-belt plus #41 chain; 120 rpm output, door speed 12"/s
• Drum-band solenoid brake
• Max door width 30 ft single, 60 ft bi-parting
• Includes tracks, sliding door hardware and hanging brackets
• Approx. 111 lb plus tracks

Ask about this part

Manaras-Opera OTBH Heavy-Duty Commercial Trolley Operator with Solenoid Brake

Model OTBH · Manaras

The OTH trolley with a drum-band solenoid brake added, for industrial standard-lift sectional doors.

• 25 cycles/hr, 80 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide)
• 60 Hz single-phase capacitor-start or 3-phase
• 5L/B V-belt plus #41 chain reduction; 120 rpm output, door speed 12"/s
• #48 (#410) chain on 1/2 HP; #41 chain on 3/4 and 1 HP
• Drum-band solenoid brake
• Tracks for 12 ft doors standard, 30 ft max
• 6.25" headroom below tracks

Ask about this part

Manaras-Opera OTBH-A.00 Heavy-Duty Apartment Trolley Operator with Solenoid Brake

Model OTBH-A.00 · Manaras

Braked version of the OTH-A.00 apartment trolley for high-cycle standard-lift sectional doors.

• 30 cycles/hr, >100 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide)
• 60 Hz single-phase capacitor-start or 3-phase
• 4L/A V-belt plus #41 chain; 92 rpm output, door speed 9"/s
• Drum-band solenoid brake
• Cast-iron flanged pillow block on input shaft
• Tracks for 12 ft doors standard, 30 ft max
• 6.25" headroom below tracks

Ask about this part

Manaras-Opera OTBH-A.05 Premium Apartment Trolley Operator with Solenoid Brake

Model OTBH-A.05 · Manaras

Premium apartment trolley with a drum-shoe solenoid brake and a low-vibration braking system for steadier, quieter stops.

• 30 cycles/hr, >100 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide)
• 60 Hz single-phase capacitor-start or 3-phase
• 4L/Ax cogged V-belt plus #41 chain; 92 rpm output, door speed 9"/s
• Insulated drum-shoe solenoid brake with low-vibration braking
• Cast-iron flanged pillow blocks on input and output shafts
• Tracks for 12 ft doors standard, 30 ft max
• 6.25" headroom below tracks

Ask about this part

Manaras-Opera OTH Heavy-Duty Commercial Trolley Operator

Model OTH · Manaras

Low-headroom heavy-duty trolley for industrial standard-lift sectional doors.

• 25 cycles/hr, 80 cycles/day
• Continuous-duty motor up to 3/4 HP (2026 Selection Guide)
• 60 Hz single-phase capacitor-start or 3-phase; 50 Hz versions on request
• 5L/B V-belt plus #41 chain reduction; 120 rpm output, door speed 12"/s
• #48 (#410) chain on 1/2 HP, #41 chain on larger motors
• Tracks for 12 ft doors standard, 30 ft max
• 6.25" headroom below tracks
• Quick-release disconnect arm

Ask about this part

Manaras-Opera OTH-A.00 Heavy-Duty Apartment Trolley Operator

Model OTH-A.00 · Manaras

Low-headroom apartment-style trolley for high-cycle standard-lift sectional doors such as residential building garages.

• 30 cycles/hr, >100 cycles/day
• Continuous-duty motor up to 3/4 HP (2026 Selection Guide)
• 60 Hz single-phase capacitor-start or 3-phase
• 4L/A V-belt plus #41 chain; 92 rpm output, door speed 9"/s
• Cast-iron flanged pillow block on input shaft
• Tracks for 12 ft doors standard, 30 ft max
• 6.25" headroom below tracks
• Approx. 71 lb plus tracks

Ask about this part

Manaras-Opera Silencio OTBH-A.06 Quiet Apartment Trolley Operator with Solenoid Brake

Model OTBH-A.06 · Manaras

Braked Silencio apartment trolley that pairs the low-noise design with a drum-shoe solenoid brake and low-vibration braking.

• >100 cycles/day
• Continuous-duty motor up to 1 HP (2026 Selection Guide); TEFC or TENV, resilient mount
• 60 Hz single-phase capacitor-start or 3-phase
• 4L/Ax cogged V-belt plus #41 chain; 92 rpm output, door speed 9"/s
• Insulated drum-shoe solenoid brake with low-vibration braking
• Cast-iron pillow blocks on input and output shafts
• Maximum door height 12 ft
• 7.36" headroom below tracks (2026 Selection Guide)

Ask about this part

Manaras-Opera Silencio OTH-A.06 Quiet Apartment Trolley Operator

Model OTH-A.06 · Manaras

Silencio apartment trolley built to cut operating noise, which Manaras rates at four times quieter. Intended for high-cycle sectional doors in residential buildings.

• >100 cycles/day
• Continuous-duty motor up to 3/4 HP (2026 Selection Guide); TEFC or TENV, resilient mount
• 60 Hz single-phase capacitor-start or 3-phase
• 4L/Ax cogged V-belt plus #41 chain; 92 rpm output, door speed 9"/s
• Anti-vibration mount; cast-iron pillow blocks on input and output shafts
• 3/4" poly-sleeved track spacers
• Maximum door height 12 ft
• 7.36" headroom below tracks (2026 Selection Guide)

Ask about this part

Manaras MJ Jackshaft Operator (obsolete)

Model MJ · Manaras

Discontinued — ask about the replacement

Obsolete model listed in Manaras's 2007 Technical Data Book. Some replacement parts are still listed for it.

• Listed as obsolete in 2007 Technical Data Book
• Parts list: replacement motor MOTOR009 (1/2 HP, 120/240 V 1-ph, intermittent duty)
• Parts list: V-belt VBELTA34

Ask about this part

Manaras MJH Jackshaft Operator with Hoist (obsolete)

Model MJH · Manaras

Discontinued — ask about the replacement

Obsolete model listed in Manaras's 2007 Technical Data Book. Some replacement parts are still listed for it.

• Listed as obsolete in 2007 Technical Data Book
• Parts list: replacement motor MOTOR009 (1/2 HP, 120/240 V 1-ph, intermittent duty)
• Parts list: clutch and hoist shaft kits MOUNTSHAFT001A / 010A

Ask about this part

Manaras MLH Jackshaft Operator with Hoist (obsolete)

Model MLH · Manaras

Discontinued — ask about the replacement

Obsolete model listed in Manaras's 2007 Technical Data Book. Some replacement parts are still listed for it.

• Listed as obsolete in 2007 Technical Data Book
• Parts list: replacement motor MOTOR189 (1/2 HP, 120 V 1-ph, instant reverse)

Ask about this part

Manaras MLJ Jackshaft Operator (obsolete)

Model MLJ · Manaras

Discontinued — ask about the replacement

Obsolete model listed in Manaras's 2007 Technical Data Book. Some replacement parts are still listed for it.

• Listed as obsolete in 2007 Technical Data Book
• Parts list: replacement motor MOTOR189 (1/2 HP, 120 V 1-ph, instant reverse)

Ask about this part

Garage Door Remotes & Keypads27 items

Manaras CABLE015 Antenna cable – Extension 15' coaxial cable for receiver antenna (20' coaxial cable available $)

Model CABLE015 · Manaras

Antenna cable for radio receivers.

• Extension 15' coaxial cable for receiver antenna (20' coaxial cable available $)
• Coaxial antenna extension cable
• Dimensions: 15'' L
• Includes: Cable with BNC male and female connectors
• Compatible with: receivers RADIO015, RADIO031, RADIO037, RADIORE900, RADIORE900A, RADIORE900B, RADIORE901, RADIORE901A, RADIORE901B
• For 20' of coaxial antenna extension cable: order CABLE015A

Ask about this part

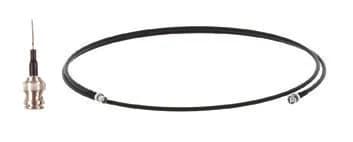

Manaras CABLEKIT001 Antenna cable kit – Commercial receiver antenna and 15' coaxial cable (20' coaxial cable available $

Model CABLEKIT001 · Manaras

Antenna cable kit for remote mounting of a radio antenna.

• Coaxial antenna extension cable kit
• Includes: 15' of coaxial cable with BNC male and female connectors, commercial receiver antenna with BNC male connector
• Compatible with: receivers RADIO015, RADIO031, RADIO037, RADIORE900, RADIORE900A, RADIORE900B, RADIORE901, RADIORE901A, RADIORE901B
• Replacement parts: order CABLE015, RADIO029
• For 20' of coaxial antenna extension cable: order CABLEKIT001A

Ask about this part

Manaras CARDREADER017 Card reader – Proximity card reader

Model CARDREADER017 · Manaras

Card reader and keypad for controlled door access.

• Proximity card reader, inductive contact-less, waterproof, can be used as keypad control, up to 2000 users, 9-28VDC input, 24VDC from ECB, back-lit
• Waterproof card reader / digital keypad
• Installation: Close proximity to the door, wall or post mount
• Operation Temperature: -25°C to 60°C (-13°F to 140°F)
• Range: 3 to 8 cm
• Dimensions: 2.2'' W x 4.74'' H x 0.71''
• Power Supply: 24 V DC
• Includes: Card reader / digital keypad

Ask about this part

Manaras CARDREADER018 Card reader – Access cards, reinforced

Model CARDREADER018 · Manaras

Card reader and keypad for controlled door access.

• Access cards, reinforced, compatible with CARDREADER017
• Reinforced access card
• Swipe in front of card reader
• Dimensions: 3.4'' W x 1.2'' H x 0.1'' D
• Compatible with: CARDREADER017

Ask about this part

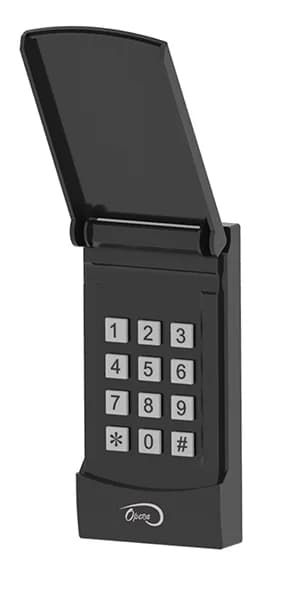

Manaras KEYLESS042 Wireless keypad – Exterior digital keypad

Model KEYLESS042 · Manaras

Wireless keypad that opens the door with a code.

• Exterior digital keypad, operates up to 4 doors, SBC or open / close function, back-lit keys, weather resistant cover, 2-8 digit programmable personalized passcodes weather resistant cover, 2-8 digit programmable personalized passcodes
• Hand held or wall mount
• Rolling code technology
• Twelve-button digital keypad
• 1-4 doors (MD)
• Function: Open / close / stop (configurable on operators equipped with an ECB) or open / close
• Environment: Nema 1 with weather-proof cover
• Range: 100' (approx.)

Ask about this part

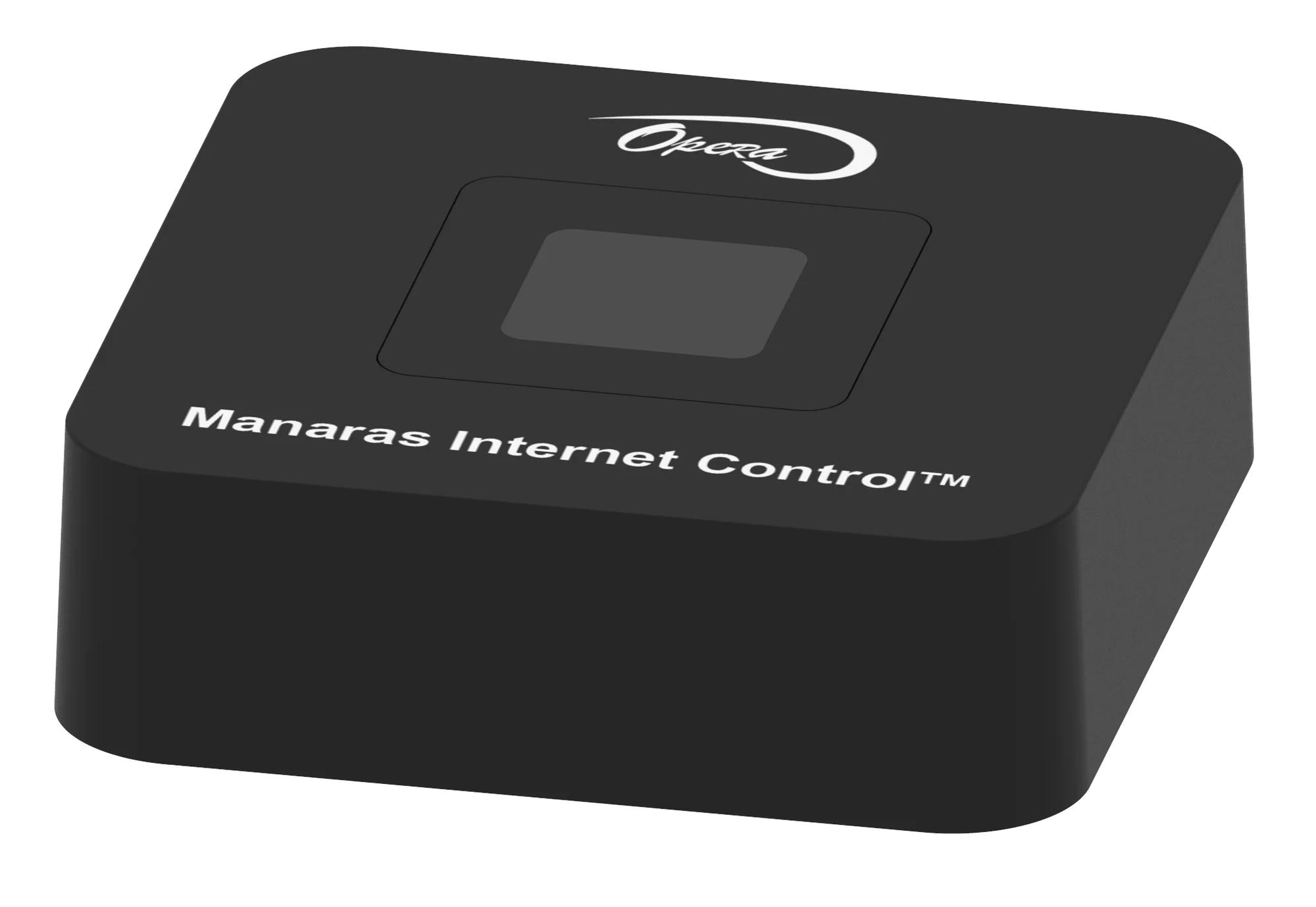

Manaras MIC001 Wi-Fi controller – Includes Manaras Internet ControlTM (MIC) device and ECB BOARD070M with integrat

Model MIC001 · Manaras

Manaras Internet Control: phone-app control and monitoring of the door over Wi-Fi.

• Includes Manaras Internet ControlTM (MIC) device and ECB BOARD070M with integrated MIC Wi-Fi compatibility software (factory installed); to be purchased and used with a monitored "M" type Manaras operator
• The Wi-Fi control device (MIC) allows you to control and monitor a garage door remotely
• 1 door
• Free downloadable MIC Manaras Internet Control TM app, available for iOS and Android
• Easy connection and pairing
• Share access with multiple users (temporary or permanent access)
• Includes: MIC device, ECB BOARD070M with integrated MIC Wi-Fi compatibility software (factory installed), access to the MIC app (App Store or Google Play)
• Required: monitored "M" type Manaras operator, monitored photoelectric cells, 2 GHz Wi-Fi connection, smart device (iOS or Android)

Ask about this part

Manaras MODKITMIC001A MIC retrofit kit – Retro-fit kit for in-field "M" type operators already equipped with monitored ph

Model MODKITMIC001A · Manaras

Retrofit kit for adding Manaras Internet Control (MIC) Wi-Fi to an existing operator.

• Retro-fit kit for in-field installation
• Compatible with "M" type operators already equipped with monitored photoelectric cells
• The Wi-Fi control device (MIC) allows you to control and monitor a garage door remotely
• 1 door
• Free downloadable MIC Manaras Internet Control TM app, available for iOS and Android
• Easy connection and pairing
• Share access with multiple users (temporary or permanent access)
• Includes: MIC device (MIC001) , ECB BOARD070M with integrated MIC Wi-Fi compatibility software

Ask about this part

Manaras MODKITMIC001B MIC retrofit kit – Retro-fit kit for in-field "E" type operators ; includes Manaras Internet Contro

Model MODKITMIC001B · Manaras

Retrofit kit for adding Manaras Internet Control (MIC) Wi-Fi to an existing operator.

• Retro-fit kit for in-field installation with Nema 1, thru-beam, monitored photoelectric cells
• Compatible with "E" type operators
• The Wi-Fi control device (MIC) allows you to control and monitor a garage door remotely
• 1 door
• Free downloadable MIC Manaras Internet Control TM app, available for iOS and Android
• Easy connection and pairing
• Share access with multiple users (temporary or permanent access)
• Includes: MIC device (MIC001) , ECB BOARD070M with integrated MIC Wi-Fi compatibility software, monitored photoelectric cells (PHOTO070)

Ask about this part

Manaras MODKITMIC001C MIC retrofit kit – Retro-fit kit for in-field "E" type operators ; includes Manaras Internet Contro

Model MODKITMIC001C · Manaras

Retrofit kit for adding Manaras Internet Control (MIC) Wi-Fi to an existing operator.

• Retro-fit kit for in-field installation with Nema 4X, thru-beam, monitored photoelectric cells
• Compatible with "E" type operators
• The Wi-Fi control device (MIC) allows you to control and monitor a garage door remotely
• 1 door
• Free downloadable MIC Manaras Internet Control TM app, available for iOS and Android
• Easy connection and pairing
• Share access with multiple users (temporary or permanent access)
• Includes: MIC device (MIC001) , ECB BOARD070M with integrated MIC Wi-Fi compatibility software, monitored photoelectric cells (PHOTO061)

Ask about this part

Manaras MODKITMIC001D MIC retrofit kit – Retro-fit kit for in-field "E" type operators ; includes Manaras Internet Contro

Model MODKITMIC001D · Manaras

Retrofit kit for adding Manaras Internet Control (MIC) Wi-Fi to an existing operator.

• Retro-fit kit for in-field installation with Nema 4X, retro-reflective, monitored photoelectric cells
• Compatible with "E" type operators
• The Wi-Fi control device (MIC) allows you to control and monitor a garage door remotely
• 1 door
• Free downloadable MIC Manaras Internet Control TM app, available for iOS and Android
• Easy connection and pairing
• Share access with multiple users (temporary or permanent access)
• Includes: MIC device (MIC001) , ECB BOARD070M with integrated MIC Wi-Fi compatibility software, monitored photoelectric cells (PHOTO065)

Ask about this part

Manaras POST001 Mounting post – Heavy gauge steel gooseneck post

Model POST001 · Manaras

Gooseneck post for mounting keypads or card readers at driver height.

• Heavy gauge steel gooseneck post, 42''H, for pad mount
• Goose neck post 90°
• Installation: Close proximity to the door
• Surface-mounted card reader / digital keypad
• Materials: Steel
• Dimensions (post): 42'' H
• Dimensions (faceplate): 4'' W x 4'' H D ■ Dimensions (baseplate): 5.69'' W x 5.69'' H
• Compatible with: CARDREADER017

Ask about this part

Manaras POWERBLOCK006 Power supply – 24VDC 1A power supply

Model POWERBLOCK006 · Manaras

Power supply for keypads and card readers.

• 24VDC 1A power supply
• Single output industrial power supply
• Installation: DIN rail mount, inside operator control box or separate control panel
• Power Supply: 110 to 240 V AC
• Output Specifications: 24 V DC , 1 A, 20 W
• UL 508, NEC class 2 / LPS compliant
• Operation Temperature: -20°C to 70°C (-4°F to 158°F)
• Dimensions: 0.88'' W x 3.54'' H x 3.93'' D

Ask about this part

Manaras RADIO029 Radio accessory – Commercial receiver antenna

Model RADIO029 · Manaras

Radio control accessory.

• Commercial receiver antenna
• Dimensions: 10.5'' L
• Includes: Antenna with BNC male connector
• Compatible with: receivers RADIO015, RADIO031, RADIO037, RADIORE900, RADIORE900A, RADIORE900B, RADIORE901, RADIORE901A, RADIORE901B

Ask about this part

Manaras RADIOEM101 Radio transmitter – Single-button transmitter

Model RADIOEM101 · Manaras

Radio transmitter (remote) for opening and closing the door.

• Single-button transmitter, operates 1 door, SBC or open / close function
• Hand held or visor mount
• Rolling code technology
• One-button transmitter
• 1 door (SD)
• Function: Open / close / stop (configurable on operators equipped with an ECB) or open / close
• Nema 1
• Range: 100' (approx.)

Ask about this part

Manaras RADIOEM102 Radio transmitter – Three-button key chain transmitter

Model RADIOEM102 · Manaras

Radio transmitter (remote) for opening and closing the door.

• Three-button key chain transmitter, operates up to 3 doors, SBC or open / close function, or operates 1 door open / close / stop function
• Hand held or keychain attachment
• Rolling code technology
• Three-button transmitter
• Configurable as 1 door (SD) or 1-3 doors (MD)
• Function SD: Open / close / stop
• Function MD: Open / close / stop (configurable on operators equipped with an ECB) or open / close
• Nema 1

Ask about this part

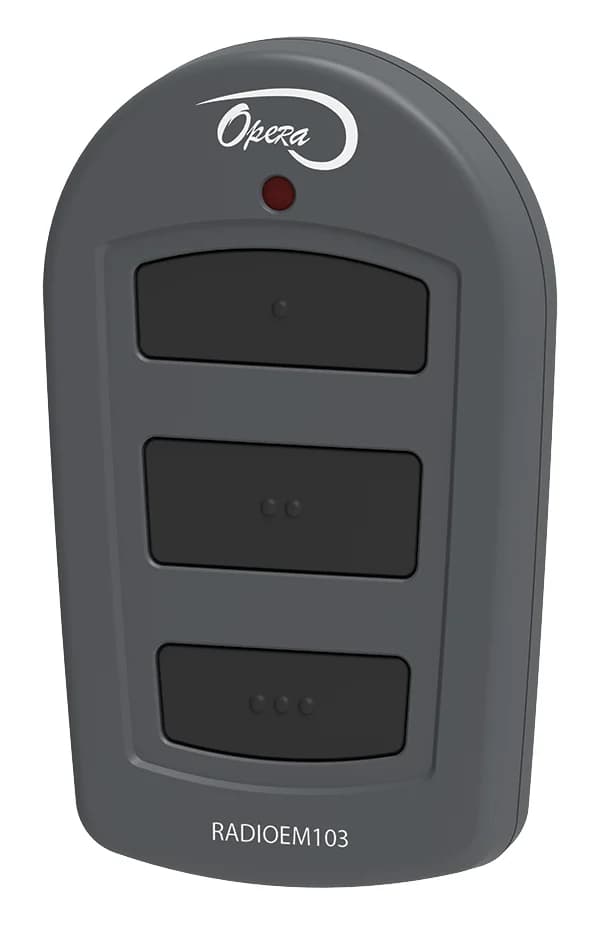

Manaras RADIOEM103MD Radio transmitter – Three-button transmitter

Model RADIOEM103MD · Manaras

Radio transmitter (remote) for opening and closing the door.

• Three-button transmitter, operates up to 3 doors, SBC or open / close function
• Hand held or visor mount
• Rolling code technology
• Three-button transmitter
• 1-3 doors (MD)
• Function: Open / close / stop (configurable on operators equipped with a ECB) or open / close
• Configurable as RADIOEM103SD (1 door)
• Nema 1

Ask about this part

Manaras RADIOEM103SD Radio transmitter – Three-button transmitter

Model RADIOEM103SD · Manaras

Radio transmitter (remote) for opening and closing the door.

• Three-button transmitter, operates 1 door, open / close / stop function
• Hand held or visor mount
• Rolling code technology
• Three-button transmitter
• 1 door (SD)
• Function: Open / close / stop
• Configurable as RADIOEM103MD (1 to 3 doors)
• Nema 1

Ask about this part

Manaras RADIOEM104 Radio transmitter – Four-button transmitter

Model RADIOEM104 · Manaras

Radio transmitter (remote) for opening and closing the door.

• Four-button transmitter, operates up to 4 doors, SBC or open / close function
• Hand held or visor mount
• Rolling code technology
• Four-button transmitter
• 1-4 doors (MD)
• Function: Open / close / stop (configurable on operators equipped with an ECB) or open / close
• Nema 1
• Range: 100' (approx.)

Ask about this part

Manaras RADIOEM144 Radio transmitter – Three-button transmitter

Model RADIOEM144 · Manaras

Radio transmitter (remote) for opening and closing the door.

• Three-button transmitter, operates up to 144 doors, open / close / stop function
• Hand held or wall mount
• Rolling code technology
• Three-button transmitter
• 1-144 doors
• Function: Open / close / stop
• Nema 1
• Range: 100' (approx.)

Ask about this part

Manaras RADIOEM901 Radio transmitter – Single-button key chain transmitter

Model RADIOEM901 · Manaras

Radio transmitter (remote) for opening and closing the door.

• Single-button key chain transmitter, operates 1 door, SBC or open / close function
• Hand held or keychain attachment
• Fixed code (dip switch) technology
• One-button transmitter
• 1 door
• Function: Open / close
• Nema 1
• Range: 100' (approx.)

Ask about this part

Manaras RADIOEM903 Radio transmitter – Three-button transmitter

Model RADIOEM903 · Manaras

Radio transmitter (remote) for opening and closing the door.

• Three-button transmitter, operates up to 3 doors, SBC or open / close function
• Hand held or visor mount
• Fixed code (dip switch) technology
• Three-button transmitter
• 1-3 doors
• Function: Open / close
• Nema 1
• Range: 100' (approx.)

Ask about this part

Manaras RADIOEM932 Radio transmitter – Three-button transmitter

Model RADIOEM932 · Manaras

Radio transmitter (remote) for opening and closing the door.

• Three-button transmitter, operates up to 32 doors, open / close / stop function
• Hand held or wall mount
• Fixed code (dip switch) technology
• Three-button transmitter
• 1-32 doors
• Function: Open / close / stop
• Nema 1
• Range: 100' (approx.)

Ask about this part

Manaras RADIOKIT004 Radio receiver kit – Direct ECB plug-in receiver card kit RADIORE101C (on-site installation)

Model RADIOKIT004 · Manaras

Plug-in radio receiver kit for the BOARD070 control board.

• Direct ECB plug-in receiver card
• On-site installation kit
• Rolling code technology
• 1 door
• Compatible with up to 50 transmitters per receiver
• Range: 100' approx.
• Dimensions: 2'' W x 1.75'' H x 1.13'' D
• Power Supply: Self-powered by ECB main

Ask about this part

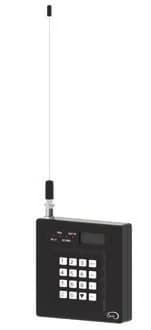

Manaras RADIORE102 Radio receiver – External radio receiver

Model RADIORE102 · Manaras

Radio receiver that adds remote control to an operator.

• External radio receiver, 1000 transmitters max. / receiver
• Wall mount
• External radio receiver
• Rolling code technology
• Sixteen-button digital keypad
• 1 door
• Compatible with up to 1000 transmitters per receiver
• Nema 1

Ask about this part

Manaras RADIORE901 Radio receiver – Commercial universal receiver

Model RADIORE901 · Manaras

Radio receiver that adds remote control to an operator.

• Commercial universal receiver, compatible with rolling code and fixed code (dip switch) tech., controls 1 operator, 50 transmitters max. / receiver for rolling code (unlimited for fixed code) controls 1 operator, 50 transmitters max. / receiver for rolling code (unlimited for fixed code)
• Wall mount
• Universal receiver
• Rolling code and fixed code (dip switch) technology
• 1 door
• Compatible with up to 50 transmitters per receiver
• Nema 1
• Range: 100' (approx.)

Ask about this part

Manaras RADIORE901A Radio receiver – Same as RADIORE901

Model RADIORE901A · Manaras

Radio receiver that adds remote control to an operator.

• Same as RADIORE901, includes commercial antenna for increased range
• Wall mount
• Universal Receiver
• Rolling code and fixed code (dip switch) technology
• 1 door
• Compatible with up to 50 transmitters per receiver
• Nema 1
• Range: 100' (approx.)

Ask about this part

Manaras RADIORE901B Radio receiver – Same as RADIORE901

Model RADIORE901B · Manaras

Radio receiver that adds remote control to an operator.

• Same as RADIORE901, Nema 4/12-4X steel enclosure, includes commercial receiver antenna
• Wall mount
• Universal receiver
• Rolling code and fixed code (dip switch technology
• 1 door
• Compatible with up to 50 transmitters per receiver
• Nema 4/12 - 4X enclosure
• Range: 100' (approx.)

Ask about this part

Garage Door Safety Sensors87 items

Manaras ADAPTER051 Hose adapter – Connection adapter

Model ADAPTER051 · Manaras

Adapter fitting for pneumatic hose assemblies.

• Connection adapter, compatible with AIRSWITCH015/017, HOSE001/009
• Connection adapter, 0.09'' to 0.5'' Ø, for air hose with 0.38'' or 0.5" inside Ø
• Compatible with: AIRSWITCH015, AIRSWITCH016, AIRSWITCH017A, HOSE001, HOSE009
• Used in: AIRSWITCH015A, AIRSWITCH016B, PNEUMATIC017A, PNEUMATIC021, TREADLE002A

Ask about this part

Manaras AIRSWITCH001 Air switch – Air switch, hazardous location enclosure

Model AIRSWITCH001 · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Air switch, hazardous location enclosure, N.O. contact, 2-wire output
• Air switch
• Hazardous locations
• Materials: Aluminum
• Nema enclosure 3, 4 NEC Class I, Div 1 and 2, Groups B, C, D NEC Class II, Div 1 and 2, Groups E, F, G NEC Class III
• Type: 2-wires / NO, non-monitored
• Compatible with: ADAPTER043, COILHOSE001, COILHOSE002
• Used in: PNEUMATIC006

Ask about this part

Manaras AIRSWITCH007 Air switch – Air switch, SPDT type N.O. & N.C. contacts

Model AIRSWITCH007 · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Air switch, SPDT type N.O. & N.C. contacts, adjustable
• Air switch
• Type: 2-wires / SPDT (NO and NC)
• Materials: Plastic
• Use with: Junction box AIRSWITCH008
• Includes: Junction gasket
• Compatible with: HOSE001
• Used in: PNEUMATIC004, PNEUMATIC005, PNEUMATIC009

Ask about this part

Manaras AIRSWITCH008 Air switch – Aluminum junction box for AIRSWITCH007

Model AIRSWITCH008 · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Aluminum junction box for AIRSWITCH007
• Junction box
• Materials: Aluminum
• Use with: AIRSWITCH007
• Used in: PNEUMATIC004, PNEUMATIC005, PNEUMATIC009

Ask about this part

Manaras AIRSWITCH015A Air switch – Air switch, SPDT type N.O. & N.C. contacts

Model AIRSWITCH015A · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Air switch, SPDT type N.O. & N.C. contacts, N4X enclosure, includes adapter for HOSE001/009
• Air switch kit
• Type: 2-wires / SPST (NO), non-monitored
• Materials: Polycarbonate (air switch), silicone (tube)
• Power Supply: 220 V AC , 0.5 A max.; 48 V 1 A max.
• Dimensions: 6.63'' W x 1.75'' H x 1.75'' D
• Dimensions (tube): 0.09'' inside Ø x 12'' L
• Adaptater for tube with 0.5'' inside Ø ( HOSE009 and 0.38'' (HOSE001)

Ask about this part

Manaras AIRSWITCH016A Air switch – Kit including IP65 rated air switch

Model AIRSWITCH016A · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Kit including IP65 rated air switch, SPST type unipolar N.O. contact, end and angle plugs, compatible with HOSE010
• Air switch kit
• Type: 2-wires / SPST (NO), non-monitored
• Materials: ABS (enclosure), silicone (tube)
• Power Supply: 220 V AC , 0.5 A max. DC , ■ Dimensions: 3.97'' W x 1.91'' H x 1.89'' D
• Dimensions (tube): 0.09'' inside Ø x 6'' L
• IP65 enclosure
• Includes: Air switch, end and angle plugs, ) tube

Ask about this part

Manaras AIRSWITCH016B Air switch – Air switch kit

Model AIRSWITCH016B · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Air switch kit
• Type: 2-wires / SPST (NO), non-monitored
• Materials: ABS (enclosure), silicone (tube)
• Power Supply: 220 V AC , 0.5 A max.
• Dimensions: 3.97'' W x 1.91'' H x 1.89'' D
• Dimensions (tube): 0.09'' inside Ø x 6'' L
• Adaptater for tube with 0.5'' inside Ø ( HOSE009 ) and 0.38'' (HOSE001)
• IP65 enclosure

Ask about this part

Manaras AIRSWITCH017A Air switch – Wireless air switch with embedded transmitter and receiver

Model AIRSWITCH017A · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Wireless air switch with embedded transmitter and receiver
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Materials (air switch / transmitter): ABS (enclosure), silicone (tube)
• Materials (receiver enclosure): ABS / PA6 30% FV / TPE
• Dimensions (air switch / transmitter): 3.97'' W x 1.91'' H x 1.89'' D
• Dimensions (receiver): 1.5'' W x 3'' H x 0.5'' D
• Dimensions (tube): 0.09'' inside Ø x 6'' L
• Nema 4 enclosure

Ask about this part

Manaras AIRSWITCH018 Air switch – Air switch, SPDT type N.O. & N.C. contacts

Model AIRSWITCH018 · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Air switch, SPDT type N.O. & N.C. contacts, ABS housing
• Air switch
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Materials: ABS
• Nema 12 enclosure
• Dimensions: 5.25" W x 2.125" H x 2.125" D
• Compatible with: HOSE001, HOSE009
• Used in: PNEUMATIC007, PNEUMATIC008, TREADLE002

Ask about this part

Manaras AIRSWITCH019 Air switch – Airwave wireless switch with embedded transmitter plus receiver

Model AIRSWITCH019 · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Airwave wireless switch with embedded transmitter plus receiver
• Wireless air switch with embedded transmitter and receiver
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Materials (air switch / transmitter): ABS (enclosure), silicone (tube)
• Power Supply: 10 to 40 V DC / 10 to 30 V AC, 50 mA max.
• Dimensions (air switch / transmitter): 3.29'' W x 1.7'' H x 1.95'' D
• Dimensions (receiver): 3.75'' W x 4.9'' H x 1.2'' D
• Dimensions (tube): 0.09'' inside Ø x 12'' L

Ask about this part

Manaras AIRSWITCH020 Air switch – Airwave switch, N.O. contact

Model AIRSWITCH020 · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Airwave switch, N.O. contact, 2-wire output, ABS housing with silicone tubing
• Air switch
• Type: 2-wires / NO, non-monitored
• Materials: ABS (enclosure), silicone (tube)
• Dimensions: 3.29'' W x 1.7'' H x 1.95'' D
• Dimensions (tube): 0.09'' inside Ø x 12'' L
• Compatible with: ADAPTER051 (HOSE001, HOSE009), PLUG012 (HOSE010)

Ask about this part

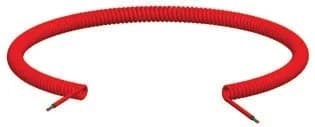

Manaras COIL003 Coil cord – Coil cord, 4-wire, 18 gauge

Model COIL003 · Manaras

Coiled cord that links a door-mounted edge to the operator while the door travels.

• Coil cord, 4-wire, 18 gauge, 20' extension
• Curly coil cord
• Cables: 4-wire
• 18 gauge
• Max. Cord Extension: 20'
• Color: Red-orange
• For 25' max. extension (black only) order: COIL010

Ask about this part

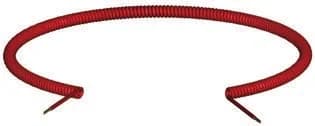

Manaras COIL007 Coil cord – Coil cord, 3-wire, 18 gauge

Model COIL007 · Manaras

Coiled cord that links a door-mounted edge to the operator while the door travels.

• Coil cord, 3-wire, 18 gauge, 20' extension
• Curly coil cord
• Cables: 3-wire
• 18 gauge
• Max. Cord Extension: 20'
• Color: Red-orange

Ask about this part

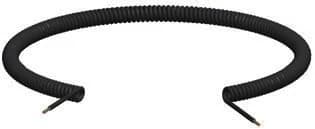

Manaras COIL010 Coil cord – Coil cord, 4-wire, 18 gauge

Model COIL010 · Manaras

Coiled cord that links a door-mounted edge to the operator while the door travels.

• Coil cord, 4-wire, 18 gauge, 25' extension
• Curly coil cord
• Cables: 4-wire
• 18 gauge
• Max. Cord Extension: 25'
• Color: Black
• For 20' max. extension (red-orange) order: COIL003

Ask about this part

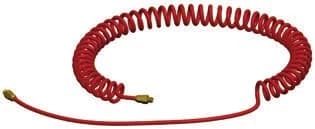

Manaras COILHOSE001 Coiled air hose – Recoil air hose with brass connector for PNEUMATIC006

Model COILHOSE001 · Manaras

Coiled air hose used with pneumatic edges and treadles.

• Recoil air hose with brass connector for PNEUMATIC006
• Recoil air hose
• Material: Polyurethane
• Max. Cord Extension: 25'
• 1/4" EPT swivel fittings
• Operation Temperature: -36°C to 65°C (-34°F to 150°F)
• Used in: PNEUMATIC006
• Compatible with: ADAPTER043, AIRSWITCH001, COILHOSE002

Ask about this part

Manaras CONNECTSET001 Connection set – Connection set for PHOTO061

Model CONNECTSET001 · Manaras

Conduit and junction-box set for wiring photo eyes or edges in conduit.

• Connection set for PHOTO061, SENSEDGE042 includes 3' flexible conduit 3/16'', junction box, hardware
• Junction box and connection set for photoelectric cell installation applications which require all wiring to be done in a conduit
• Includes: Fittings to cover both sides of the door; flexible stainless steel conduit (3' W x 3/16" Ø) (x2), junction box (x2), wire nuts
• Not included: Photoelectric cells
• Compatible with: PHOTO061 / 061A, SENSEDGE042, etc.

Ask about this part

Manaras HOOD001 Photo eye hood – Sunlight reflection protection hood

Model HOOD001 · Manaras

Sun hood that shields a photo-eye receiver from reflections.

• Sunlight reflection protection hood, compatible with PHOTO061 receiver unit
• Sunlight protection hood / visor
• To be installed on the receiver unit of compatible thru-beam type photoelectric cells to increase transmission accuracy
• Dimensions: 1.5'' W x 1'' Ø
• Includes: Hood, hardware
• Compatible with: PHOTO061 / 061A (receivers)

Ask about this part

Manaras HOOD002 Photo eye hood – Sunlight protection hood / visor

Model HOOD002 · Manaras

Sun hood that shields a photo-eye receiver from reflections.

• Sunlight protection hood / visor
• To be installed on receiver unit of compatible thru-beam type photoelectric cells to increase transmission accuracy
• Dimensions: 0.71'' W x 0.47'' Ø
• Includes: Hood

Ask about this part

Manaras HOSE001 Pneumatic edge hose – Air hose, soft rubber

Model HOSE001 · Manaras

Hose for building a pneumatic sensing edge.

• Air hose, soft rubber, EPT/EPDM, 3/8'' inside diameter, 9/16'' outside diameter
• Air hose
• Materials: EPT / EPDM
• 0.38'' inside Ø / 0.57'' outside Ø
• Compatible with: AIRSWITCH015A, PLUG005, PLUG023, PNEUMATIC004, PNEUMATIC005, PNEUMATIC006, PNEUMATIC007, PNEUMATIC008, PNEUMATIC009, PNEUMATIC017A, PNEUMATIC021
• When ordering with pneumatic sensing edge kits: order according to door width + 2'

Ask about this part

Manaras HOSE009 Pneumatic edge hose – Air hose, soft rubber

Model HOSE009 · Manaras

Hose for building a pneumatic sensing edge.

• Air hose, soft rubber, EPT/EPDM, 1/2'' inside diameter, 3/4'' outside diameter
• Air hose
• Materials: EPT / EPDM
• 0.5'' inside Ø / 0.75'' outside Ø
• Compatible with: AIRSWITCH015A, PLUG005, PLUG023, PNEUMATIC017A
• When ordering with pneumatic sensing edge kits: order according to door width + 2'

Ask about this part

Manaras HOSE010 Pneumatic edge hose – Air hose with rubber profile

Model HOSE010 · Manaras

Hose for building a pneumatic sensing edge.

• Air hose with rubber profile for pneumatic edge to be built in the field
• Materials: Soft rubber
• Section: 0.75'' inside Ø / 1'' outside Ø + 2 edges to be inserted in mounting channel
• Compatible with: AIRSWITCH016A, PNEUMATIC021A, SENSEDGE042

Ask about this part

Manaras INTERFACE001 Interface module – Interface module enables the connection of monitored photoelectric cells to a Bo

Model INTERFACE001 · Manaras

Interface module that lets a safety device talk to an operator control it was not built for.

• Interface module enables the connection of monitored photoelectric cells to a Board or Electromechanical control without monitored function, compatible with PHOTO045M/061/065/070 Electromechanical control without monitored function, compatible with PHOTO045M/061/065/070 Electromechanical control without monitored function, compatible with PHOTO045M/061/065/070
• Interface module
• Enables the connection of monitored photoelectric cells to an electronic / electromechanical control without monitoring function
• Interior use
• Nema 1 enclosure
• Materials: Plastic
• Operation Temperature: -30°C to 70°C (-22°F to 158°F)
• Power Supply: 24 V AC /V DC

Ask about this part

Manaras INTERFACE002 Interface module – Interface module for 10kOhms resistor edges

Model INTERFACE002 · Manaras

Interface module that lets a safety device talk to an operator control it was not built for.

• Interface module for 10kOhms resistor edges, to be used with SENSEDGE007UM/018UM/044UM/046M
• Interface module
• For 10 kΩ sensing edge, designed to ensure compatibility with Manaras electronic controls
• UL325 Recognized Component
• Interior use
• Nema 4 enclosure
• Materials: ABS / epoxy potting (module), galvanized steel (junction box)
• Operation Temperature: -35°C to 70°C (-31°F to 158°F)

Ask about this part

Manaras INTERFACE003 Interface module – Y-connect signal merging module

Model INTERFACE003 · Manaras

Interface module that lets a safety device talk to an operator control it was not built for.

• Y-connect signal merging module, N4, compatible with 2 x monitored entrapment protection devices. Compatible primary devices: PHOTO061/065/070. Secondary devices: monitored photoelectric cells, light curtains, electric sensing edges and / or non-contact sensing edges Compatible primary devices: PHOTO061/065/070. Secondary devices: monitored photoelectric cells, light curtains, electric sensing edges and / or non-contact sensing edges Compatible primary devices: PHOTO061/065/070. Secondary devices: monitored photoelectric cells, light curtains, electric sensing edges and / or non-contact sensing edges devices. Compatible primary devices: PHOTO061/065/070. Secondary devices: monitored photoelectric cells, light curtains, electric sensing edges and / or non-contact sensing edges devices. Compatible primary devices: PHOTO061/065/070. Secondary devices: monitored photoelectric cells, light curtains, electric sensing edges and / or non-contact sensing edges
• Interface module
• Used to merge two monitored devices on the same monitored input on the ECB
• Interior / exterior use
• Nema 4 enclosure
• Materials: ABS / PA6 30% GF / TPE
• Operation Temperature: -25°C to 75°C (-13°F to 167°F)
• Power Supply: 24 V AC /V DC , 15 mA

Ask about this part

Manaras INTERFACE005 Interface module – Controller for LIGHTCURTAIN003/004

Model INTERFACE005 · Manaras

Interface module that lets a safety device talk to an operator control it was not built for.

• Controller for LIGHTCURTAIN003/004, PHOTO067/068A/B
• Interface module
• Controller for non-contact opto sensing edges and light curtains
• UL325 Recognized Component
• Interior / exterior use
• Nema 4 enclosure
• Materials: Polycarbonate
• Operation Temperature: -18°C to 55°C (-0°F to 131°F)

Ask about this part

Manaras LIGHTCURTAIN001 Light curtain – Monitored, invisible curtain of protection 36'' detection height

Model LIGHTCURTAIN001 · Manaras

Monitored light curtain that guards the door opening with an invisible curtain of infrared beams.

• Monitored, invisible curtain of protection 36'' detection height, thru-beam type, IP67 enclosure, 12-24VAC/VDC (10VDC min.) 100mA max. at 24VDC, 32' range
• Monitored
• UL325 Recognized Component
• Type: Thru-beam
• Range: 32' (approx.)
• Detection Height: 36''
• Interior / exterior use
• IP67 enclosure

Ask about this part

Manaras LIGHTCURTAIN002 Light curtain – Monitored, invisible curtain of protection 72'' detection height

Model LIGHTCURTAIN002 · Manaras

Monitored light curtain that guards the door opening with an invisible curtain of infrared beams.

• Monitored, invisible curtain of protection 72'' detection height, thru-beam type, IP67 enclosure, 12-24VAC/VDC (10VDC min.) 100mA max. at 24VDC, 32' range
• Monitored
• UL325 Recognized Component
• Type: Thru-beam
• Range: 32' (approx.)
• Detection Height: 72''
• Interior / exterior use
• IP67 enclosure

Ask about this part

Manaras LIGHTCURTAIN003 Light curtain – Non-monitored, invisible curtain of protection 36'' detection height

Model LIGHTCURTAIN003 · Manaras

Non-monitored light curtain that guards the door opening with an invisible curtain of infrared beams.

• Non-monitored, invisible curtain of protection 36'' detection height, thru-beam type, IP67 enclosure, 12-24VAC/VDC (10VDC min.) 100mA max. at 24VDC, 32' range, includes INTERFACE005
• Non-monitored
• UL325 Recognized Component
• Type: Thru-beam
• Range: 32' (approx.)
• Detection Height: 36''
• Interior / exterior use
• IP67 enclosure

Ask about this part

Manaras LIGHTCURTAIN004 Light curtain – Non-monitored, invisible curtain of protection 72'' detection height

Model LIGHTCURTAIN004 · Manaras

Non-monitored light curtain that guards the door opening with an invisible curtain of infrared beams.

• Non-monitored, invisible curtain of protection 72'' detection height, thru-beam type, IP67 enclosure, 12-24VAC/VDC (10VDC min.) 100mA max. at 24VDC, 32' range, includes INTERFACE005
• Non-monitored
• UL325 Recognized Component
• Type: Thru-beam
• Range: 32' (approx.)
• Detection Height: 72''
• Interior / exterior use
• IP67 enclosure

Ask about this part

Manaras PHOTO008C3 Non-monitored thru-beam Photo Eye

Model PHOTO008C3 · Manaras

Non-monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Non-monitored, N4X enclosure, thru-beam type, indoor, 24V, 45' range, includes interface module
• Photoelectric cells and interface module
• Renders any monitored photoelectric cell compatible with non-monitored controls
• Various combinations available: PHOTO008C3 (includes PHOTO061 ), PHOTO008D1 (includes PHOTO065 ), PHOTO008E1 (includes PHOTO070 )
• For replacement interface module order: INTERFACE001

Ask about this part

Manaras PHOTO008D1 Non-monitored retro-reflective Photo Eye

Model PHOTO008D1 · Manaras

Non-monitored retro-reflective photo eye that stops and reverses the door when the beam is blocked.

• Non-monitored, N4X enclosure, retro-reflective type, indoor, 24V, 5-50' range, includes interface module
• Photoelectric cells and interface module
• Renders any monitored photoelectric cell compatible with non-monitored controls
• Various combinations available: PHOTO008C3 (includes PHOTO061 ), PHOTO008D1 (includes PHOTO065 ), PHOTO008E1 (includes PHOTO070 )
• For replacement interface module order: INTERFACE001

Ask about this part

Manaras PHOTO008E1 Non-monitored thru-beam Photo Eye

Model PHOTO008E1 · Manaras

Non-monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Non-monitored, N1 enclosure, thru-beam type, indoor, 24V, 5-45' range, includes interface module
• Photoelectric cells and interface module
• Renders any monitored photoelectric cell compatible with non-monitored controls
• Various combinations available: PHOTO008C3 (includes PHOTO061 ), PHOTO008D1 (includes PHOTO065 ), PHOTO008E1 (includes PHOTO070 )
• For replacement interface module order: INTERFACE001

Ask about this part

Manaras PHOTO024 Reflector – Photoelectric cell reflector 3'' Ø

Model PHOTO024 · Manaras

Reflector for retro-reflective photo eyes.

• Photoelectric cell reflector 3'' Ø, compatible with PHOTO060
• Reflector
• Materials: Clear acrylic
• Dimensions: 0.37" W x 3.08'' Ø
• Includes: Reflector
• Compatible with: PHOTO060

Ask about this part

Manaras PHOTO045 Non-monitored thru-beam Photo Eye

Model PHOTO045 · Manaras

Non-monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Non-monitored, N4X aluminum hood (PHOTO015), infrared thru-beam type, exterior, 12-24V
• Non-monitored (NO / NC relay output)
• Type: Thru-beam
• Range: 3' to 115' (approx.)
• Interior / exterior use
• Nema 4X enclosure
• Materials: Polystyrene, polycarbonate cover (photocells), anodized aluminum (protective hoods)
• Operation Temperature: -40°C to 77°C (-40°F to 171°F)

Ask about this part

Manaras PHOTO045M Monitored thru-beam Photo Eye

Model PHOTO045M · Manaras

Monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Monitored, N4X aluminum hood (PHOTO015), infrared thru-beam type, exterior, 12-24V
• Monitored
• Type: Thru-beam
• Range: 3' to 115' (approx.)
• Interior / exterior use
• Nema 4X enclosure
• Materials: Polystyrene, polycarbonate cover (photocells), anodized aluminum (protective hoods)
• Operation Temperature: -40°C to 77°C (-40°F to 171°F)

Ask about this part

Manaras PHOTO059 Non-monitored thru-beam Photo Eye rated for hazardous locations

Model PHOTO059 · Manaras

Non-monitored thru-beam photo eye rated for hazardous locations that stops and reverses the door when the beam is blocked.

• Non-monitored, infrared modulated thru-beam type, harsh industrial environment, N4/7 Class I-Gr B/C/D, Class II-Gr E/F/G, Class III and IEC IP66, EExd IIC
• Non-monitored (NO / NC relay output)
• Type: Thru-beam
• Range: 3' to 115' (approx.)
• Classified hazardous location
• Nema 4X and 7 enclosure, NEC Class I Groups B / C / D, Class II Groups E / F / G, Class III, EExd IIC
• Materials: Aluminum die-cast, epoxy coating
• Operation Temperature: -40°C to 77°C (-40°F to 171°F)

Ask about this part

Manaras PHOTO060 Non-monitored retro-reflective Photo Eye

Model PHOTO060 · Manaras

Non-monitored retro-reflective photo eye that stops and reverses the door when the beam is blocked.

• Non-monitored, N4/12 & IP67 enclosure, retro-reflective type, exterior, 39' range, includes 3'' Ø reflector
• Non-monitored (NO / NC relay output)
• UL325 Recognized Component
• Type: Retro-reflective
• Range: 39' (approx.)
• Interior / exterior use
• Nema 4/12, IP67 enclosure
• Materials: Reinforced ABS-PC

Ask about this part

Manaras PHOTO061 Monitored thru-beam Photo Eye

Model PHOTO061 · Manaras

Monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Monitored, N4X enclosure, thru-beam type, 4-wire, industrial environment, 45' range
• Monitored
• UL325 Recognized Component
• Type: Thru-beam
• Range: 5' to 45' (approx.)
• Industrial environments
• Nema 4X, IP65 enclosure
• Materials: Thermoplastic elastomer (TPE)

Ask about this part

Manaras PHOTO065 Monitored retro-reflective Photo Eye

Model PHOTO065 · Manaras

Monitored retro-reflective photo eye that stops and reverses the door when the beam is blocked.

• Monitored, N4X enclosure, retro-reflective type, 2-wire, harsh environment, 5-50' range
• Monitored
• UL325 Recognized Component
• Type: Retro-reflective
• Range: 5' to 40' (approx.)
• Harsh environments
• Nema 4X, IP65 enclosure
• Materials: Polyamide and steel

Ask about this part

Manaras PHOTO070 Monitored thru-beam Photo Eye

Model PHOTO070 · Manaras

Monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Monitored, N1 enclosure, thru-beam type, 2-wire, indoor, 45' range
• Monitored
• UL325 Recognized Component
• Type: Thru-beam
• Range: 5' to 45' (approx.)
• Interior use
• Nema 1 enclosure
• Materials: ABS-PC

Ask about this part

Manaras PHOTO072 Reflector – Photoelectric cell reflector

Model PHOTO072 · Manaras

Reflector for retro-reflective photo eyes.

• Photoelectric cell reflector, compatible with PHOTO008D1/065
• Reflector
• Dimensions: 0.5" W x 3.5'' H x 2'' D
• Includes: Reflector
• Compatible with: PHOTO008D1, PHOTO065

Ask about this part

Manaras PHOTO073 Non-monitored retro-reflective Photo Eye rated for hazardous locations

Model PHOTO073 · Manaras

Non-monitored retro-reflective photo eye rated for hazardous locations that stops and reverses the door when the beam is blocked.

• Non-monitored, intrinsically safe for hazardous locations, retro-reflective type, exterior, 5-15VDC, 30' range, includes 3'' Ø reflector
• Non-monitored
• Type: Retro-reflective
• Range: 30' (approx.)
• Classified hazardous location
• Nema 6P, IEC IP67, NAMUR enclosure
• Materials: Polyester (enclosure), acrylic (lens), stainless steel (hardware)
• Operation Temperature: -40°C to 70°C (-40°F to 158°F)

Ask about this part

Manaras PHOTO074 Reflector – Photoelectric cell reflector 3'' Ø

Model PHOTO074 · Manaras

Reflector for retro-reflective photo eyes.

• Photoelectric cell reflector 3'' Ø, compatible with PHOTO073
• Reflector
• Material: clear acrylic
• Dimensions: 0.28'' W 3.19'' Ø
• Includes: Reflector
• Compatible with: PHOTO073

Ask about this part

Manaras PHOTO075 Non-monitored retro-reflective Photo Eye

Model PHOTO075 · Manaras

Non-monitored retro-reflective photo eye that stops and reverses the door when the beam is blocked.

• Non-monitored, IP67 enclosure, retro-reflective type, exterior, 24V, 0.5'-32' range
• Non-monitored (NO / NC relay output)
• UL325 Recognized Component
• Type: Retro-reflective
• Range: 32' (approx.)
• Interior / exterior use
• IP67 enclosure
• Materials: ABS, PMMA (photocell, reflector), zinc-plated steel (bracket)

Ask about this part

Manaras PHOTO076 Reflector – Photoelectric cell reflector 2'' x 2''

Model PHOTO076 · Manaras

Reflector for retro-reflective photo eyes.

• Photoelectric cell reflector 2'' x 2'', compatible with PHOTO075
• Reflector
• Materials: ABS, PMMA
• Dimensions: 0.31" W x 2.02" H x 2.02" D
• Includes: Reflector
• Compatible with: PHOTO075

Ask about this part

Manaras PHOTO077 Non-monitored thru-beam Photo Eye

Model PHOTO077 · Manaras

Non-monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Non-monitored, IP67 enclosure, thru-beam type, exterior, 24V, 114-131' range
• Non-monitored (NO / NC relay output)
• UL325 Recognized Component
• Type: Thru-beam
• Range: 114' to 130' (approx.)
• Interior / exterior use
• IP67 enclosure
• Materials: ABS, PMMA (photocells), zinc-plated steel (brackets)

Ask about this part

Manaras PLUG005 Pneumatic edge plug – Air hose plug for HOSE001

Model PLUG005 · Manaras

Plug or fitting for sealing and connecting pneumatic edge hose.

• Air hose plug for HOSE001
• Air hose plug
• Materials: Rubber
• Compatible with: HOSE001, HOSE009
• Used in: PNEUMATIC004, PNEUMATIC005, PNEUMATIC006, PNEUMATIC007, PNEUMATIC008, PNEUMATIC009, PNEUMATIC017A, PNEUMATIC021, TREADLE002, TREADLE002A

Ask about this part

Manaras PLUG011 Pneumatic edge plug – Air hose plug for HOSE010

Model PLUG011 · Manaras

Plug or fitting for sealing and connecting pneumatic edge hose.

• Air hose plug for HOSE010
• Air hose end plug
• 0.86'' outside Ø
• Compatible with: HOSE010
• Used in: PNEUMATIC021A

Ask about this part

Manaras PLUG012 Pneumatic edge plug – Air hose plug for HOSE010

Model PLUG012 · Manaras

Plug or fitting for sealing and connecting pneumatic edge hose.

• Air hose plug for HOSE010
• Angled connector end plug
• 0.86'' outside Ø
• Compatible with: HOSE010
• Used in: PNEUMATIC021A

Ask about this part

Manaras PLUG023 Pneumatic edge plug – Air hose plug with hole

Model PLUG023 · Manaras

Plug or fitting for sealing and connecting pneumatic edge hose.

• Air hose plug with hole, compatible with HOSE001/009
• Air hose plug (with hole)
• Materials: Rubber
• Compatible with: HOSE001, HOSE009
• Used in: PNEUMATIC004, PNEUMATIC005, PNEUMATIC006, PNEUMATIC007, PNEUMATIC008, PNEUMATIC009, PNEUMATIC017A, PNEUMATIC021

Ask about this part

Manaras PNEUMATIC004 Pneumatic sensing edge kit – Pneumatic edge kit for doors up to 14' high

Model PNEUMATIC004 · Manaras

Pneumatic edge kit: an air switch senses pressure in the bottom hose and signals the operator to reverse.

• Pneumatic edge kit for doors up to 14' high, with SPDT air switch,14' coil cord, hose plug
• Pneumatic sensing edge kit
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Nema 1 enclosure (air switch)
• Materials: Plastic (air switch), aluminum (junction box)
• Coil cord: 2-wire cable, 18 gauge, 12' cord extension max.
• Rubber hose to be ordered separately according to door width + 2'
• Weather stripping not included (supplied by door manufacturer)

Ask about this part

Manaras PNEUMATIC005 Pneumatic sensing edge kit – Pneumatic edge kit for doors up to 20' high

Model PNEUMATIC005 · Manaras

Pneumatic edge kit: an air switch senses pressure in the bottom hose and signals the operator to reverse.

• Pneumatic edge kit for doors up to 20' high, with SPDT air switch, 20' take-up reel, hose plug
• Pneumatic sensing edge kit
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Nema 1 enclosure (air switch)
• Materials: Plastic (air switch), aluminum (junction box), metal (take-up reel)
• Take-up reel: 2-wire cable, 18 gauge, 20' cord extension max.
• Rubber hose to be ordered separately according to door width + 2'
• Weather stripping not included (supplied by door manufacturer)

Ask about this part

Manaras PNEUMATIC006 Pneumatic sensing edge kit – Hazardous location pneumatic edge kit for doors up to 20' high

Model PNEUMATIC006 · Manaras

Pneumatic edge kit: an air switch senses pressure in the bottom hose and signals the operator to reverse.

• Hazardous location pneumatic edge kit for doors up to 20' high, hazardous location air switch, 20' air coil, hose plug
• Pneumatic sensing edge kit
• Type: 2-wires / NO, non-monitored
• Materials: Aluminum (air switch), polyurethane (air coil hose)
• Hazardous locations, Nema enclosure 3, 4 NEC Class I, Div 1 and 2, Groups B, C, D NEC Class II, Div 1 and 2, Groups E, F, G NEC Class III (air switch)
• Rubber hose to be ordered separately according to door width + 2'
• Weather stripping not included (supplied by door manufacturer)
• Includes: Air switch, air coil hose (max. 25' ext.) with fittings, air hose plug

Ask about this part

Manaras PNEUMATIC007 Pneumatic sensing edge kit – Pneumatic edge kit for doors up to 14' high

Model PNEUMATIC007 · Manaras

Pneumatic edge kit: an air switch senses pressure in the bottom hose and signals the operator to reverse.

• Pneumatic edge kit for doors up to 14' high, with air switch, 14' coil cord, hose plug
• Pneumatic sensing edge kit
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Nema 1 enclosure (air switch)
• Materials: ABS (air switch)
• Coil cord: 2-wire cable, 18 gauge, 12' cord extension max.
• Rubber hose to be ordered separately according to door width + 2'
• Weather stripping not included (supplied by door manufacturer)

Ask about this part

Manaras PNEUMATIC008 Pneumatic sensing edge kit – Pneumatic edge kit for doors up to 20' high

Model PNEUMATIC008 · Manaras

Pneumatic edge kit: an air switch senses pressure in the bottom hose and signals the operator to reverse.

• Pneumatic edge kit for doors up to 20' high, with air switch, 20' take-up reel, hose plug
• Pneumatic sensing edge kit
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Nema 1 enclosure (air switch)
• Materials: ABS (air switch)
• Take-up reel: 2-wire cable, 18 gauge, 20' cord extension max.
• Rubber hose to be ordered separately according to door width + 2'
• Weather stripping not included (supplied by door manufacturer)

Ask about this part

Manaras PNEUMATIC009 Pneumatic sensing edge kit – Pneumatic edge kit for doors up to 30' high

Model PNEUMATIC009 · Manaras

Pneumatic edge kit: an air switch senses pressure in the bottom hose and signals the operator to reverse.

• Pneumatic edge kit for doors up to 30' high, with air switch, 30' take-up reel, hose plug
• Pneumatic sensing edge kit
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Nema 1 enclosure (air switch)
• Materials: Plastic (air switch), aluminum (junction box), metal (take-up reel)
• Take-up reel: 3-wire cable, 16 gauge, 30' cord extension max.
• Rubber hose to be ordered separately according to door width + 2'
• Weather stripping not included (supplied by door manufacturer)

Ask about this part

Manaras PNEUMATIC017A Pneumatic sensing edge kit – Pneumatic edge kit with N4/12 air switch

Model PNEUMATIC017A · Manaras

Pneumatic edge kit: an air switch senses pressure in the bottom hose and signals the operator to reverse.

• Pneumatic edge kit with N4/12 air switch, 30' 3-conductor take-up reel and accessories
• Pneumatic sensing edge kit
• Type: 2-wires / SPDT (NO), non-monitored
• Nema 4X enclosure (air switch)
• Materials: Polycarbonate (air switch), silicone (tube), metal (take-up reel)
• Take-up reel: 3-wire cable, 16 gauge, 30' cord extension max.
• Rubber hose to be ordered separately according to door width + 2'
• Weather stripping not included (supplied by door manufacturer)

Ask about this part

Manaras PNEUMATIC021 Pneumatic sensing edge kit – Pneumatic edge kit with N4 wireless air switch

Model PNEUMATIC021 · Manaras

Pneumatic edge kit: an air switch senses pressure in the bottom hose and signals the operator to reverse.

• Pneumatic edge kit with N4 wireless air switch, unipolar N.O. contact, hose plug and adapter
• Pneumatic sensing edge kit
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Nema 4 enclosure (air switch)
• Rubber hose to be ordered separately according to door width + 2'
• Weather stripping not included (supplied by door manufacturer)
• Includes: Air switch / transmitter, receiver, tube, adapter, air hose plug, 3V CR2032 lithium battery (Tx)
• Compatible with: HOSE001

Ask about this part

Manaras PNEUMATIC021A Pneumatic sensing edge kit – Pneumatic edge kit with N4 wireless air switch

Model PNEUMATIC021A · Manaras

Pneumatic edge kit: an air switch senses pressure in the bottom hose and signals the operator to reverse.

• Pneumatic edge kit with N4 wireless air switch, unipolar N.O. contact, end and angle plugs, compatible with HOSE010
• Pneumatic sensing edge kit
• Type: 2-wires / SPDT (NO and NC), non-monitored
• Nema 4 enclosure (air switch)
• Rubber hose to be ordered separately according to door width + 2'
• Weather stripping not included (supplied by door manufacturer)
• Includes: Air switch / transmitter, receiver, tube, air hose end plug, angled connector end plug, 3V CR2032 lithium battery (Tx)
• Compatible with: HOSE010

Ask about this part

Manaras REELITE003 Cord reel – Metal take-up reel

Model REELITE003 · Manaras

Retractable cord reel that carries a sensing-edge signal from the moving door to the operator.

• Metal take-up reel, 3-wire, 16 gauge, 30' extension
• Metal take-up reel
• Cables: 3-wire
• 16 gauge
• Max. Cord Extension: 30'
• Includes: Take-up reel, hanging bracket

Ask about this part

Manaras REELITE005 Cord reel – Metal take-up reel

Model REELITE005 · Manaras

Retractable cord reel that carries a sensing-edge signal from the moving door to the operator.

• Metal take-up reel, 2-wire, 18 gauge, 20' extension
• Metal take-up reel
• Cables: 2-wire
• 18 gauge
• Max. Cord Extension: 20'
• Includes: Take-up reel, hanging bracket

Ask about this part

Manaras SENSEDGE002 Sensing edge – Non-monitored, electric edge ME-110

Model SENSEDGE002 · Manaras

Non-monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Non-monitored, electric edge ME-110, 2-wire, E/R/L wire outlet location, vertical / horizontal mount, for counter shutters / emergency switches / conveyors syst. / rolling grilles / barrier arms
• For counter shutters, emergency switches, conveyor systems, rolling grills, barrier arms
• Industry Codification: ME-110
• Type: 2-wire / NO, non-monitored
• Wire Outlet Location: Options available
• Vertical or horizontal mount
• Section: 0.88'' W x 0.75'' H
• Min. / Max. Length: 4' / 40'

Ask about this part

Manaras SENSEDGE007 Sensing edge – Non-monitored, electric edge ME-113

Model SENSEDGE007 · Manaras

Non-monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Non-monitored, electric edge ME-113, 2-wire, E/R/L/U wire outlet location, vertical / horizontal mount, for sectional doors
• For sectional doors
• Industry Codification: ME-113
• Type: 2-wire / NO, non-monitored
• Wire Outlet Location: Universal, other options available
• Vertical or horizontal mount
• Section: 1.5'' W x 1.5'' H
• Min. / Max. Length: 4' / 40'

Ask about this part

Manaras SENSEDGE007UM Sensing edge – Monitored, electric edge ME-113

Model SENSEDGE007UM · Manaras

Monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Monitored, electric edge ME-113, 10kOhms resistor, 2-wire, E/R/L/U wire outlet location, vertical / horizontal mount, for sectional doors, to be used with INTERFACE002
• For sectional doors
• Industry Codification: ME-113
• Type: 2-wire, monitored
• UL325 Recognized Component
• Wire Outlet Location: Universal, other options available
• Vertical or horizontal mount
• Section: 1.5'' W x 1.5'' H

Ask about this part

Manaras SENSEDGE018U Sensing edge – Non-monitored, electric edge MT-22

Model SENSEDGE018U · Manaras

Non-monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Non-monitored, electric edge MT-22, 2-wire, E/R/L/U wire outlet location, horizontal mount, for rolling doors
• For rolling doors
• Industry Codification: MT-22
• Type: 2-wire / NO, non-monitored
• Wire Outlet Location: Universal, other options available
• Horizontal mount
• Section: 2'' W x 2'' H with 1.5'' flap
• Min. / Max. Length: 4' / 40'

Ask about this part

Manaras SENSEDGE018UM Sensing edge – Monitored, electric edge MT-22

Model SENSEDGE018UM · Manaras

Monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Monitored, electric edge MT-22, 10kOhms resistor, 2-wire, E/R/L/U wire outlet location, horizontal mount, for rolling doors, to be used with INTERFACE002
• For rolling doors
• Industry Codification: MT-22
• Type: 2-wire, monitored
• UL325 Recognized Component
• Wire Outlet Location: Universal, other options available
• Horizontal mount
• Section: 2'' W x 2'' H with 1.5'' flap

Ask about this part

Manaras SENSEDGE021 Sensing edge – Non-monitored, electric edge MU-22

Model SENSEDGE021 · Manaras

Non-monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Non-monitored, electric edge MU-22, 2-wire, E/R/L wire outlet location, vertical / horizontal mount, for sectional / aircraft hangar doors (sliding)
• For sectional doors / aircraft hangars (sliding doors)
• Industry Codification: MU-22
• Type: 2-wire / NO, non-monitored
• Wire Outlet Location: Options available
• Vertical or horizontal mount
• Section: 2'' W x 2'' H with 1.63'' flap
• Min. / Max. Length: 4' / 40'

Ask about this part

Manaras SENSEDGE040 Sensing edge – Non-monitored, electric edge MU-21

Model SENSEDGE040 · Manaras

Non-monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Non-monitored, electric edge MU-21, 2-wire, E/R/L/U wire outlet location, vertical / horizontal mount, for sectional doors
• For sectional doors
• Industry Codification: MU-21
• Type: 2-wire / NO, non-monitored
• Wire Outlet Location: Universal, other options available
• Vertical or horizontal mount
• Dimensions: 1.75'' W x 1'' H with 1.63'' flap
• Min. / Max. Length: 4' / 40'

Ask about this part

Manaras SENSEDGE042 Sensing edge – Monitored, opto sensing edge

Model SENSEDGE042 · Manaras

Monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Monitored, opto sensing edge, thru-beam type, includes modular bumpers, to be used with HOSE010
• Opto edge kit for sectional doors
• Monitored
• To be assembled in the field with HOSE010 (sold separately)
• UL325 Recognized Components (active), Nema 4X, IP65
• Operation Temperature: -25°C to 74°C (-13°F to 165°F)
• Power Supply: Self-powered by ECB main controller
• Mounting channels available

Ask about this part

Manaras SENSEDGE044U Sensing edge – Non-monitored, electric edge ME-123

Model SENSEDGE044U · Manaras

Non-monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Non-monitored, electric edge ME-123, 2-wire, universal wire outlet location,vertical / horizontal mount, for sectional doors / sliding gates / conveyors / presses
• For sectional doors, sliding gates
• Industry Codification: ME-123
• Type: 2-wire / NO, non-monitored
• Wire Outlet Location: Universal
• Vertical or horizontal mount
• Section: 2'' W x 1.5" H
• Min. / Max. Length: 6' / 40'

Ask about this part

Manaras SENSEDGE044UM Sensing edge – Monitored, electric edge ME-123

Model SENSEDGE044UM · Manaras

Monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Monitored, electric edge ME-123, 10kOhms resistor, 2-wire, universal wire outlet location, vertical / horizontal mount, for sectional doors / sliding gates / conveyors / presses, to be used with
• For sectional doors, sliding gates
• Industry Codification: ME-123
• Type: 2-wire, monitored
• UL325 Recognized Component
• Wire Outlet Location: Universal
• Vertical or horizontal mount
• Section: 2'' W x 1.5'' H

Ask about this part

Manaras SENSEDGE045 Sensing edge – Air hose with rubber profile for pneumatic edge to be built in the field

Model SENSEDGE045 · Manaras

Sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Air hose with rubber profile + end cap kit for pneumatic edge to be built in the field
• Materials: Soft rubber
• Section: 0.75'' inside Ø / 1'' outside Ø + 2 edges to be inserted in mounting channel
• Sold per inch, made-to-order lengths, no returns or exchanges
• Mounting channel available
• Replacement parts: order HOSE010, PLUG011, PLUG012

Ask about this part

Manaras SENSEDGE046M Sensing edge – Monitored, electric edge

Model SENSEDGE046M · Manaras

Monitored sensing edge mounted on the door bottom to stop and reverse the door on contact.

• Monitored, electric edge, 10kOhms resistor, 2-wire, E/R/L wire outlet location, to be used with
• For sectional doors
• Industry Codification: Clima-GUARD
• Type: 2-wire, monitored
• UL325 Recognized Component
• Wire Outlet Location: Options available
• Horizontal mount
• Section: 2.0" W x 2.75" H (including loop seal)

Ask about this part

Manaras SENSEMOUNT001A Sensing edge mounting channel – Mounting channel

Model SENSEMOUNT001A · Manaras

Mounting channel that holds an electric sensing edge on the door bottom.

• Mounting channel
• Applications: SENSEDGE044UM, SENSEDGE044U
• Industry Codification: ME-123-C, ME-123-C3, ME-123-C7
• Channel Shape: ''C'', ''L'', flat
• Vertical or horizontal mount
• Dimensions A ("C" shape): 2.0" W x 1.25" H
• Dimensions B ("L" shape): 2.0" W x 1.25" H
• Dimensions C (flat): 3.5" W x 0.25" H

Ask about this part

Manaras SENSEMOUNT003A Sensing edge mounting channel – Mounting channel

Model SENSEMOUNT003A · Manaras

Mounting channel that holds an electric sensing edge on the door bottom.

• Mounting channel
• Applications: SENSEDGE007UM, SENSEDGE007U
• Industry Codification: ME-113-C, ME-113-C3, ME-113-C7
• Channel Shape: ''C'', ''L'', flat
• Vertical or horizontal mount
• Dimensions A ("C" shape): 1.5" W x 1.25" H
• Dimensions B ("L" shape): 1.5" W x 1.25" H
• Dimensions C (flat): 1.5" W x 0.25" H

Ask about this part

Manaras SENSEMOUNT004 Sensing edge mounting channel – C-mounting channel ME-110C (other shapes available $)

Model SENSEMOUNT004 · Manaras

Mounting channel that holds an electric sensing edge on the door bottom.

• C-mounting channel ME-110C (other shapes available $)
• Mounting channel
• Applications: SENSEDGE002
• Industry Codification: ME-110-C
• Channel Shape: ''C''
• Vertical or horizontal mount
• Dimensions: 0.88" W x 0.25" H with 0.31" gap
• Other shapes available upon request

Ask about this part

Manaras SENSLINK002 Wireless edge link – Monitored electric edge wireless link kit

Model SENSLINK002 · Manaras

Wireless transmitter/receiver kit that replaces the coil cord between a monitored electric edge and the operator.

• Monitored electric edge wireless link kit, includes transmitter and receiver, compatible with SENSEDGE007UM/018UM/044UM
• Monitored electric sensing edge wireless link kit
• Provides wireless signal transmitter from a monitored electric sensing edge to the operator
• UL325 Recognized Component
• Nema 4 enclosure (Tx)
• Housing Material: Polycarbonate (Tx), steel (Rx)
• Operation Temperature: -40°C to 60°C (-40°F to 140°F)
• Dimensions (Tx): 4.62'' W x 1.75'' H x 1.75'' D

Ask about this part

Manaras AIRSWITCH017 Air switch – Airwave wireless N4 air switch transmitter and receiver units

Model AIRSWITCH017 · Manaras

Air-pressure switch used in pneumatic sensing edges and treadles.

• Airwave wireless N4 air switch transmitter and receiver units, 2-wire output N.O. contacts

Ask about this part

Manaras COIL001 Coil cord – Coil cord, 2-wire, 18 gauge

Model COIL001 · Manaras

Coiled cord that links a door-mounted edge to the operator while the door travels.

• Coil cord, 2-wire, 18 gauge, 20' extension
• Curly coil cord
• Cables: 2-wire
• 18 gauge
• Max. Cord Extension: 20'
• For 12' max. extension order: COIL014

Ask about this part

Manaras COIL005 Coil cord – Coil cord, 2-wire, 18 gauge

Model COIL005 · Manaras

Coiled cord that links a door-mounted edge to the operator while the door travels.

• Coil cord, 2-wire, 18 gauge, 12' extension

Ask about this part

Manaras COIL014 Coil cord – Curly coil cord

Model COIL014 · Manaras

Coiled cord that links a door-mounted edge to the operator while the door travels.

• Curly coil cord
• Cables: 2-wire
• 18 gauge
• Max. Cord Extension: 12'
• For 20' extension order: COIL001

Ask about this part

Manaras PHOTO067 Non-monitored thru-beam Photo Eye

Model PHOTO067 · Manaras

Non-monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Non-monitored optic sensing edge, Z-flap holder, thru-beam type, N4 Class 2 & IP65 enclosure, 8-30VAC/12-42VDC, 30' range

Ask about this part

Manaras PHOTO067A Monitored thru-beam Photo Eye

Model PHOTO067A · Manaras

Monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Monitored, optic sensing edge, Z-flap holder, thru-beam type, N4 Class 2 & IP65 enclosure, 8-30VAC/12-42VDC, 30' range

Ask about this part

Manaras PHOTO068A Non-monitored thru-beam Photo Eye

Model PHOTO068A · Manaras

Non-monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Non-monitored optic sensing edge, thru-beam type, N4 Class 2 & IP65 enclosure, 8-30VAC/ 12-42VDC, 30' range (50' range available $)

Ask about this part

Manaras PHOTO068C Monitored thru-beam Photo Eye

Model PHOTO068C · Manaras

Monitored thru-beam photo eye that stops and reverses the door when the beam is blocked.

• Monitored, optic sensing edge, thru-beam type, N4 Class 2 & IP65 enclosure, 8-30VAC/12 42VDC, 30' range (50' range available $)

Ask about this part

Manaras SENSEMOUNT001 Sensing edge mounting channel – C-mounting channel ME-123C (other shapes available $)

Model SENSEMOUNT001 · Manaras

Mounting channel that holds an electric sensing edge on the door bottom.

• C-mounting channel ME-123C (other shapes available $)

Ask about this part

Manaras SENSEMOUNT003 Sensing edge mounting channel – C-mounting channel ME-113C (other shapes available $)

Model SENSEMOUNT003 · Manaras

Mounting channel that holds an electric sensing edge on the door bottom.

• C-mounting channel ME-113C (other shapes available $)

Ask about this part

Controls & Control Boards49 items

Manaras BOARD070ER Control board – Replacement control board (no monitoring)

Model BOARD070ER · Manaras

Electronic control board for Manaras operators.

• Replacement control board (no monitoring)

Ask about this part

Manaras BOARD070MR Control board – Replacement control board (monitoring)

Model BOARD070MR · Manaras

Electronic control board for Manaras operators.

• Replacement control board (monitoring)

Ask about this part

Manaras ECB BOARD070E Non-Monitored Electronic Control Board

Model BOARD070E · Manaras

Non-monitored version of the BOARD070 control board. It has the same logic features but no entrapment-device monitoring.

• No monitoring function
• Certified CSA C22.2-247.92; compliant to UL325 5th Ed. prior to the August 2010 revision
• 24 VDC relaying circuit, 40 VA Class II transformer; non-volatile memory
• Delay on reverse, max run timer, mid-stop, timer-to-close
• Replacement board: BOARD070ER

Ask about this part

Manaras ECB BOARD070M Monitored Electronic Control Board

Model BOARD070M · Manaras

Standard Opera electronic control board in its monitored version. It supervises primary external entrapment devices for UL325 compliance and has a built-in radio receiver.

• Monitors primary external entrapment protection devices (photo eyes, edges); ships with monitored photo eyes
• Factory-installed rolling-code radio receiver
• 24 VDC relaying circuit, 40 VA Class II transformer; non-volatile memory
• 1.5 s delay on reverse; programmable max run timer, mid-stop and timer-to-close
• Advance close system, reverse-wiring detection, door-lock sensor
• Operating modes C2, B2, D1, E2, T or TS
• 2 A fused 24 VAC/24 VDC accessory output
• MIC001 Wi-Fi kit is supplied with a BOARD070M

Ask about this part

Manaras KEY006 Replacement key – Replacement key for STATION079/080

Model KEY006 · Manaras

Replacement key for Manaras key switches and stations.

• Replacement key for STATION079/080, KEYSWITCH050, set of two
• Replacement keys (2x)
• Compatible with: STATION079, STATION080, KEYSWITCH050

Ask about this part

Manaras KEYSWITCH006 Key switch – Replacement cylinder (for KEYSWITCH034)

Model KEYSWITCH006 · Manaras

Keyed switch for restricting door operation to key holders.

• Replacement cylinder (for KEYSWITCH034)
• Replacement cylinder
• Includes: Replacement cylinder, 2 keys
• Compatible with: KEYSWITCH034

Ask about this part

Manaras KEYSWITCH010 Key switch – Single key, open / close

Model KEYSWITCH010 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, open / close, Nema 1 encl, interior, flush mount, center return, tamper-proof
• Flush mount
• Function: Open / close / stop with automatic return to stop position
• 2 SPDT NO and NC (open / close) contacts
• Tamper-proof
• Interior use
• Nema 1 enclosure
• Materials: Steel enclosure

Ask about this part

Manaras KEYSWITCH015 Key switch – Single key, open / close

Model KEYSWITCH015 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, open / close, exterior, cast iron encl, surface mount, center return, tamper-proof
• Surface mount
• Function: Open / close / stop with automatic return to stop position
• 2 SPDT NO and NC (open / close) contacts
• Tamper-proof
• Interior / exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure and face plate

Ask about this part

Manaras KEYSWITCH017 Key switch – Single key, 2-positions on / off

Model KEYSWITCH017 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, 2-positions on / off, exterior, cast iron encl, surface mount, center return, tamper-proof
• Surface mount
• Locking feature
• 1 SPDT NO and NC contact
• 2 stable positions
• Interior / exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure and face plate

Ask about this part

Manaras KEYSWITCH019 Key switch – Single key, open / close with stop button

Model KEYSWITCH019 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, open / close with stop button, exterior, aluminum die-cast encl, surface mount
• Surface mount
• Function: Open / close / stop with automatic return to stop position + stop button
• 2 SPDT NO and NC (open / close) contacts, 1 NC contact (stop)
• Tamper-proof
• Interior / exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure and face plate

Ask about this part

Manaras KEYSWITCH023 Key switch – Replacement switch

Model KEYSWITCH023 · Manaras

Keyed switch for restricting door operation to key holders.

• Replacement switch, SPST momentary N.O. contact, 6A at 125VAC, 3A at 250VAC (for KEYSWITCH034)
• Replacement switch
• 1 SPST momentary NO contact
• Compatible with: KEYSWITCH034

Ask about this part

Manaras KEYSWITCH034 Key switch – Single key, open / close

Model KEYSWITCH034 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, open / close, N4 encl, 1 momentary N.O. contact, exterior, aluminum die-cast encl, wall, post, pipe or pedestal mount
• Wall, surface or pedestal mount
• Locking feature
• 1 SPDT NO contact
• Tamper-proof
• Interior / exterior use
• Materials: Aluminum die-cast
• Dimensions: 2.75'' W x 4.5'' H x 2'' D (without key)

Ask about this part

Manaras KEYSWITCH041 Key switch – Replacement switch

Model KEYSWITCH041 · Manaras

Keyed switch for restricting door operation to key holders.

• Replacement switch, SPDT momentary N.C. contact (for KEYSWITCH034)
• Replacement switch
• 1 SPST momentary NC contact
• Compatible with: KEYSWITCH034

Ask about this part

Manaras KEYSWITCH050 Key switch – Single key, 2 positions on / off

Model KEYSWITCH050 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, 2 positions on / off, N4/12-4X encl, 1 N.O. contact, surface mount
• Surface mount
• Locking feature
• 1 SPDT NO contact
• 2 stable positions
• Interior / exterior use
• Nema 4/12 and 4X enclosure
• Materials: Polycarbonate

Ask about this part

Manaras KEYSWITCH051 Key switch – Single key, hazardous location enclosure

Model KEYSWITCH051 · Manaras

Keyed switch for restricting door operation to key holders.

• Single key, hazardous location enclosure, 1 N.O. contact and 1 N.C. contact, surface mount, key removable in both positions
• Surface mount
• Locking feature
• 1 NO and 1 NC contacts
• Class I, Div. 1 and 2, Groups C, D Class I, Zones 1 and 2, Groups IIB, IIA Class II, Div. 1 and 2, Groups E, F, G Class III, Nema 7 (C, D) / 9 (E, F, G) for classified hazardous locations
• CSA certified / UL listed
• Materials: Aluminum die-cast
• Operation Temperature: -50°C to 40°C (-58°F to 104°F)

Ask about this part

Manaras MODKIT027B1 Auxiliary output module – Universal auxiliary output module

Model MODKIT027B1 · Manaras

Add-on output module that lets the control board drive lights or other devices.

• Universal auxiliary output module kit for electronically controlled operators
• Enables the connection of audible and visible warning devices
• 2 relay outputs
• Applications: Opera, Manaras, Silencio (MODKIT027B1) / Rapido ® (MODKIT027D1)
• Power Supply: 24 V DC
• Dimensions: 2'' L x 2'' H x 1'' D
• ROHS compliant
• Includes: Module, supports

Ask about this part

Manaras MODKIT027D1 Auxiliary output module – Universal auxiliary output module

Model MODKIT027D1 · Manaras

Add-on output module that lets the control board drive lights or other devices.

• Universal auxiliary output module kit for electronically controlled operators
• Enables the connection of audible and visible warning devices
• 2 relay outputs
• Applications: Opera, Manaras, Silencio (MODKIT027B1) / Rapido ® (MODKIT027D1)
• Power Supply: 24 V DC
• Dimensions: 2'' L x 2'' H x 1'' D
• ROHS compliant
• Includes: Module, supports

Ask about this part

Manaras MODKIT168A Auxiliary output module

Model MODKIT168A · Manaras

Add-on output module that lets the control board drive lights or other devices.

• Auxiliary output module, enables connection of 24VDC, LED light strips
• Auxiliary auxiliary output module kit for electronically controlled operators
• Enables the connection of 24 V DC LED light strips
• 2 relay outputs to separately manage 2 different ® colors
• Power Supply: 24 V DC
• Dimensions: 2'' W x 2'' H x 1'' D
• Dimensions (rectifier): 1.125" W x 1.125" H x 0.79" D
• ROHS compliant

Ask about this part

Manaras Nema 1 Separate Control Panel (MOD 022)

Model MOD 022 · Manaras

Wall-mounted Nema 1 panel that moves the operator's control circuit to a remote location, leaving only limits, brake actuator and a terminal strip at the operator.

• Steel enclosure 16" x 12" x 6", heat-fused polyester finish
• Hinged cover with one 1/4-turn latch; colour-coded wiring
• Available with electronic control board option
• For Opera-J/HJ/H/SH/GH, MGH, OTH, OTBH, MGT, OSL, MGSL
• Certifications: CSA C22.2/0, 0.4, 14, 94 and UL 50, 508, 508A

Ask about this part

Manaras Nema 4 Separate Control Panel (MOD 024)

Model MOD 024 · Manaras

Nema 4 remote control panel for wet or harsh locations. Options include rotary fused disconnect, cycle counter, window kit and face-mounted push-buttons.

• Steel enclosure 20" x 16" x 8", heat-fused polyester finish
• Hinged cover with two 1/4-turn latches
• Single- or 3-phase; electronic control board option
• For Opera-J/H/SH/GH, MGH, OTH, OTBH, MGT, OSL, MGSL
• Nema 4/12, 4X and 7/9 versions and custom CSA-marked panels (ECB, PLC, VFD) on request

Ask about this part

Manaras PULLCORD001 Pull switch – Pull-switch control

Model PULLCORD001 · Manaras

Ceiling pull-cord switch for operating the door from a vehicle or the floor.

• Pull-switch control, exterior, cast iron encl, SPDT preconfigured to use N.O. contact
• Surface mount
• Pull switch control
• Exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure
• 1 SPST momentary NO contact
• Dimensions: 4'' W x 3.88'' H x 3.75'' D

Ask about this part

Manaras PULLCORD002 Pull switch – Pull-switch control

Model PULLCORD002 · Manaras

Ceiling pull-cord switch for operating the door from a vehicle or the floor.

• Pull-switch control, exterior, cast iron encl, DPDT preconfigured to use N.O. contacts
• Surface mount
• Pull switch control
• Exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure
• 2 SPST momentary NO contacts
• Dimensions: 4'' W x 3.88'' H x 3.75'' D

Ask about this part

Manaras PULLCORD003 Pull switch – Pull-switch control

Model PULLCORD003 · Manaras

Ceiling pull-cord switch for operating the door from a vehicle or the floor.

• Pull-switch control, swivel-type, exterior, cast iron encl, SPDT preconfigured to use N.O. contact
• Universal surface mount
• Pull switch control, swivel-type
• Exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure
• 1 SPST momentary NO and NC contact
• Dimensions: 4.25'' W x 6'' H x 4.5'' D

Ask about this part

Manaras PULLCORD007 Pull switch – Pull-switch control

Model PULLCORD007 · Manaras

Ceiling pull-cord switch for operating the door from a vehicle or the floor.

• Pull-switch control, swivel-type, exterior, heated, SPST contact, universal mount
• Universal surface mount
• Pull switch control, swivel type, heated
• Exterior use
• Nema 3R, 4, 12 enclosure
• Materials: Aluminum die-cast enclosure
• 1 SPST momentary NO and NC contact
• Heating Element: 24 V AC 15 W

Ask about this part

Manaras STATION001 Push-button control station – Surface-mount, one button

Model STATION001 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one button, Nema 1 enclosure, 1 N.O. contact
• Surface mount
• 1-button: Open or open / close command
• 1 NO contact
• Nema 1 enclosure
• Interior use
• Materials: Steel
• Dimensions: 2.38'' W x 2.78'' H x 1.81''

Ask about this part

Manaras STATION010 Push-button control station – Surface-mount, two button

Model STATION010 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, two button, Nema 1 enclosure, 2 N.O. contacts
• Surface mount
• 2-button: Open only and close only command
• 2 NO contacts
• Nema 1 enclosure
• Interior use
• Materials: Steel
• Dimensions: 2.38'' W x 4.06'' H x 1.81'' D

Ask about this part

Manaras STATION020 Push-button control station – Surface-mount, three button

Model STATION020 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button, Nema 1 enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Nema 1 enclosure
• Interior use
• Materials: Steel
• Dimensions: 2.38'' W x 5'' H x 1.81'' D

Ask about this part

Manaras STATION049 Push-button control station – Surface-mount, three button

Model STATION049 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button, CSA certified/UL listed classified hazardous locations (2), 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Class I, Div. 1 and 2, Groups C, D Class I, Zones 1 and 2, Groups IIB, IIA Class II, Div. 1 and 2, Groups E, F, G Class III, Nema 7 (C, D) / 9 (E, F, G) for classified hazardous locations
• CSA certified / UL listed
• Materials: Aluminum die-cast
• Operation Temperature: -50°C to 40°C (-58°F to 104°F)

Ask about this part

Manaras STATION050 Push-button control station – Surface-mount, three button with key lock-out

Model STATION050 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button with key lock-out, CSA certified/UL listed classified hazardous locations (2), 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command, key lock-out
• 2 NO and 1 NC (stop) contacts, 1 NO and 1 NC contacts (key)
• Class I, Div. 1 and 2, Groups C, D Class I, Zones 1 and 2, Groups IIB, IIA Class II, Div. 1 and 2, Groups E, F, G Class III, Nema 7 (C, D) / 9 (E, F, G) for classified hazardous locations
• CSA certified / UL listed
• Materials: Aluminum die-cast
• Operation Temperature: -50°C to 40°C (-58°F to 104°F)

Ask about this part

Manaras STATION056 Push-button control station – Surface-mount, three button

Model STATION056 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button, Nema 3R, 4,12 enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Nema 3R, 4, 12 enclosure
• Interior / exterior use
• Materials: Aluminum die-cast
• Dimensions: 4.2" W x 4.4'' H x 3.25'' D

Ask about this part

Manaras STATION057 Push-button control station – Surface-mount, three button with key lock-out

Model STATION057 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button with key lock-out, Nema 3R, 4,13 enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command, key lock-out
• 2 NO and 1 NC (stop) contacts, NC contact for the key (in series with the NC contact for stop)
• Nema 3R, 4, 12 enclosure
• Interior / exterior use
• Materials: Aluminum die-cast
• Dimensions: 4.2'' W x 4.4'' H x 3.25'' D (without key)

Ask about this part

Manaras STATION070 Push-button control station – Surface-mount, one mushroom head (green)

Model STATION070 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one mushroom head (green), Nema 4/12 & Nema 4X enclosure, spring return, 1 N.O. contact
• Surface mount
• 1-button: Open only or open / close command, mushroom head (green, 40mm) with spring return
• 1 NO contact
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Ask about this part

Manaras STATION078 Push-button control station – Surface-mount, three button

Model STATION078 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button, Nema 4/12 & Nema 4X enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Dimensions: 2.68'' W x 5.35'' H x 2.44'' D

Ask about this part

Manaras STATION079 Push-button control station – Surface-mount, three button with key lock-out

Model STATION079 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button with key lock-out, Nema 4/12 & Nema 4X enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command, key lock-out
• 2 NO and 1 NC (stop) contacts, 1 NO contact (key)
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Ask about this part

Manaras STATION080 Push-button control station – Surface-mount, three button with key lock-out and pilot light

Model STATION080 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, three button with key lock-out and pilot light, Nema 4/12 & Nema 4X enclosure, 2 N.O. contacts and 1 N.C. contact for stop
• Surface mount
• 3-button: Open / close / stop command, key lock-out and red pilot light
• 2 NO and 1 NC (stop) contacts, 1 NO contact (key)
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Ask about this part

Manaras STATION081 Push-button control station – Surface-mount, one button

Model STATION081 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one button, Nema 4/12 & Nema 4X enclosure, 1 N.O. contact
• Surface mount
• 1-button: Open or open / close command
• 1 NO contact
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate D ■ Dimensions: 2.68'' W x 2.68'' H x 2.44'' D
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Ask about this part

Manaras STATION082 Push-button control station – Surface-mount, two button

Model STATION082 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, two button, Nema 4/12 & Nema 4X enclosure, 2 N.O. contacts
• Surface mount
• 2-button: Open only and close only command
• 2 NO contacts
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Dimensions: 2.68'' W x 4.17'' H x 2.44'' D

Ask about this part

Manaras STATION085A Push-button control station – Surface-mount, one mushroom head (red) emergency-stop

Model STATION085A · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one mushroom head (red) emergency-stop, twist and lock, Nema 4/12 & Nema 4X enclosure,1 N.C. contact
• Surface mount
• 1-button: Emergency-stop, mushroom head (red, 40mm), push / twist to unlock
• 1 NC contact
• Nema 4/12 and 4X enclosure
• Interior / exterior use
• Materials: Polycarbonate
• Operation Temperature: -25°C to 70°C (-13°F to 158°F)

Ask about this part

Manaras STATION086 Push-button control station – Flush-mount, three button

Model STATION086 · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Flush-mount, three button, Nema 1 enclosure, back box with bracket, 2 N.O. contacts and 1 N.C. contact for stop
• Flush mount
• 3-button: Open / close / stop command
• 2 NO and 1 NC (stop) contacts
• Nema 1 enclosure
• Interior use
• Materials: Steel (enclosure), aluminum (face plate)
• Dimensions (faceplate): 2.75'' W x 4.5'' H x 0.38'' D

Ask about this part

Manaras BOARD065 Control board – Replacement universal board kit BOARD060 & prev

Model BOARD065 · Manaras

Electronic control board for Manaras operators.

• Replacement universal board kit BOARD060 & prev

Ask about this part

Manaras BOARD066R Control board – Replacement universal power board BOARD070 & prev

Model BOARD066R · Manaras

Electronic control board for Manaras operators.

• Replacement universal power board BOARD070 & prev

Ask about this part

Manaras BOARD070MRSH12R Control board – Replacement control board RSH/RMSJ/RTBH 12V

Model BOARD070MRSH12R · Manaras

Electronic control board for Manaras operators.

• Replacement control board RSH/RMSJ/RTBH 12V

Ask about this part

Manaras BOARD070MRSH24R Control board – Replacement control board RSH/RMSJ/RTBH 24V

Model BOARD070MRSH24R · Manaras

Electronic control board for Manaras operators.

• Replacement control board RSH/RMSJ/RTBH 24V

Ask about this part

Manaras BOARD070MRVH12R Control board – Replacement control board RVH 12V

Model BOARD070MRVH12R · Manaras

Electronic control board for Manaras operators.

• Replacement control board RVH 12V

Ask about this part

Manaras BOARD070MRVH24R Control board – Replacement control board RVH 24V

Model BOARD070MRVH24R · Manaras

Electronic control board for Manaras operators.

• Replacement control board RVH 24V

Ask about this part

Manaras BOARD075E Control board – Replacement board kit (no monitoring)

Model BOARD075E · Manaras

Electronic control board for Manaras operators.

• Replacement board kit (no monitoring)

Ask about this part

Manaras BOARD075M Control board – Replacement board kit (monitoring)

Model BOARD075M · Manaras

Electronic control board for Manaras operators.

• Replacement board kit (monitoring)

Ask about this part

Manaras MODKIT027 Auxiliary output module – Universal auxiliary output module B060

Model MODKIT027 · Manaras

Add-on output module that lets the control board drive lights or other devices.

• Universal auxiliary output module B060

Ask about this part

Manaras STATION085B Push-button control station – Surface-mount, one mushroom head (red) emergency-stop

Model STATION085B · Manaras

Push-button control station for wall-mounted open/close/stop control.

• Surface-mount, one mushroom head (red) emergency-stop,push / pull, Nema 4/12 & Nema 4X enclosure,1 N.C. contact

Ask about this part
