Short answer. LiftMaster 87802 troubleshooting starts with the flash code on the UP and DOWN arrows and a hand test of the door. The 87802 uses the same code chart as its belt drive sibling, so the meaning of each blink is the same. Chain tension and the sensors cover most faults, with the travel module close behind. Unplug it before any hands on work.

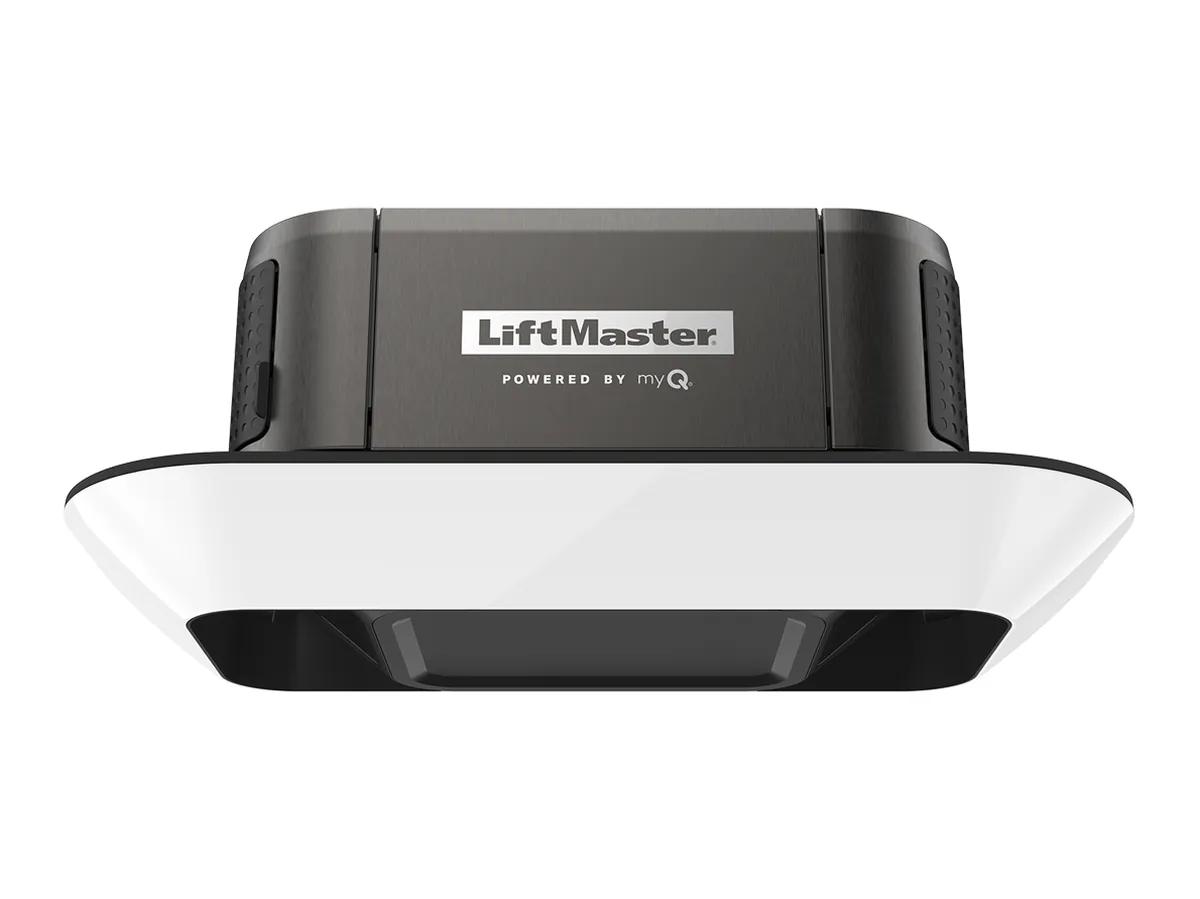

What the 87802 is built from
For LiftMaster 87802 troubleshooting it helps to know the hardware. The product guide lists a 12V DC motor at 53 RPM on a steel chassis. The rail is an I-beam. Gear reduction is 63:1 down to a 10 tooth sprocket. LiftMaster rates it for heavy and carriage house doors up to 750 lb. In the box you get the 880LMW panel and an 893MAX remote, plus a 485LM battery. It can also run the 841LM automatic lock.

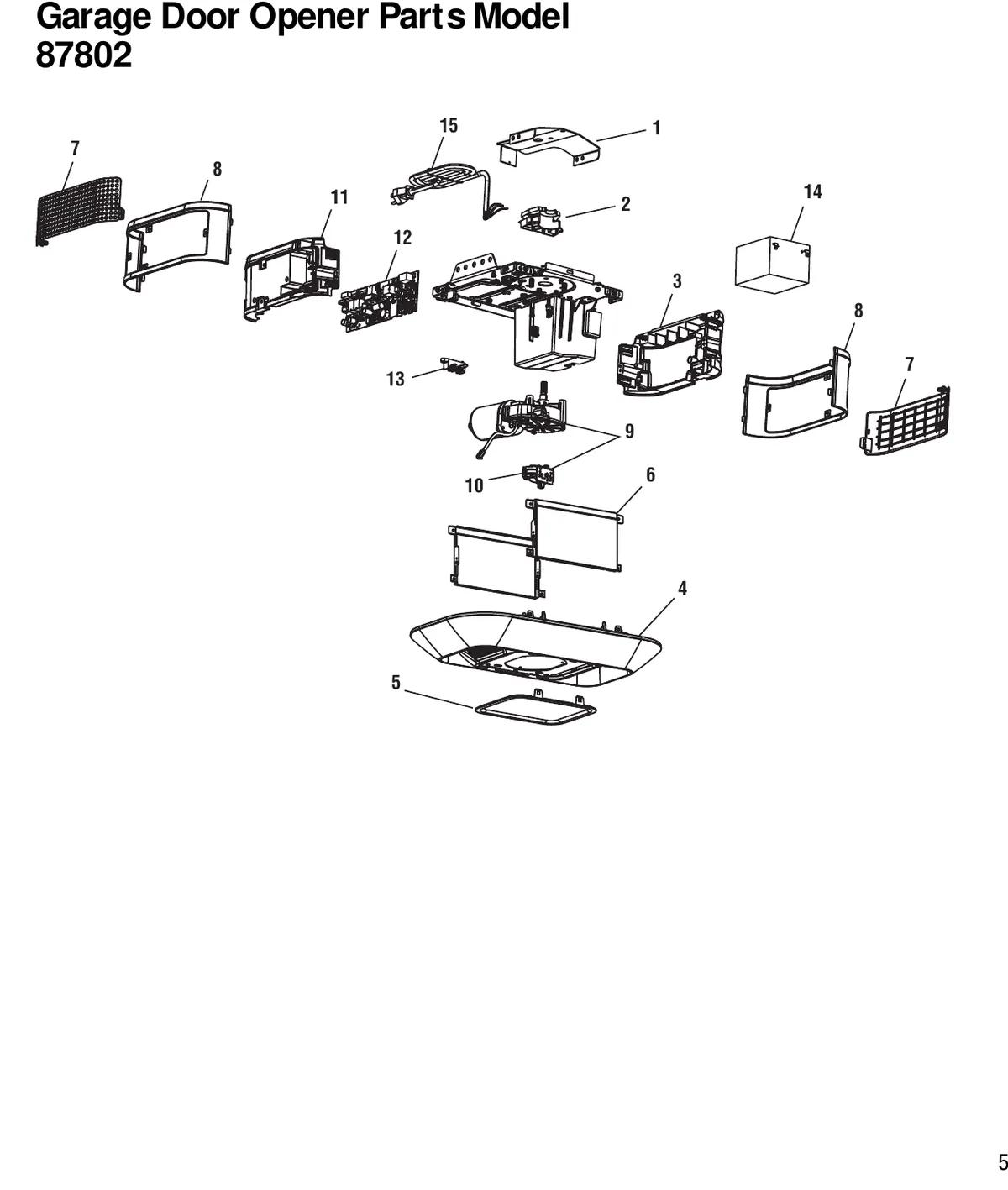

The manual is 114-5898-000, shared with the 87504-267. The 87802 has no camera. In the parts diagram it gets a chassis support bracket and a chain spreader that the belt unit does not have.
LiftMaster 87802 troubleshooting starts with a hand test
Nearly every fix in the 87802 code chart opens with the same line. Manually open and close the door, then check for binding or obstructions like a broken spring or a door lock. We do that on every call. Close the door, pull the red release handle, then lift the door by hand. A balanced door stays put around halfway. If it drops or shoots up, the springs are off. That is technician work because the springs and cables are under extreme tension.
A chain drive with a heavy door will tell you about a bad spring fast. The opener strains, then throws a 4 and 1 to 4 code and reverses.
Flash codes in short
Count the UP arrow flashes, then the DOWN arrow flashes. On the 87802 the ones we meet are these.
- 1 and 1 or 1 and 2 means a sensor wire is open or shorted.
- 1 and 4 or 4 and 6 means the photo eyes are out of line or something passed through the beam.
- 1 and 5 means the door barely moved. A single click points at the board and a hum points at the motor.
- 3 and 2 or 4 and 5 means the travel module.
- 2 and 1 to 5 means no movement or sound at all, a logic board.
The complete table sits on our LiftMaster flash code page.
Chain noise and slack
The manual has you wipe the old grease off the rail every two to three years and lay a thin coat of white lithium grease on the top and underside where the trolley slides. It says the opener itself needs no other lubrication, and not to grease the door tracks. A dry rail on a chain unit makes the trolley chatter and reads as an opener problem when it is not.
The chain tensioner is part 041B4103-1 and the trolley threaded shaft is K109B0018. A slapping chain on a heavy door is worth a visit. Tension and the door arm need setting together. Chain lengths cover 7 through 14 foot doors, and 041D3484 is the 7 foot one.
Lights and the battery
If the LED ring stays dark, the manual says check the wiring between both light modules and the connector, then replace the module if it still does not light. A dark ring during a power cut is normal, because the lights do not run on battery. On battery the opener runs slower and beeps about every 2 seconds. The automatic lock, if fitted, unlocks when the door opens on battery and stays off until power is back.
A red battery LED means the battery will not hold a charge any more. Orange just means it is running on the battery. Details are in our 485LM battery guide.
Parts from the 87802 manual
The logic board is 050DCTBLKFMC and the travel module is 041D8071-4. The motor comes with its travel module as 041-0236-000. The light pod kit without camera is 041-0187-000, and the battery is the 485LM. Rails come as one piece 7, 8 and 10 foot (3707CH, 3708CH, 3710CH) and 12 and 14 foot (3712RV, 3714RV).
Our view, plainly, is that the 87802 is the right ceiling opener for a heavy wood door in a Richmond garage, and the chain noise is a fair trade for that. If you want quiet, look at the wall mount units instead.
