Short answer. A LiftMaster safety sensor pair has an amber sending eye and a green receiving eye. Both lights must glow steady before the opener will close. A blinking green light means the beam is blocked or the eyes are out of line, and a dark light means no power or a broken wire. To fix it, loosen the wing nut and aim the eye until both lights glow steady. Keep the beam no higher than 6 inches.
How the LiftMaster safety sensor pair works
LiftMaster calls the photo eyes The Protector System. The sending eye has an amber LED and the receiving eye has a green LED, and the receiver has a sticker on the back. The sender throws an invisible beam across the door opening. If anything breaks it while the door is closing, the door reverses to full open. If the door is already open and the beam is blocked, it will not close from a remote.
The eyes do nothing on the way up. They only matter on the way down.
Reading the two lights
| What you see | What it means | First check |
|---|---|---|
| Both steady | Powered and aligned | Nothing, look elsewhere |
| Green blinking | Beam blocked or eyes out of line | Clear the path, then realign |
| Amber off | No power to the sender | Opener power, then the sensor wire |
| Green off | Receiver not powered or way off target | Wire for a short or break, then alignment |
The 98032 manual adds a wiring check. White wires go to the white terminal and the white with black stripe goes to the grey terminal. Reversed, you get the 1 and 2 flash code.
Aligning them

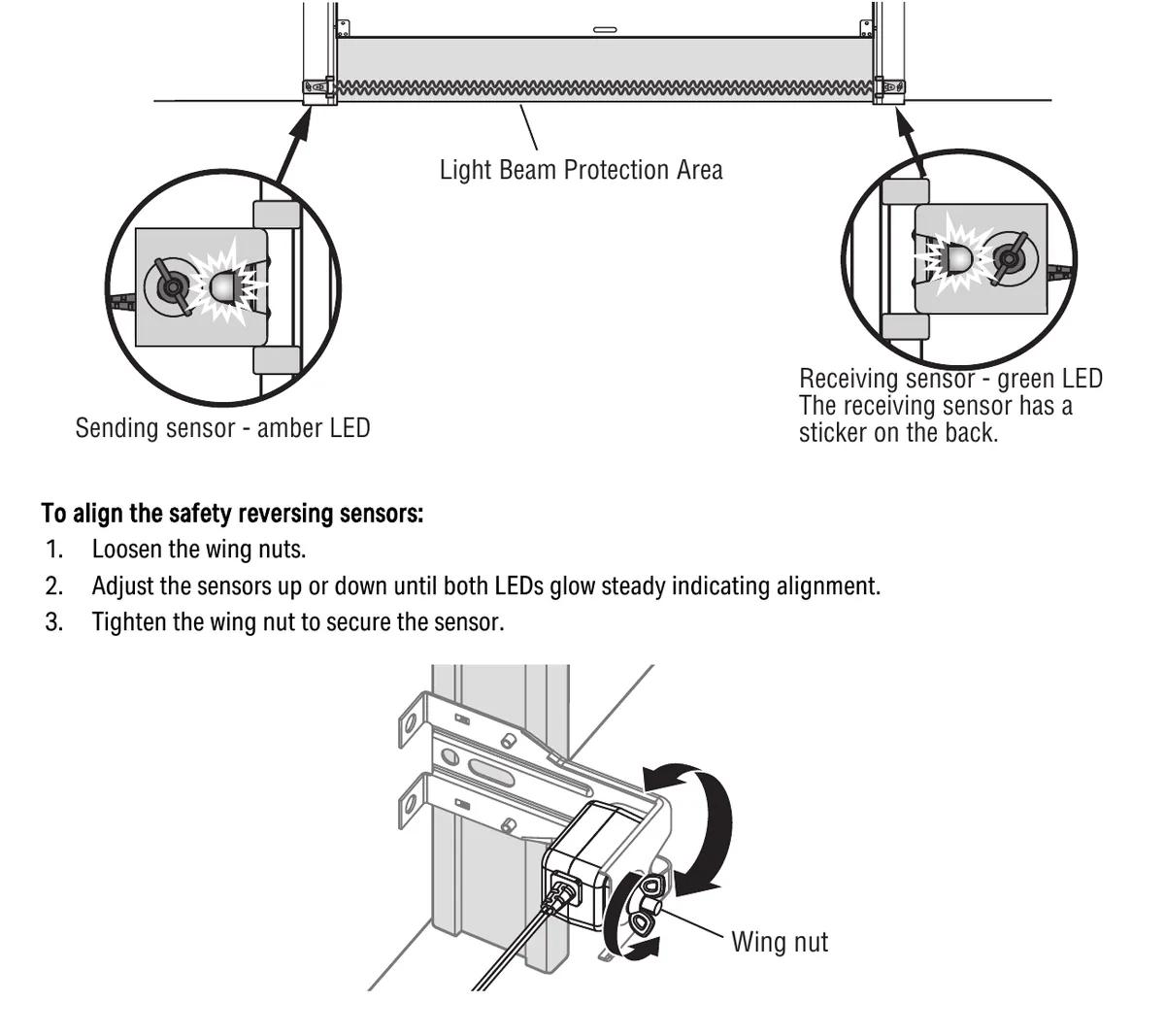

Loosen the wing nut on one eye. Tilt it up or down slowly until both LEDs glow steady. Tighten the wing nut. Do the same on the other side only if you need to.
The manuals list three things to confirm. Both eyes are inside the garage, one each side of the door. They face each other with the lenses lined up. They sit at the same height, no higher than 6 inches off the floor.
Low sun and other Richmond problems
Low winter sun across the driveway can blind the receiving eye. LiftMaster's answer is to swap the two eyes so the green receiver sits on the side away from the sun. We see this a lot on west facing garages in the afternoon.
Cobwebs cause the same blink. So does a hockey bag left by the track. So does a door bracket or weatherstrip hanging into the beam. The manual says to make sure nothing is hanging or mounted on the door that would cross the beam while it closes.
Replacing a broken eye

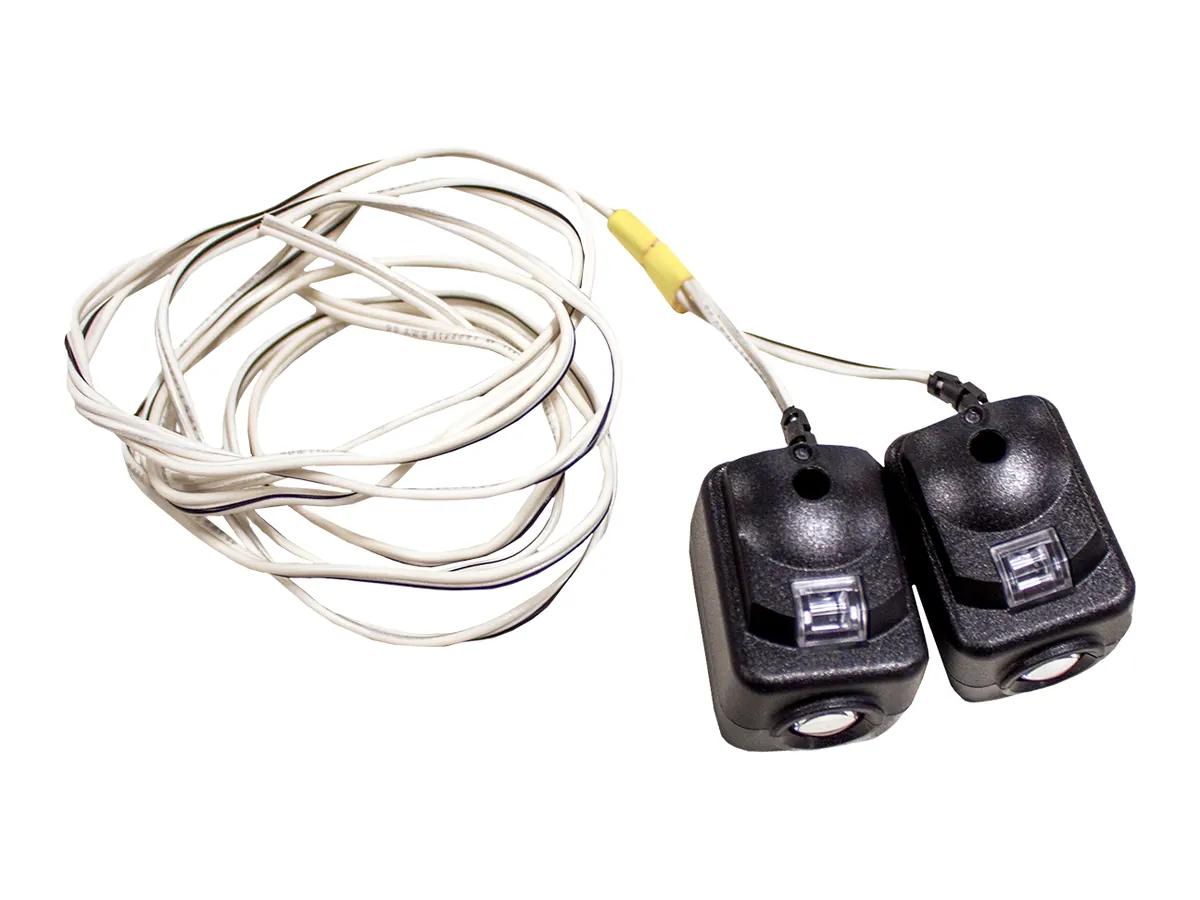

The current replacement kit is 041-0136, with 041-0155 as the bracket. Its instructions start with disconnecting power. The brackets clip onto the door track, or mount to the wall or floor if the track will not hold them. Extension brackets 041A5281-1 add clearance. New wire joins the old one colour to colour with the crimp connectors in the kit, and once crimped they cannot be reused.
After any sensor work, run the test. With the door open, put a 2x4 flat on the floor in the middle of the opening and close the door. It must reverse on contact. If it closes on the board, call a technician.
Here is our blunt view. Never tape the eyes together or mount them up high to make a problem go away. That kills the only thing stopping a door from landing on a kid.
Commercial eyes are a different part
Commercial operators use monitored eyes such as the LMTBUL, and light curtains on some doors. They do not swap onto a house opener. That side of the trade is on our commercial operators page and the LJ8900W guide.
