Short answer. The LiftMaster LJ8900W is a light duty commercial jackshaft operator for sectional doors up to 14 ft high, 18 ft wide and 180 square feet. It is rated for up to 10 cycles an hour and fewer than 25 a day. It needs constant pressure to close or a monitored entrapment device, and it blinks flash codes on its UP and DOWN arrows much like a home opener.
Where the LiftMaster LJ8900W fits

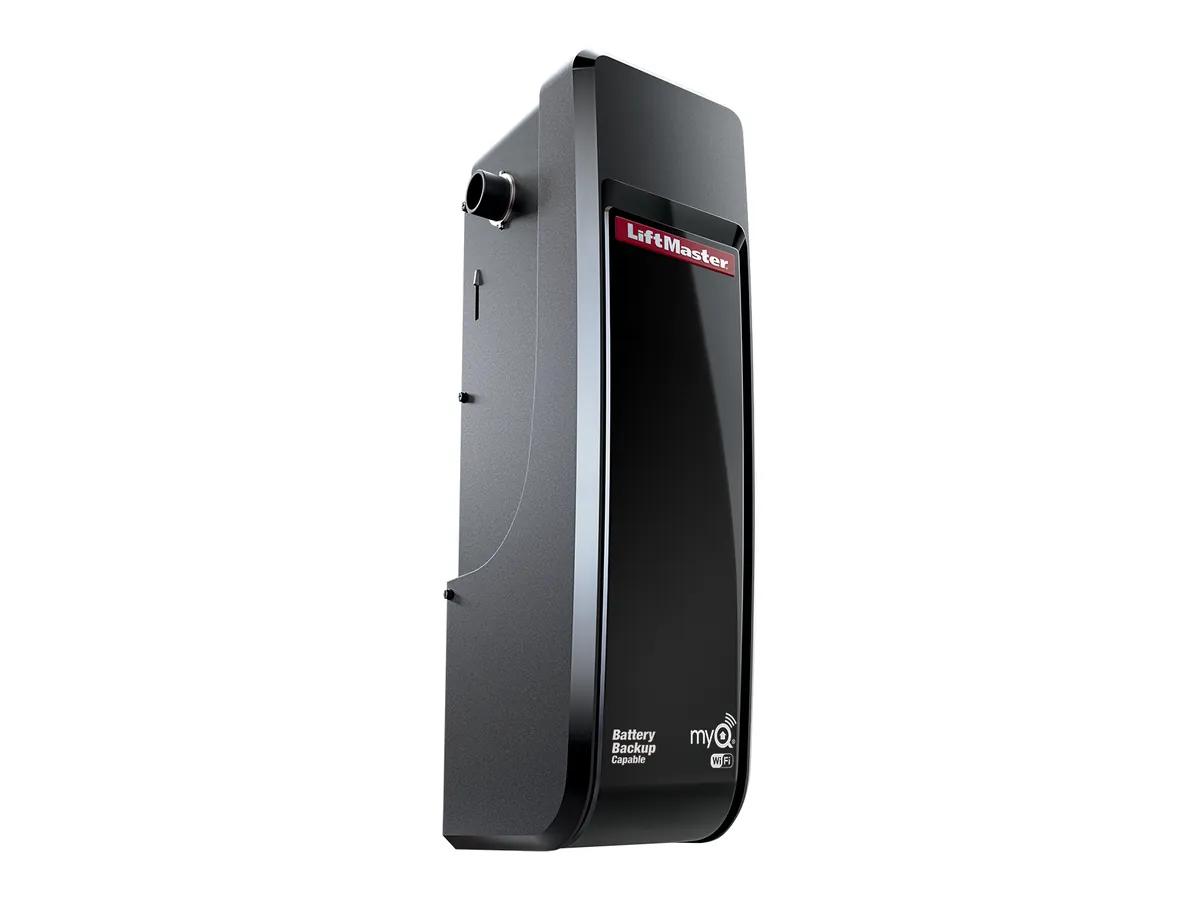

The LiftMaster LJ8900W data sheet calls it a light duty commercial jackshaft door operator for smaller, lighter commercial sectional doors. It mounts on either side of the door and runs on 120VAC with a heavy duty 12VDC drive. Limits are electronic, and Wi-Fi for myQ is built in. Its radio is Security+ 2.0 and works back to Security+ 315 or 390 MHz remotes. Speed is 7.5 to 8.5 inches a second.
The duty limit matters
Light duty means up to 10 cycles an hour and fewer than 25 a day. The manual repeats it as a warning. Do not exceed 10 complete cycles per hour. A busy loading door will cook this operator. For anything heavier we look at a full commercial unit, as explained on our LiftMaster commercial operators page.
Door limits from the data sheet are 14 ft high, 18 ft wide and 180 square feet.
Entrapment protection rules

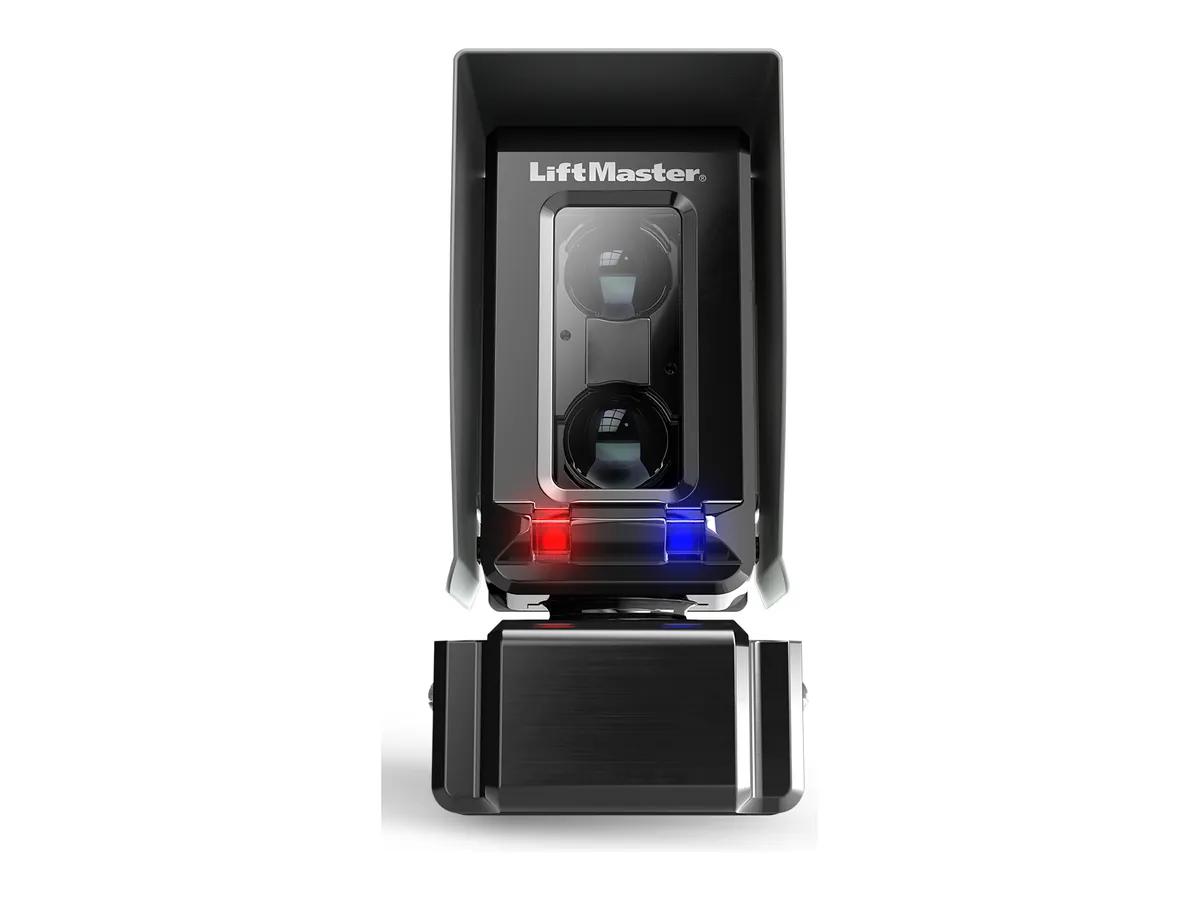

This operator must either use constant pressure to close or have an external monitored entrapment protection device, and LiftMaster says to use only the monitored devices listed in the operator manual to meet UL 325. The manual names the LC36M and LC36M41 monitored light curtains as an option in place of the photo eyes. The product guide also lists the LC-36A light curtain, with 36 inches of coverage indoors.
Codes and common faults
The UP and DOWN arrows on the operator flash the codes, and the first block reads like the home openers. A 1 and 1 means the sensors are not connected or a wire is cut. A 1 and 4 means the sensors are out of line. A 1 and 5 means the door moved 6 to 8 inches and stopped, or the operator clicked or hummed without moving. Each of those starts with a hand test of the door for binding or a broken spring.
The troubleshooting pages also cover lost limits. A collar that was not tightened is the cause they give, so tighten it and reprogram the limits. Battery backup is optional with the 485LM, and the 841LM lock and 480LMB alternate mounting kit are listed accessories.
Our blunt view on it. The LJ8900W is a good operator on the right door, and the wrong operator on any door that cycles all day.
